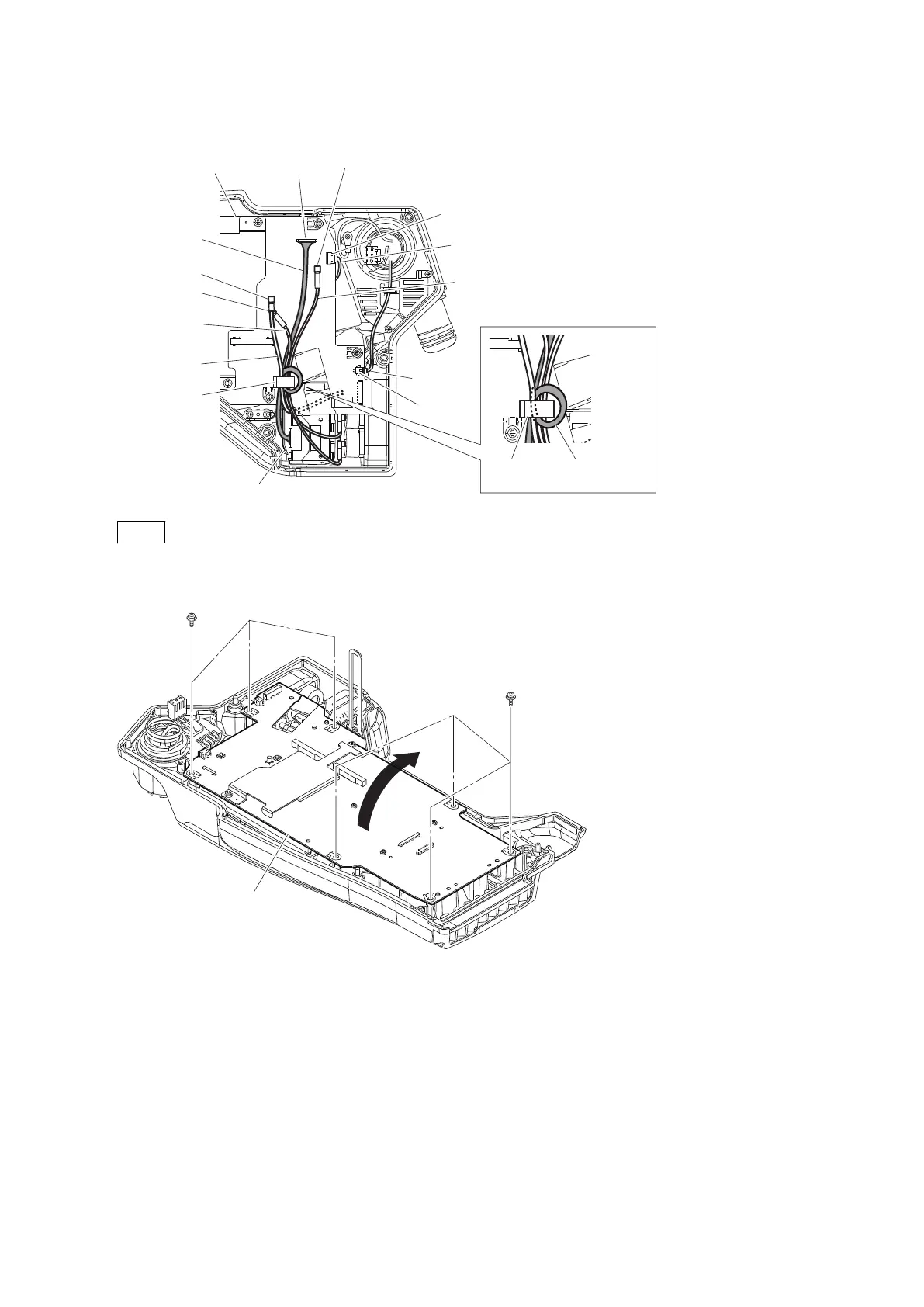

6. Disconnect the two harnesses from the two connectors (CN004, CN1001) on the MEM-147 board.
CN501
SDI1
CN004
PROMPTER2
SDI2
CN1001
Harness
Harness
Coaxial cable
(Cable：Red)
Coaxial cable (Cable：Yellow)
Coaxial cable
(Cable：Black)
Clamper
Clamper
CN-3434 board
MEM-147 board
Fine-wire
coaxial cables
Fine-wire
coaxial cables
Note
When connecting the coaxial cables, connect connectors correctly.
7. Remove the seven screws, and open the MEM-147 board in the direction of the arrow.
PSW3 x 6
PSW3 x 6
MEM-147 board
