4-5. Front Assembly
Preparation
1. Remove the inside panel assembly. (Refer to“4-2. Inside Panel Assembly”)
2. Remove the outside panel assembly. (Refer to“4-3-1. Outside Panel Assembly”)
Procedure

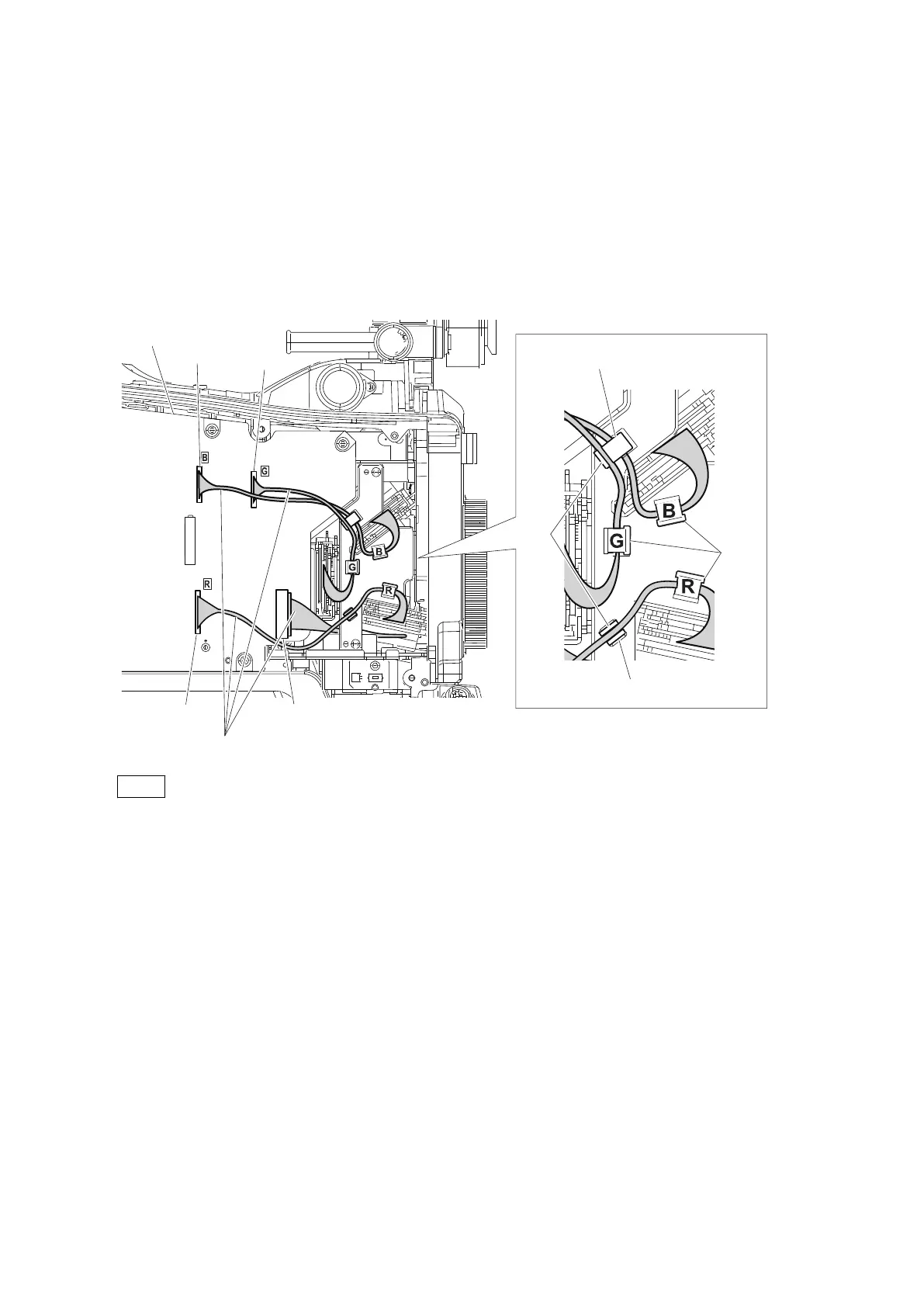

1. Disconnect the four fine-wire coaxial cables from the four connectors (CN200, CN201, CN202, CN300) on the
DPR-370 board.
DPR-370 board
Fine-wire coaxial cables
CN202
CN201
CN200 CN300
Hooks
Grooves
Hook
Hook
Note
When installing the front assembly, arrange the fine-wire coaxial cables as shown in the figure.
2. Loosen the four screws with stopper, and draw the front assembly.
HDC4300
4-17
