4-7-3. SW-1525 Board
Preparation
1. Remove the front assembly. (Refer to“4-5. Front Assembly” on page 4-17 )
2. Remove the handle assembly. (Refer to“4-7-2. VF Connector (CN-3422 Board)”)
Procedure
1. Disconnect the harness from the connector (CN2) on the SW-1525 board.
2. Remove the screw, and detach the SW-1525 bracket.
3. Remove the two screws, and detach the SW-1525 board.

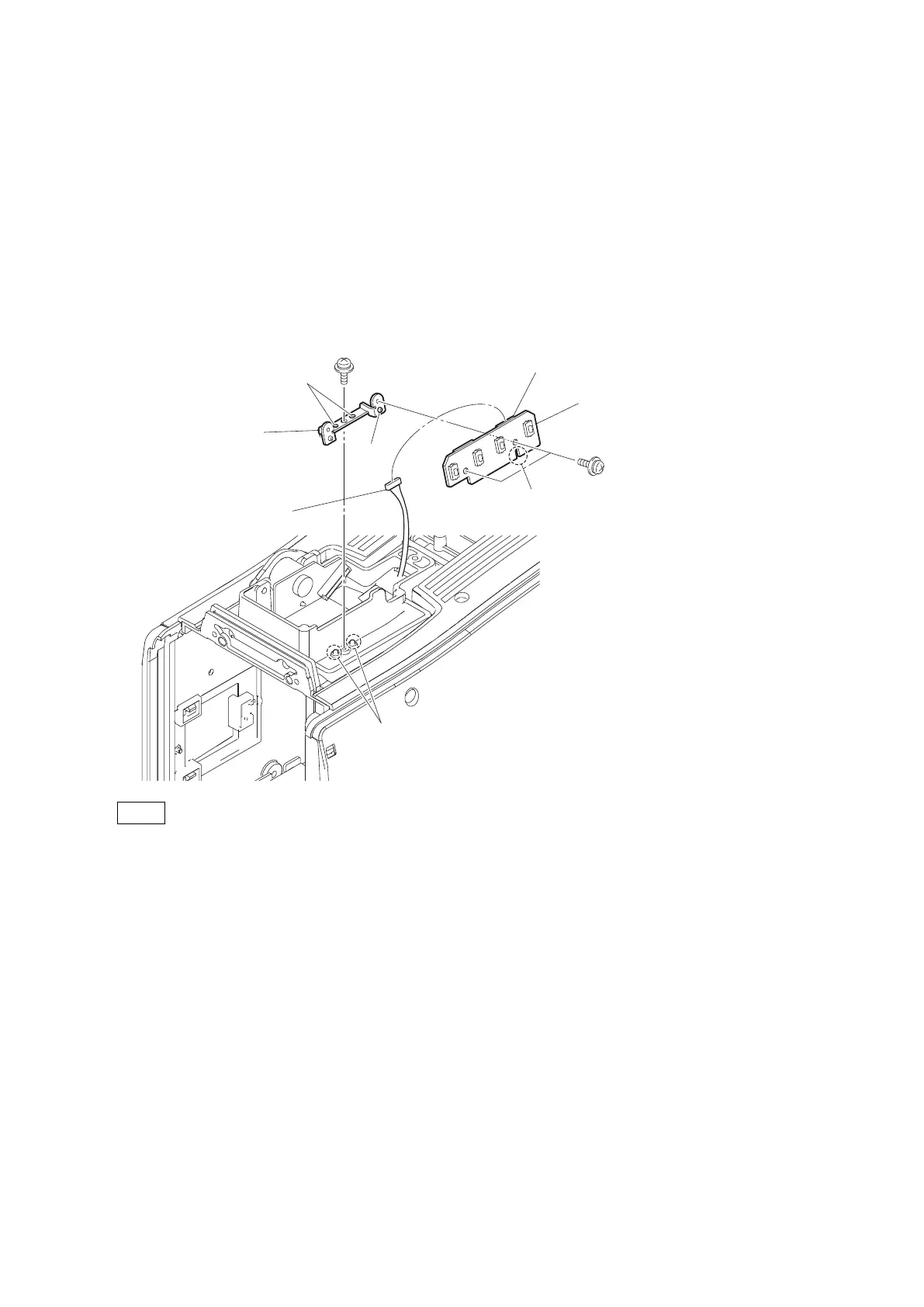

SW-1525 board
PSW2 x 5
PSW2 x 5
CN2
Harness
SW-1525 bracket
Holes
Bosses
Boss
Slit
Note
When installing the SW-1525 board to the SW-1525 bracket, match the boss with the slit. When installing the
SW-1525 bracket to the main unit, match the two bosses with the two holes.
4. Install the removed parts by reversing the steps of removal.
