4-3. Outside Block
4-3-1. Outside Panel Assembly
Procedure

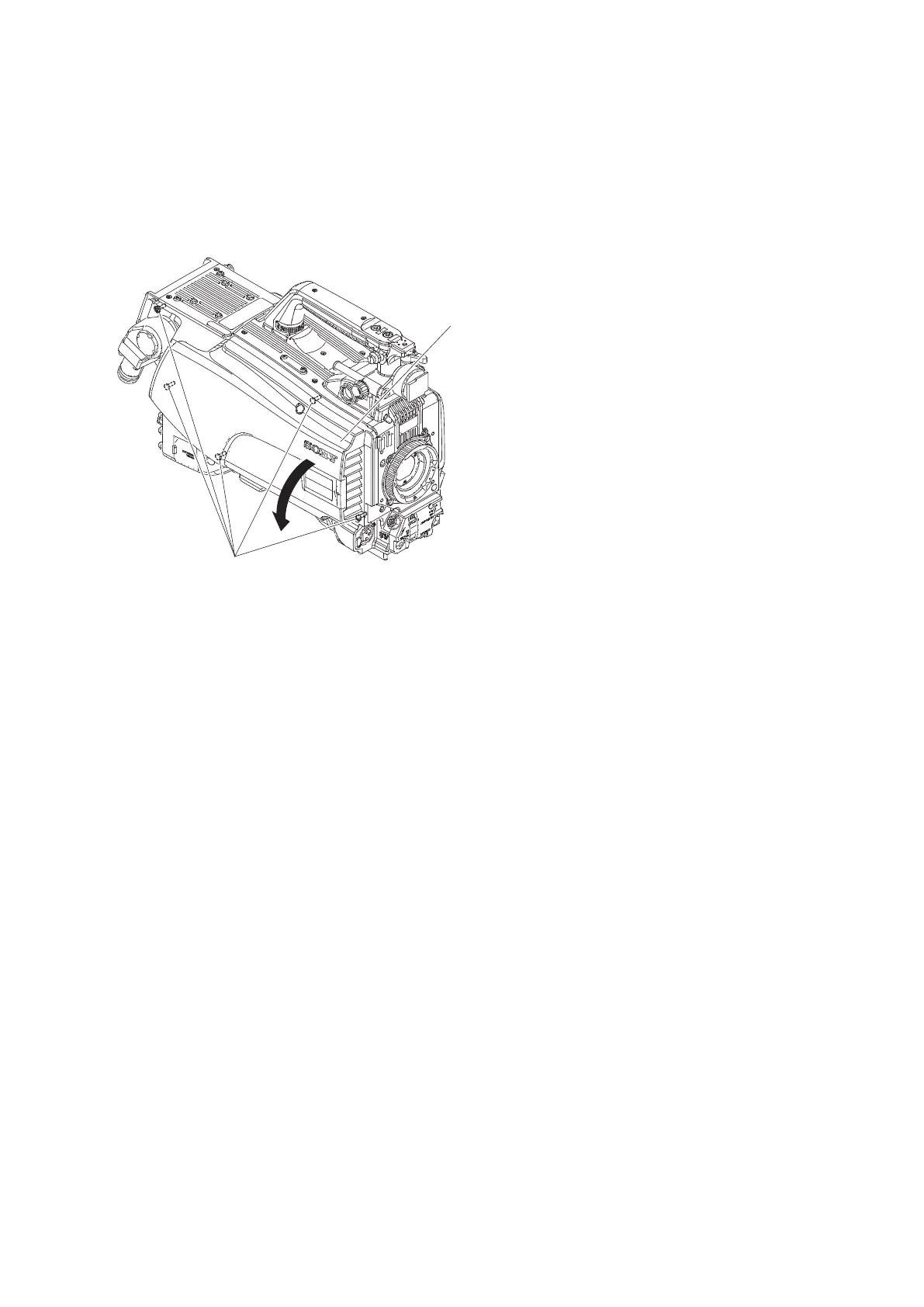

1. Loosen the five screws with stopper, and open the outside panel assembly in the direction of arrow.
Screws with stopper
Outside panel assembly
2. Disconnect the harness from the connector (CN100) on the PS-836 board.
3. Disconnect the two fine-wire coaxial cables from the two connectors (CN800, CN203) on the DPR-370 board.
4. Disconnect the two FPCs with connector (DPR-SDI) from the two connectors (CN104, CN105) on the DPR-370
board.
HDC4300
4-5
To Next Page
