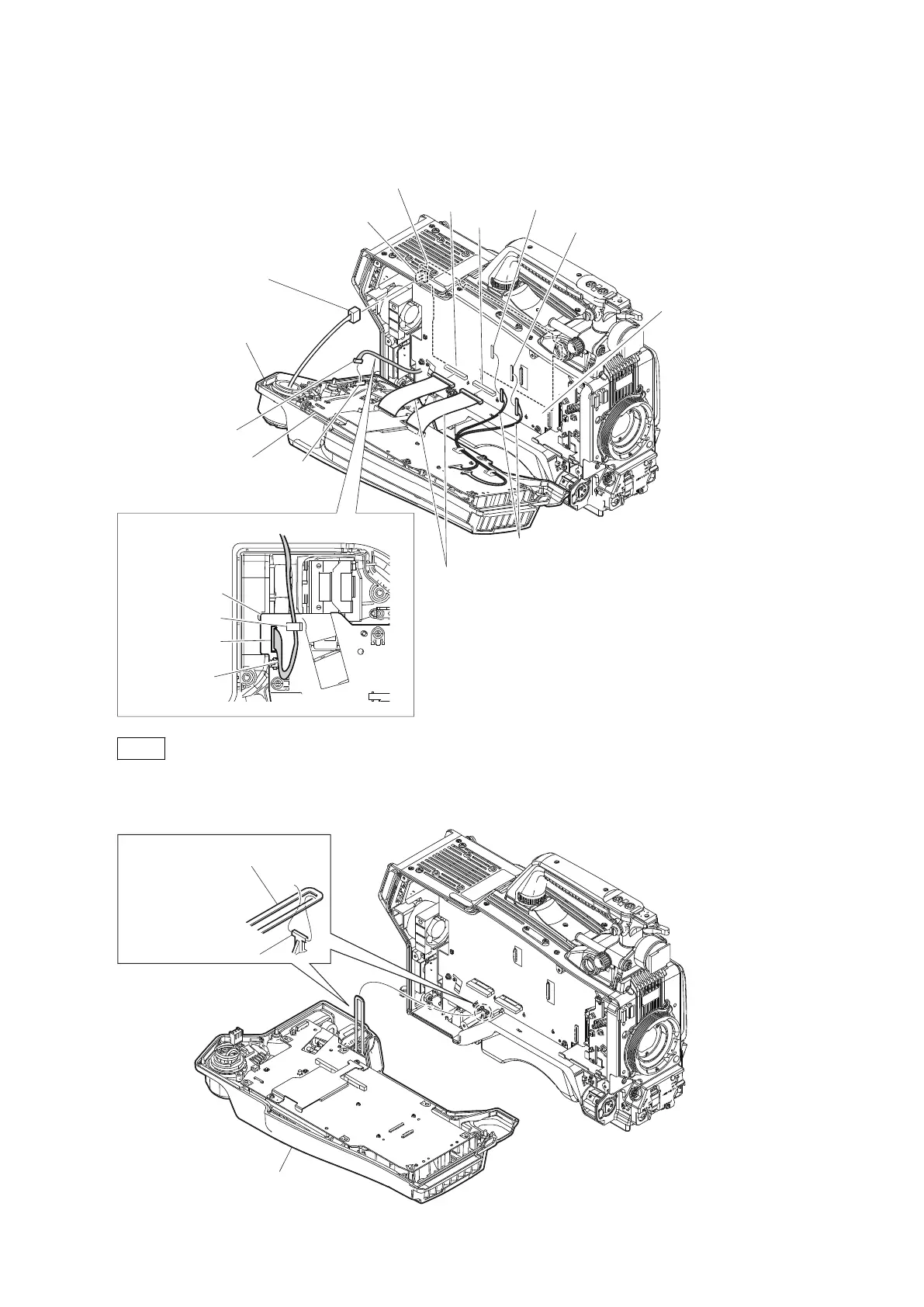

5. Disconnect the harness from the connector (CN1301) on the MEM-147 board and release the harness from the
clamper.
DPR-370 board
CN100
PS-836 board
Harness
Outside panel assembly
CN105
CN104
CN800
CN203
Harness
Clamper
CN1301
FPC with connectors (DPR-SDI)
Fine-wire coaxial cables
CN1301
Harness
MEM-147 board
MEM-147 board
Note
When installing the outside panel assembly, arrange the harness as shown in the figure.
6. Remove the outside panel support from the hook of the main frame and remove the outside panel assembly.
Outside panel assembly
Outside panel support
Hook of main frame
HDC4300
4-6
