Sony HDC4300 - VF Connector (CN-3422 Board)

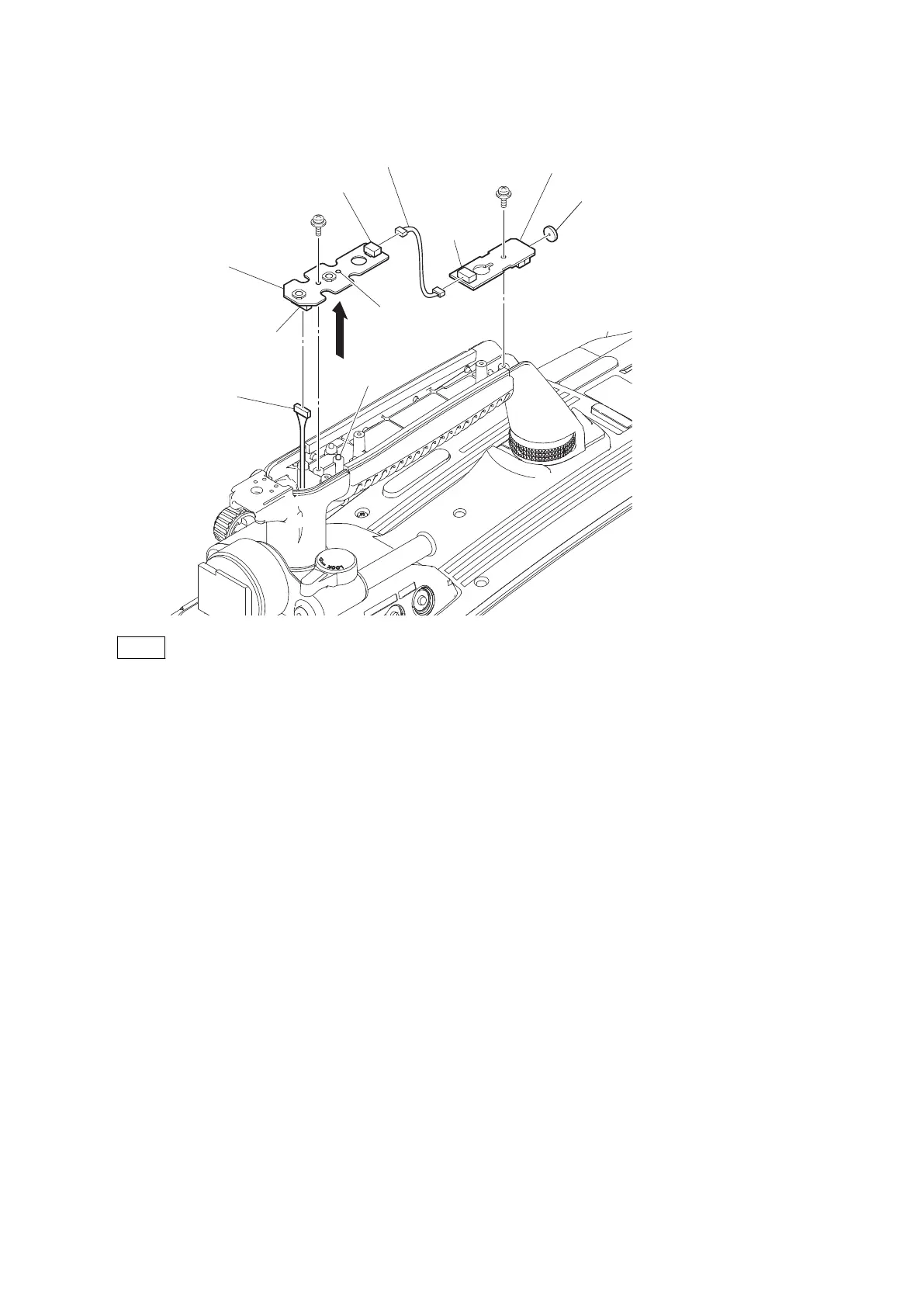

7. Disconnect the harness from the connector (CN1) on the SW-1524 board.
SW-1524 board
PSW2 x 5
PSW2 x 5
CN1
Hole
Boss
CN2
CN1
LE-376 board
Toggle SW cushion
Harness
Harness
Note
When installing the SW-1524 board, match the boss with the hole.
8. Install the removed parts by reversing the steps of removal.
4-7-2. VF Connector (CN-3422 Board)
Procedure
1. Remove the front assembly. (Refer to“4-5. Front Assembly” on page 4-17 )
Procedure
1. Press the handle release button and turn the handle in the direction of arrow.
