Sony HDC4300 - CN-3421 Board; SW-1528 Board

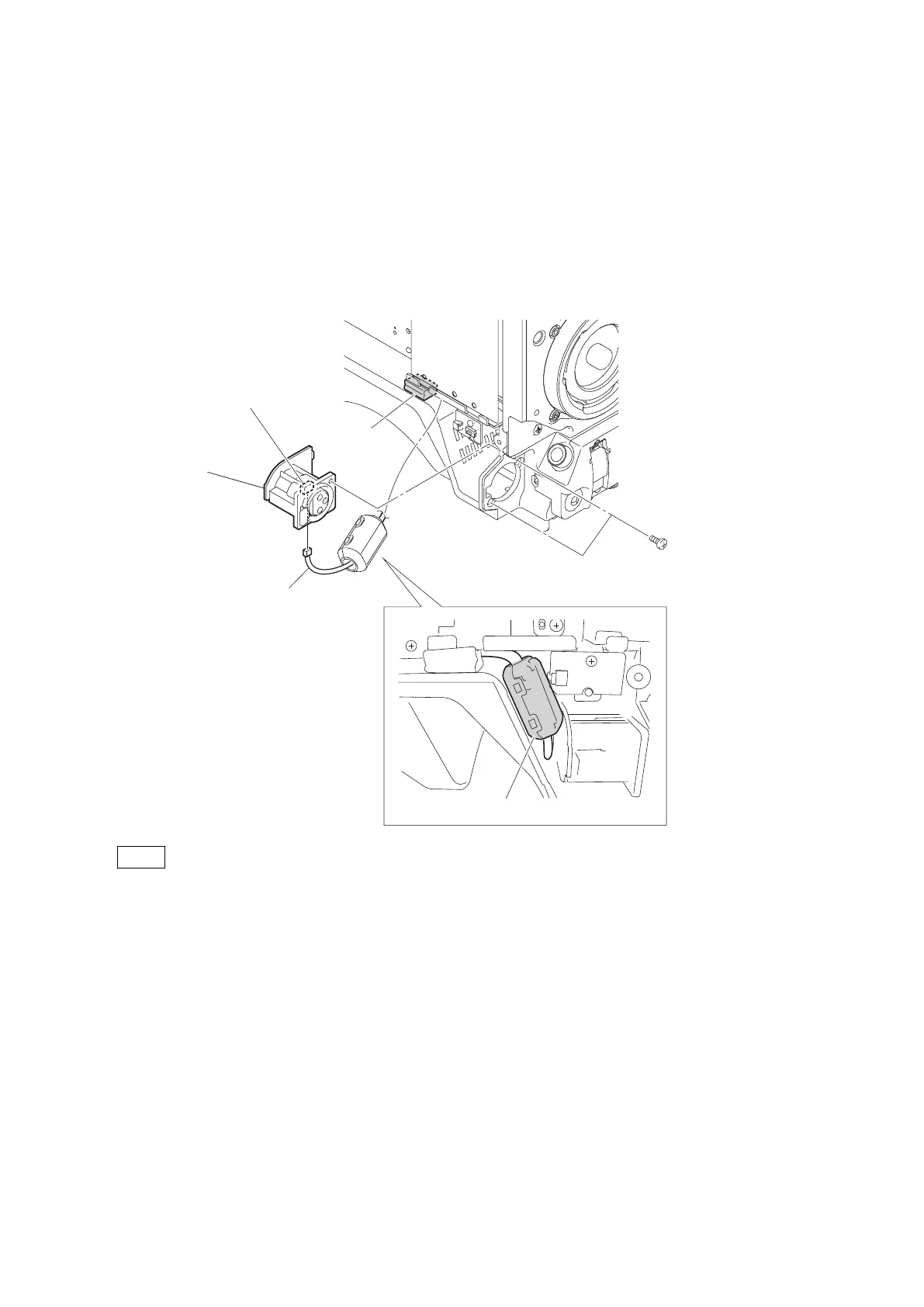

4-8-8. CN-3421 Board
Preparation
1. Remove the outside panel assembly. (Refer to“4-3-1. Outside Panel Assembly”)
Procedure
1. Remove the gasket.
2. Remove the two screws and pull out the CN-3421 board.
3. Disconnect the harness from the connector (CN3) on the CN-3421 board.
Harness
Ferrite core
Gasket
CN-3421 board
CN3
B2.6 x 5
Note
When installing the CN-3421 board, put the ferrite core in the figure.
4. Install the removed parts by reversing the steps of removal.
4-8-9. SW-1528 Board
Preparation
1. Remove the inside panel assembly. (Refer to “4-2. Inside Panel Assembly”.)
Procedure
1. Remove the five toggle SW cushions.
2. Remove the screw and pull out the SW-1528 board in the direction of arrow.
HDC4300
4-37
