Sony HDC4300 - Wiring Diagrams for Cables; Connection Connectors;Cables

No. Signal I/O Specifications
1 MIC 1 (G) — –60 dBu, –50 dBu,
–40 dBu, –30 dBu,
–20 dBu selectable, High
impedance, Balanced
2 MIC 1 (X) IN
3 MIC 1 (Y) IN
20. USB
USB (Series A), 4-pin
Signal standard: USB standard Ver. 2.0
- External View -
14
No. Signal I/O Specifications
1 VBUS OUT USB Vcc (+5 V)
2 D+ IN/
OUT
USB+
3 D– IN/
OUT
USB–
4 GND — GND
21. LAN
18
- External View -
8-pin, RJ-45, 10Base-T/100Base-TX
No. Signal I/O Specifications
1 TRD + (0) IN/
OUT
Transmitted/Received
Data + (0)
2 TRD - (0) IN/
OUT
Transmitted/Received
Data - (0)
3 TRD + (1) IN/
OUT
Transmitted/Received
Data + (1)
4 TRD + (2) IN/
OUT
Transmitted/Received
Data + (2)
5 TRD - (2) IN/
OUT
Transmitted/Received
Data - (2)
6 TRD - (1) IN/
OUT
Transmitted/Received
Data - (1)
7 TRD + (3) IN/
OUT
Transmitted/Received
Data + (3)
8 TRD - (3) IN/
OUT
Transmitted/Received
Data - (3)
22. DC OUT
- External View -
2-pin, Female
12
No
.
Signal I/O Specifications
1 LIGHT +12 V OUT +12 V dc, 2.5 A (max)
2 GND — GND for power

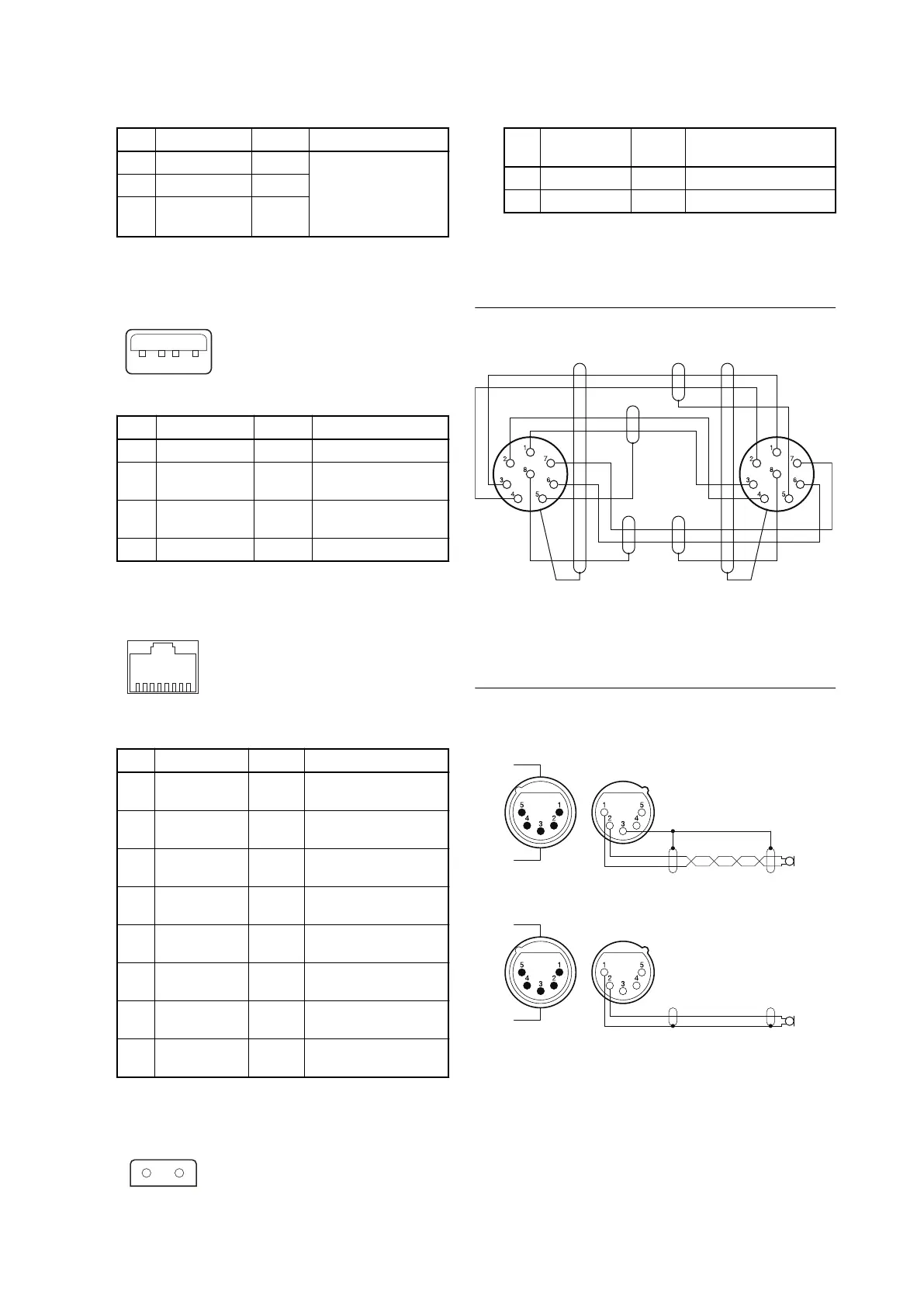

1-2-2. Wiring Diagrams for Cables
CCA-5 Cable (for REMOTE connector)
BrownBrown
Brown
Red
Red
White
White
White
Orange
Black
— 8P CONNECTOR (MALE) —
(WIRING SIDE)
INTERCOM MIC Cable
1. Balance (HEAD SET menu UNBAL: OFF)
G
X
INTERCOM
MIC
Y
2. Unbalance (HEAD SET menu UNBAL: ON)
X
INTERCOM
MIC
Y
1-2-3. Connection Connectors/Cables
Connection made with the connector panels during installation or
service, should be made with the connectors/complete cable
assemblies specified in the following list, or equivalent parts.
HDC4300
1-6
