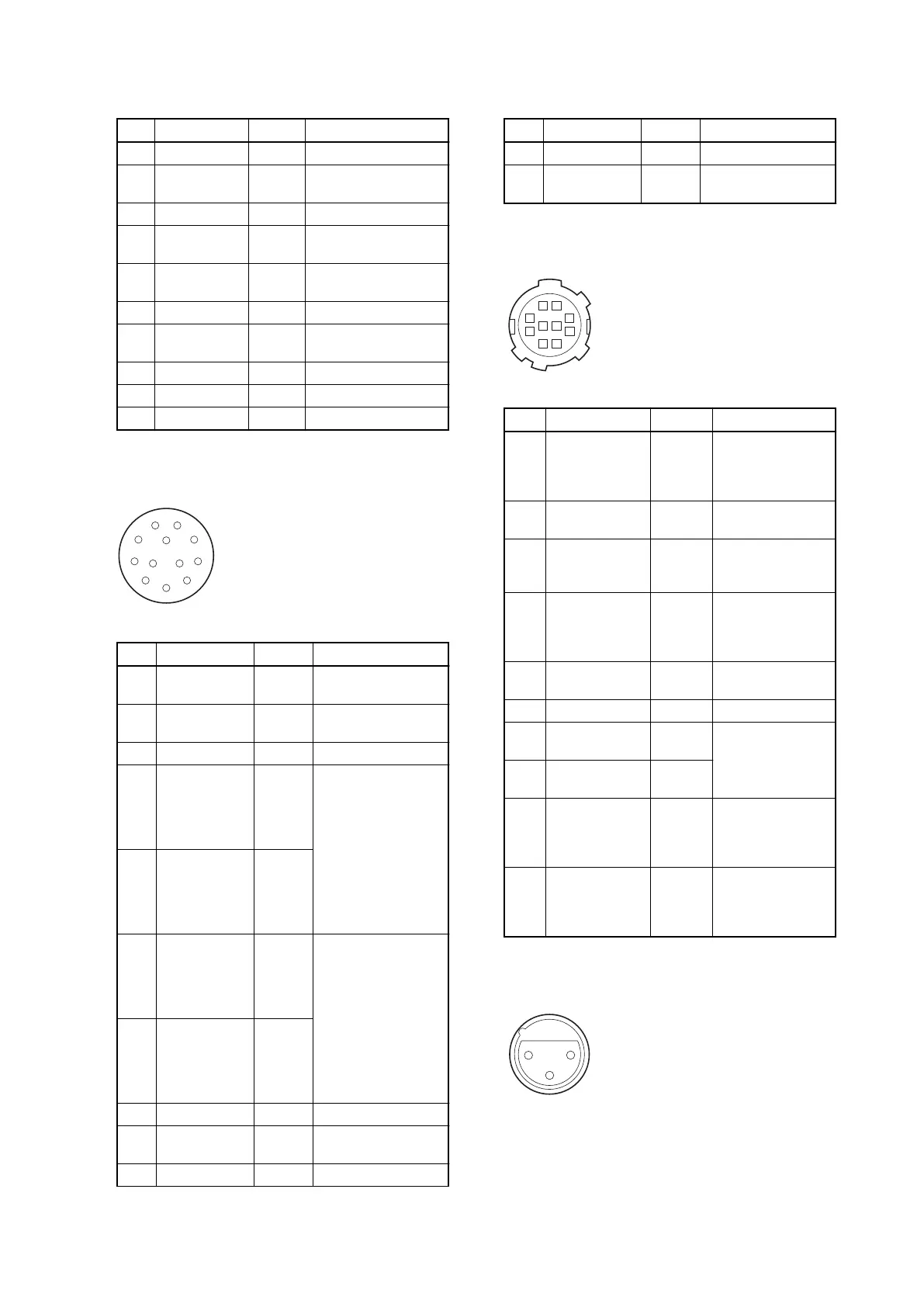

No. Signal I/O Specifications
11 NC — No connection
12 Y VIDEO OUT 1.0 V p-p,
Zo = 75 Ω
13 VIDEO GND — GND for VIDEO
14 Pb VIDEO OUT ±0.35 V p-p,
Zo = 75 Ω
15 Pr VIDEO OUT ±0.35 V p-p,
Zo = 75 Ω
16 NC — No connection
17 R TALLY OUT ON : 5 V
OFF : GND
18 NC — No connection
19 UNREG GND — GND for UNREG
20 UNREG OUT +10.5 V to +17 V
17. CRANE
- External View -
2
9
1
8
10
1211
37
64
5
12-pin, Female
No. Signal I/O Specifications
1 Pr VIDEO (X) OUT ±0.35 V p-p,
Zo = 75Ω
2 Pb VIDEO (X) OUT ±0.35 V p-p,
Zo = 75Ω
3 NC — No connection
4 • TX0 (+):
for
RS-422A
• TX1: for
RS-232C
OUT TRUNK data out
5 • TX0 (–):
for
RS-422A
• TX0: for
RS-232C
OUT
6 • RX0 (–):
for
RS-422A
• RX0: for
RS-232C
IN TRUNK data in
7 • RX0 (+):
for
RS-422A
• RX1: for
RS-232C
IN
8 GND (VIDEO) — GND for VIDEO
9 Y VIDEO (X) OUT 1.0 V p-p,
Zo = 75Ω
10 GND — GND for SCL/SDA
Continued
No. Signal I/O Specifications
11 SCL EXT-VF OUT TTL level
12 SDA EXT-VF IN/
OUT
TTL level
18. TRACKER
81
54
10 9
27
63
- External View -
10-pin, Female
No. Signal I/O Specifications
1 TRACKER
LEFT
OUT TRACKER RE-
CEIVE/
PGM –20 dBu unbal-
anced
2 GND (TALK) — GND for TRACKER
TALK
3 GND (RE-
CEIVE/PGM/TL
)
— GND for
RECEIVE/PGM/TL
4 TRACKER
RIGHT
OUT TRACKER RE-
CEIVE/
PGM –20 dBu unbal-
anced
5 UNREG OUT +12 V (+10.5 to
+17.0 V)
6 GND (UNREG) — GND for UNREG
7 TRACKER
TALK (X)
IN TRACKER TALK 0
dBu /
–20 dBu, High impe-
dance balanced
8 TRACKER
TALK (Y)
IN
9 G TALLY OUT ON: GND
OFF: High impe-
dance (Open collec-
tor)
10 R TALLY OUT ON: GND
OFF: High impe-
dance (Open collec-
tor)
19. MIC 1 IN
1
2
3
- External View -
(0 dBu = 0.775 V rms)
XLR 3-pin, Female
