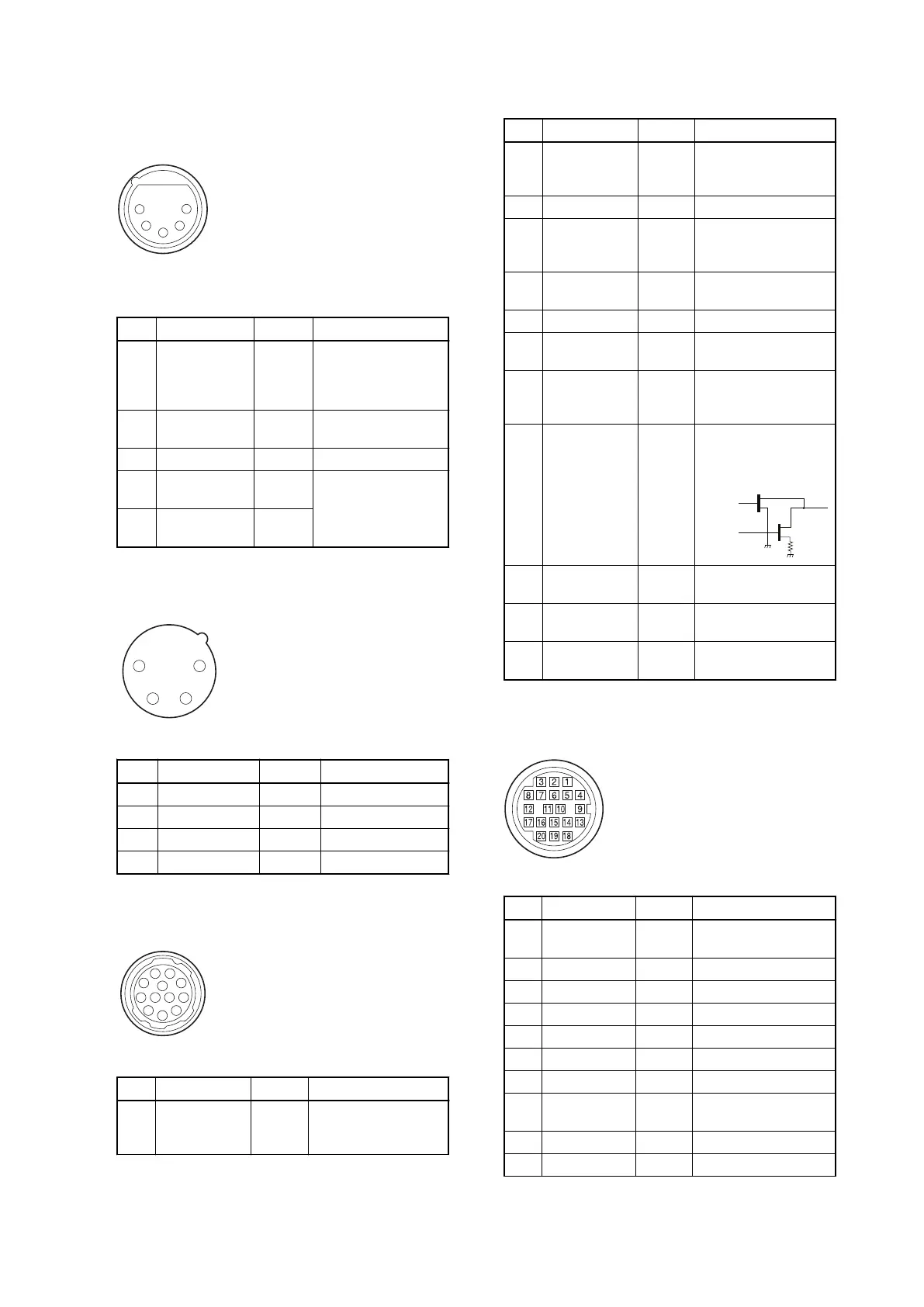

13. INTERCOM 1, 2
- External View -
1
2
5
4
3
XLR 5-pin, Female
(0 dBu = 0.775 V rms)
No. Signal I/O Specifications
1 EXT-INCOM-T
(Y)
IN • –20 dBu: Carbon
microphone
• –60 dBu: Dynam-
ic microphone
2 EXT-INCOM-T
(X)
IN
3 GND — GND
4 EXT-INCOM-
LEFT (X)
OUT 0 dBu
5 EXT-INCOM-
RIGHT (X)
OUT
14. DC IN
1
23
4
- External View -
XLR 4-pin, Male
No. Signal I/O Specifications
1 EXT_DC (C) — GND for DC (+)
2 NC — No connection
3 NC — No connection
4 EXT_DC (H) IN +10.5 V to 17 V dc
15. LENS
- External View -
12-pin, Female
12 11
46
73
28
91
10
5
No. Signal I/O Specifications
1 RET VIDEO
ENABLE
IN • ENABLE: 0 V
• DISABLE: +5 V or
OPEN
Continued
No. Signal I/O Specifications
2 VTR CTL IN • ENABLE: 0 V
• DISABLE: +5 V or
OPEN
3 GND — GND for UNREG
4 SERVO
MA/AT
OUT • AUTO: +5 V
• MANU: 0 V or
OPEN
5 IRIS POSI-
TION
OUT +3.4 V (F16) to +6.2 V
(F2.8)
6 UNREG OUT +10.5 V to +17 V
7 IRIS POSI-
TION
IN +3.4 V (F16) to +6.2 V
(F2.8)
8 IRIS AT/MA OUT • AUTO IRIS: 0 V
• MANUAL IRIS:
+5 V
9 EXTENDER
ON/OFF
IN • EX 2 ON: GND
• EX 0.8 ON: 30 kΩ
to GND
• OFF: OPEN
30 kΩ
EX 2 ON
EX 0.8 ON
10 ZOOM POSI-
TION
IN • WIDE: 2 V
• TELE: 7 V
11 FOCUS POSI
(LENS RX)
IN • ∞: 7 V
• min.: 2 V
12 FOCUS POSI
(LENS TX)
OUT —
16. VF
- External View -
20-pin, Female
No. Signal I/O Specifications
1 S-DATA IN/
OUT
TTL level
2 NC — No connection
3 NC — No connection
4 SCK OUT TTL level
5 NC — No connection
6 NC — No connection
7 NC — No connection
8 G TALLY OUT ON : 5 V
OFF : GND
9 NC — No connection
10 NC — No connection
Continued
HDC4300
1-4
