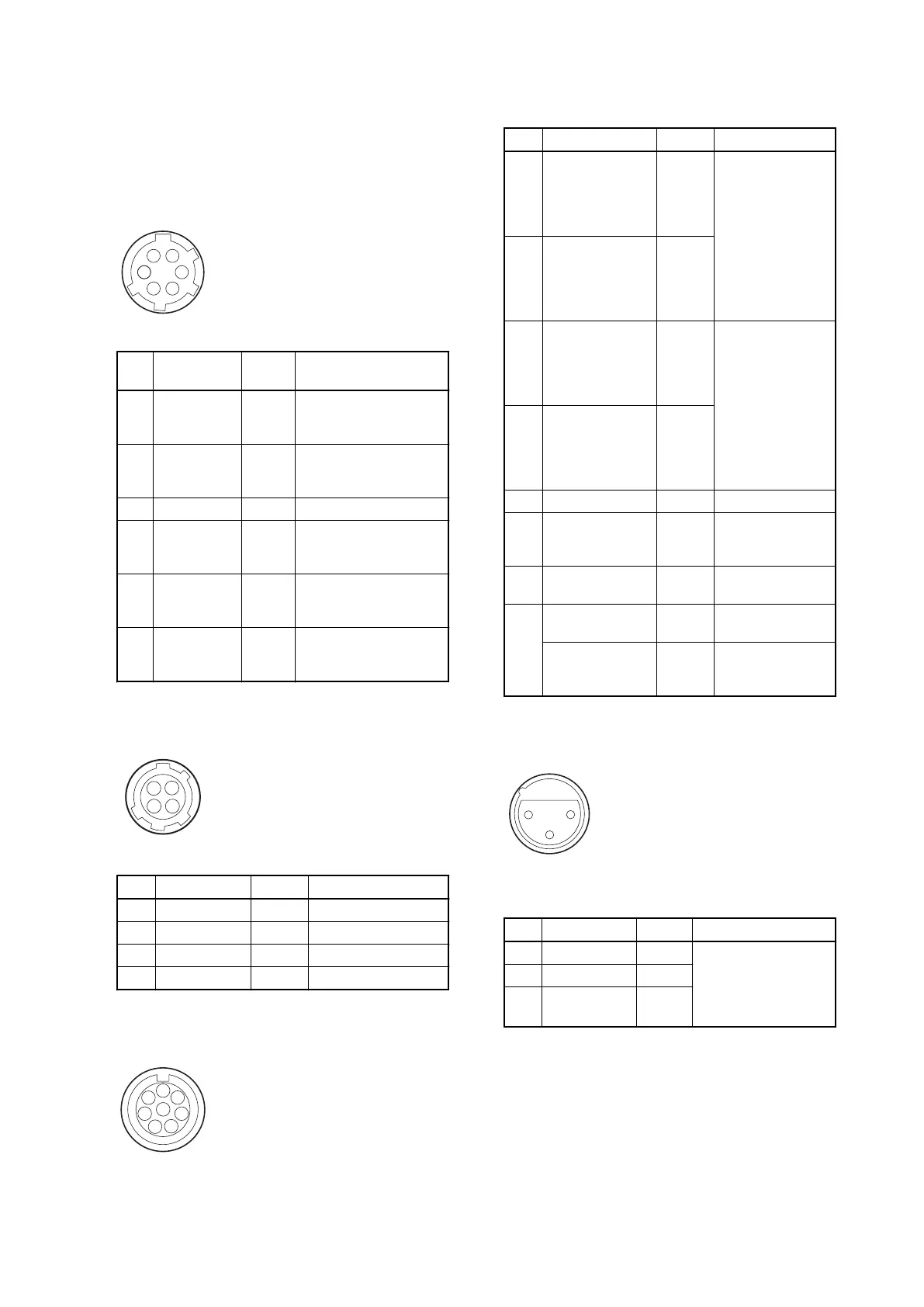

8. PROMPTER2
BNC type 75 Ω, 1.0 V p-p
9. RET CTRL
6-pin, Female
- External View -
34
16
25
No
.
Signal I/O Specifications
1 INCOM 1
MIC-ON/OFF
IN Zi ≧ 10 KΩ
ON: GND
OFF: OPEN
2 INCOM 2
MIC-ON/OFF
IN Zi ≧ 10 KΩ
ON: GND
OFF: OPEN
3 GND — —
4 RET 3-
ON/OFF
IN Zi ≧ 10 KΩ
ON: GND
OFF: OPEN
5 RET 1-
ON/OFF
IN Zi ≧ 10 KΩ
ON: GND
OFF: OPEN
6 RET 2-
ON/OFF
IN Zi ≧ 10 KΩ
ON: GND
OFF: OPEN
10. DC OUT
1
23
4
- External View -
4-pin, Female
No. Signal I/O Specifications
1 UNREG GND — GND for power
2 NC — No connection
3 NC — No connection
4 UNREG OUT +12 V dc, 500 mA (max)
11. REMOTE
1
7
6
5
4
3
2
8
- External View -
8-pin, Female
No. Signal I/O Specifications
1 • TX (X): for
RCP
• TX1 (+): for
TRUNK
(RS-422A)
OUT • SERIAL DA-
TA OUT: for
RCP
• TRUNK1 DA-
TA OUT: for
RS-422A
2 • TX (Y): for
RCP
• TX1 (–): for
TRUNK
(RS-422A)
OUT
3 • RX (X): for
RCP
• RX1 (+): for
TRUNK
(RS-422A)
IN • SERIAL DA-
TA IN: for
RCP
• TRUNK1 DA-
TA IN: for
RS-422A
4 • RX (Y): for
RCP
• RX1 (–): for
TRUNK
(RS-422A)
IN
5 TX-GND — GND for TX
6 UNREG-OUT OUT UNREG +10.5 V to
+17 V dc, 200 mA
(max)
7 UNREG-GND — GND for UNREG-
OUT
8 RCP-PIX: for RCP OUT 75 Ω, 1.0 V p-p (SD
Video)
CHASSIS GND:
for TRUNK
(RS-422A)
— CHASSIS GND
12. AUDIO IN CH1/CH2
1
2
3
- External View -
(0 dBu = 0.775 V rms)
XLR 3-pin, Female
No. Signal I/O Specifications
1 AUDIO 1/2 (G) — –60 dBu, –50 dBu,
–40 dBu, –30 dBu,
–20 dBu selectable, High
impedance, Balanced
2 AUDIO 1/2 (X) IN
3 AUDIO 1/2 (Y) IN
HDC4300
1-3
