2. Close the latch of the connector in the direction of arrow A to lock the flexible card wire.
1-7-2. Forming Flexible Card Wire

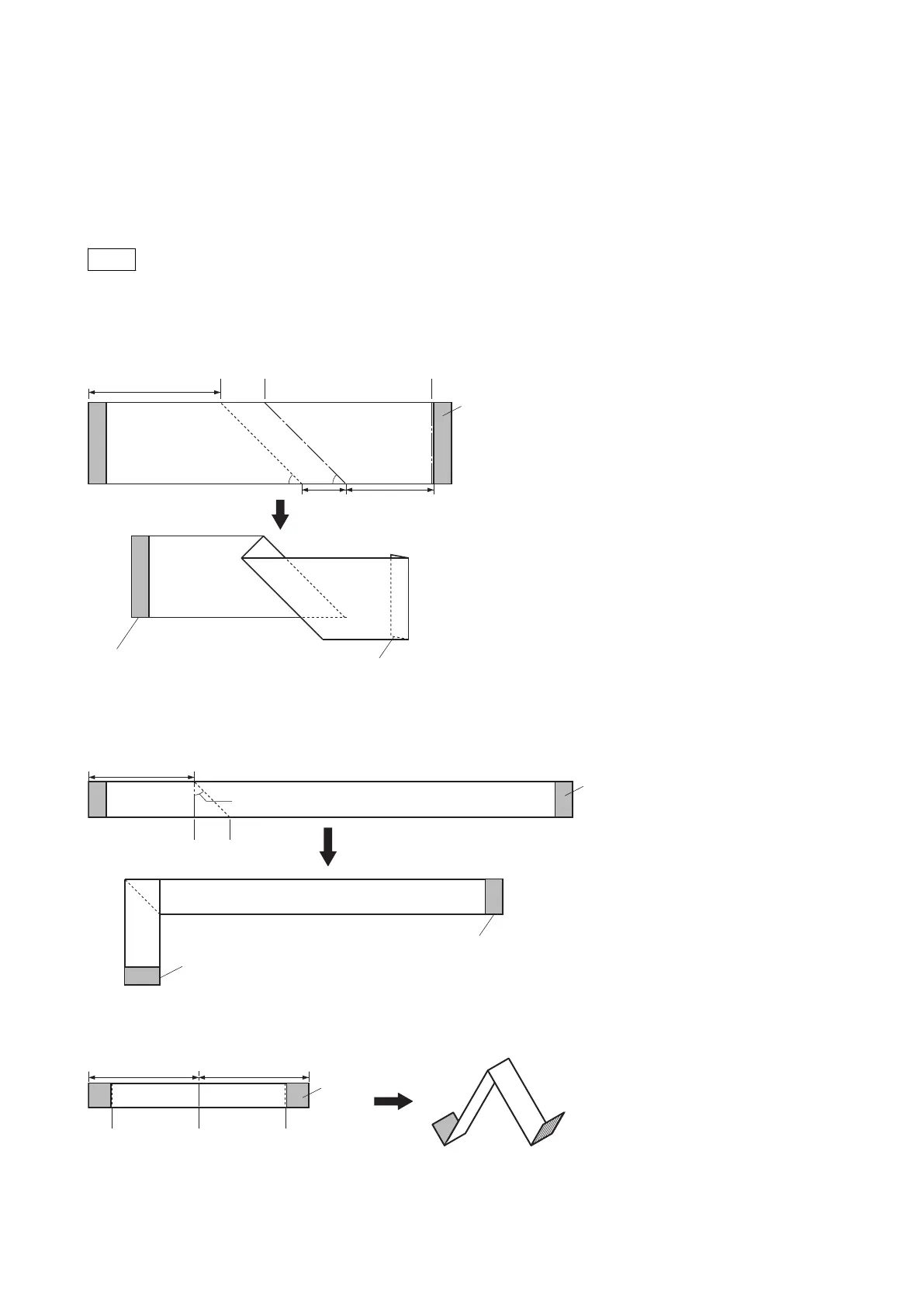

Before installing a new flexible card wire for repair, fold it by hand according to the following figures.
Note
Never fold it back after being formed once.
• SY-408 board CN8 ↔ CN-3427 board CN1
Mountain
fold
45°
20 mm10 mm
30 mm
Isolation
surface
SY-408 board
CN8
Mountain
fold
Valley
fold
45°
CN-3427 board
CN1
• SY-408 board CN5 ↔ SW-1530 board CN1
24 mm
SY-408 board
CN5
Mountain
fold
Valley
fold
SW-1530 board
CN1
Isolation
surface
45°
• SY-408 board CN9 ↔ CN-3426 board CN1
Valley
fold
Valley
fold
A B
Mountain
fold
Isolation
surface
HDC4300
1-15
