Sony HDC4300 - Page 199

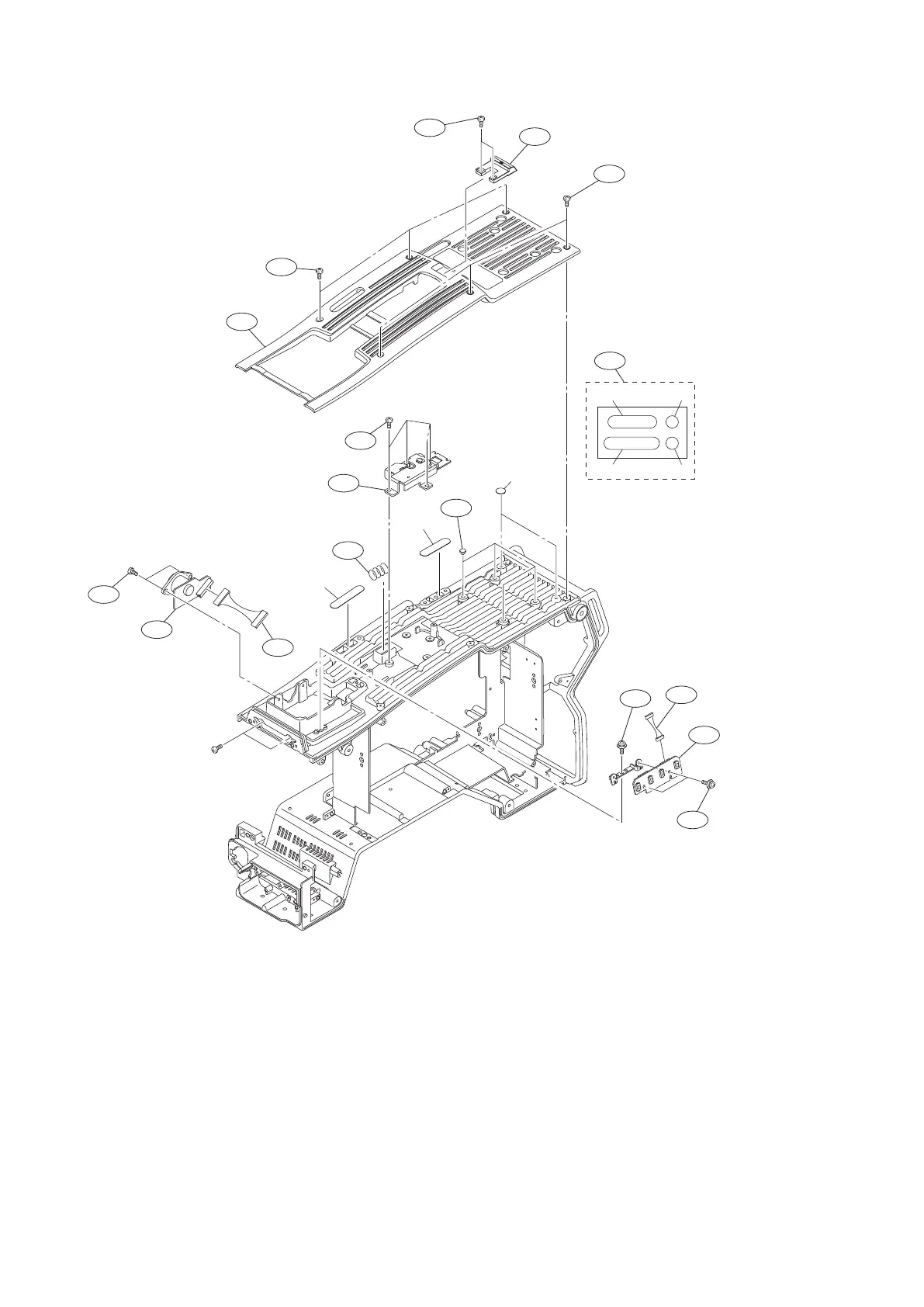

Handle-3
B3 x 8
1701
1702
1703
1704
1705
1706
1706
1712
1712
1707
1708
1709
1710
1711
1713
1713
1713
y
y
aa
z
z
aa
z
No. Part No. SP Description
1701 A-1860-026-A s MOUNTED CIRCUIT BOARD, SW-1525
1702 A-1860-033-A s MOUNTED CIRCUIT BOARD, CN-3422
1703 X-3704-669-2 s PLATE ASSY, HANDLE AXIS HOLD
1704 1-968-141-11 s HARNESS, SUB (FILTER SW)
1705 1-968-149-11 s HARNESS, SUB (VF)
1706 2-640-315-02 o SCREW (M2X5), SMALL, +P, SW
1707 3-872-543-01 s SPRING,COMPRESSION(HANDLELOCK)
1708 4-138-679-01 s SCREW, BLIND
1709 4-293-486-02 s COVER, TOP
1710 4-299-188-01 s BUTTON, HANDLE RELEASE
1711 4-408-829-01 s SHEET, TOP
1712 4-559-446-01 s SCREW, +P2.6X5 LOCK ACE
No. Part No. SP Description
1713 4-654-273-02 s ACE (M2), LOCK [B2x5]
7-682-548-09 s SCREW +B 3X8
HDC4300
10-21
