Section 3
Troubleshooting

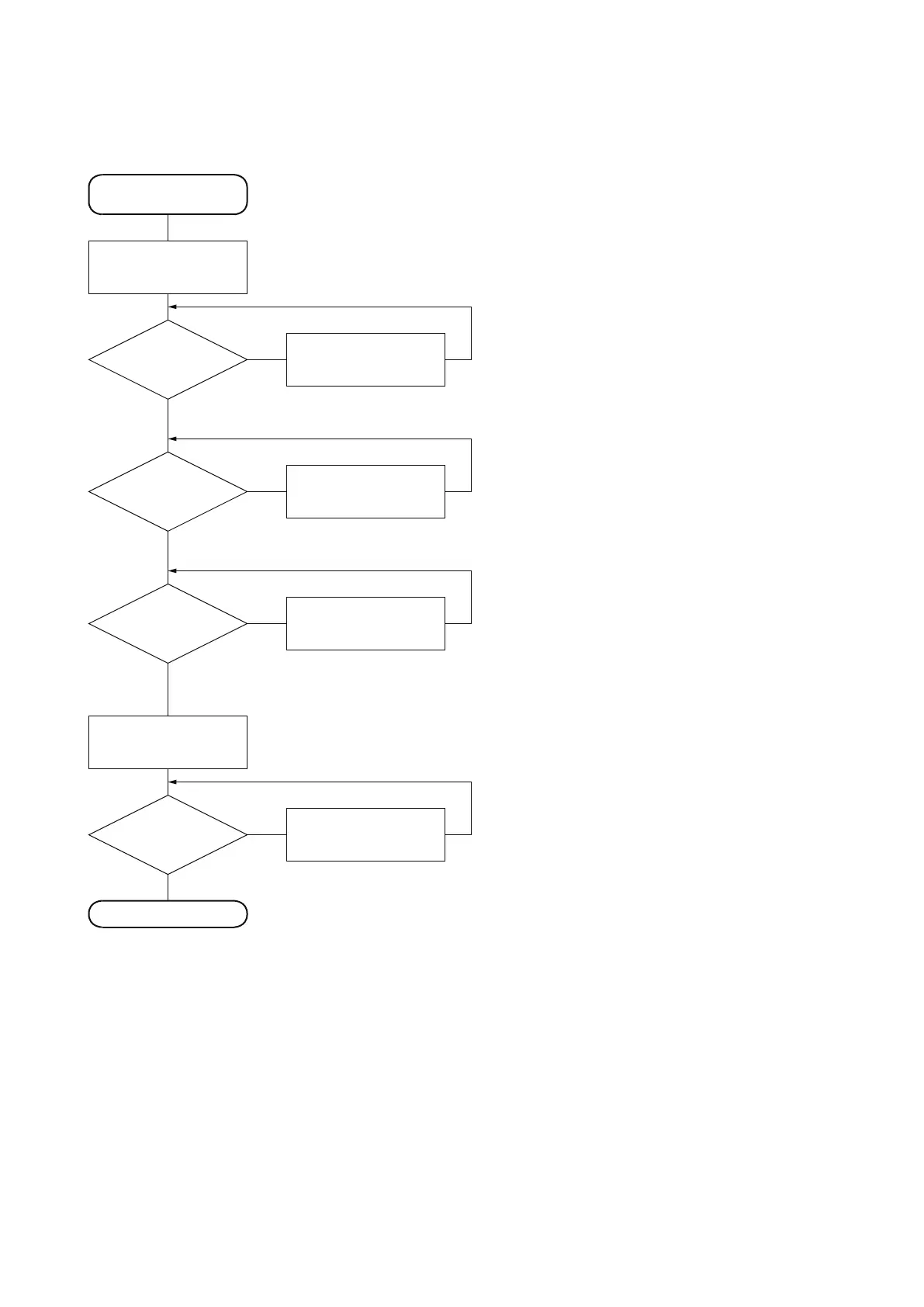

Camera picture
does not appear.
Yes
No
Yes
No
Confirm OPTICAL LEVEL
of camera menu D01
Yes
No
Yes
No
Is optical level
of FB correct?
Cleaning the fiber
connector.
Does the power
cable of MEM board on
the outside
connect?
Connect the power cable
of MEM board.
Do 2 pin
harnesses (BLK,BRN)
of FB cable detection
connect?
Is configuration
of BPU set to
HDC4300?
Set C07 CHU MODE in
BPU menu to HDC4300.
End
Confirm CHU MODE of
BPU menu C07
Connect 2 pin harnesses
(BLK,BRN) of FB cable
detection.
HDC4300
3-1
