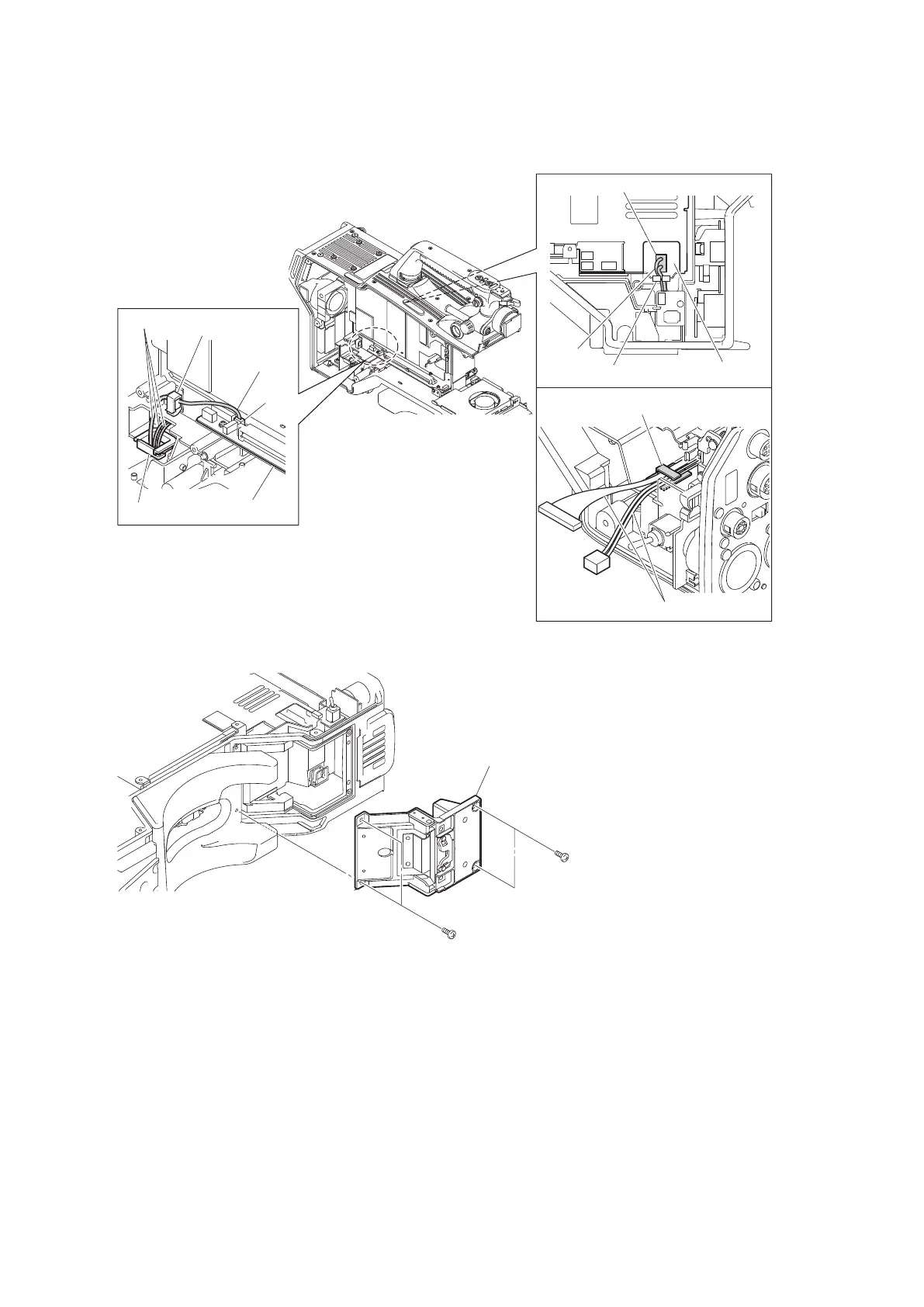

2. Disconnect the harness from the connector (CN6) on the MB-1214 board, and release the harness from the two
clampers.
Harness
Harnesses
CN101
Clamper
PS-836 board
Clamper
Clamper
Clamper
MB-1214 board
CN6
Harness
Harnesses
3. Remove the four screws, and detach the hotshoe assembly.
Hotshoe assembly
B3 x 8
B3 x 8
