8 CO2 measurement (optional)
 Fritz Stephan GmbH
GA-070T-0518V2.7-HAO-EN
179

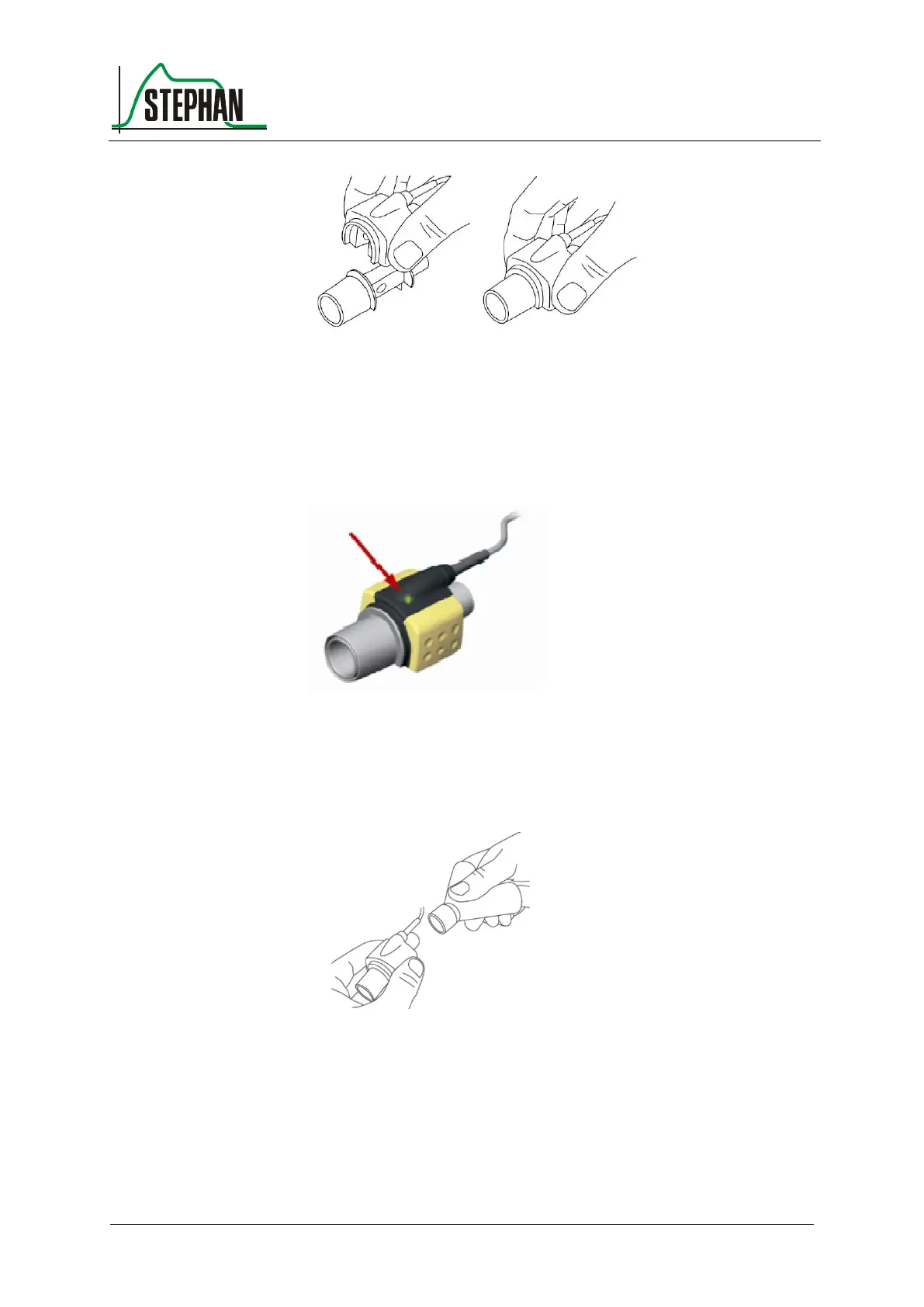

Fig. 100: Securing the probe to the airway adapter
 The probe must be placed so that its status indicator
(see chapter 8.1.6) points up. The CO
2
analyzer is ready for use when
the status indicator is green.
Fig. 101: Status indicator of the CO
2
analyzer
 Connect the socket of the airway adapter to the Y piece of the
ventilation system.
Fig. 102: Connecting the airway adapter's socket to the Y piece
 Connect the socket of the airway adapter to the ETT tube.
