3 Design and functional description
80
GA-070T-0518V2.7-HAO-EN
 Fritz Stephan GmbH
3.4 Right side view

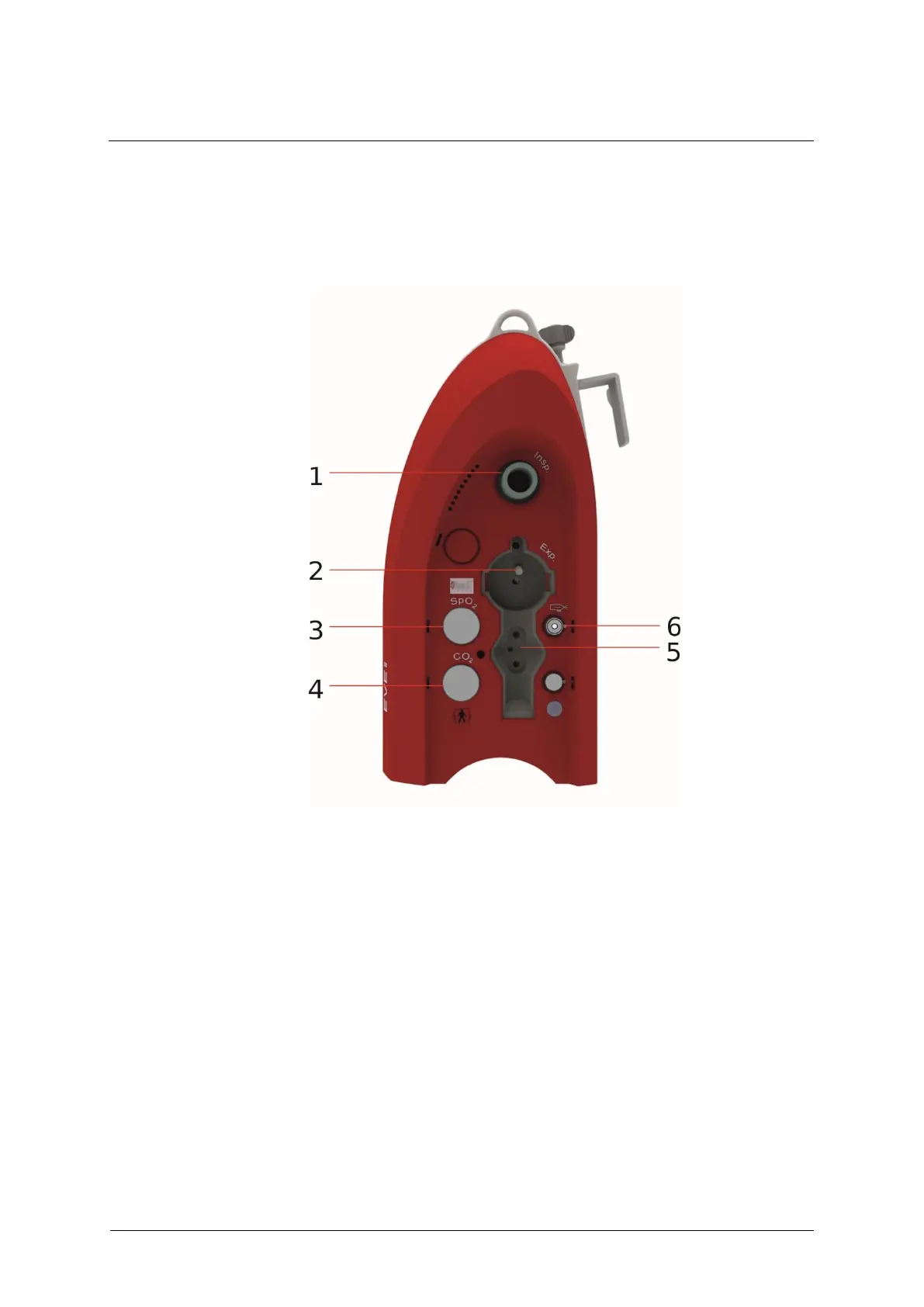

Fig. 39: Right side view
1 Insp. = gas outlet opening
Inspiration tube connection
3 SpO
2
sensor connection
4 CO
2
sensor connection
2 Exp. = gas return opening
Expiration tube connection
5 Flow sensor connection
6 Aerosol nebulizer connection
