11 Care and maintenance
220
GA-070T-0518V2.7-HAO-EN
 Fritz Stephan GmbH
Preparing the PNT B 11.7.1.1
1. Pull the pressure measurement lines off the PNT connectors.
2. Carefully pull both vortex bodies out on both sides of the flow
sensor using the assembly tool.

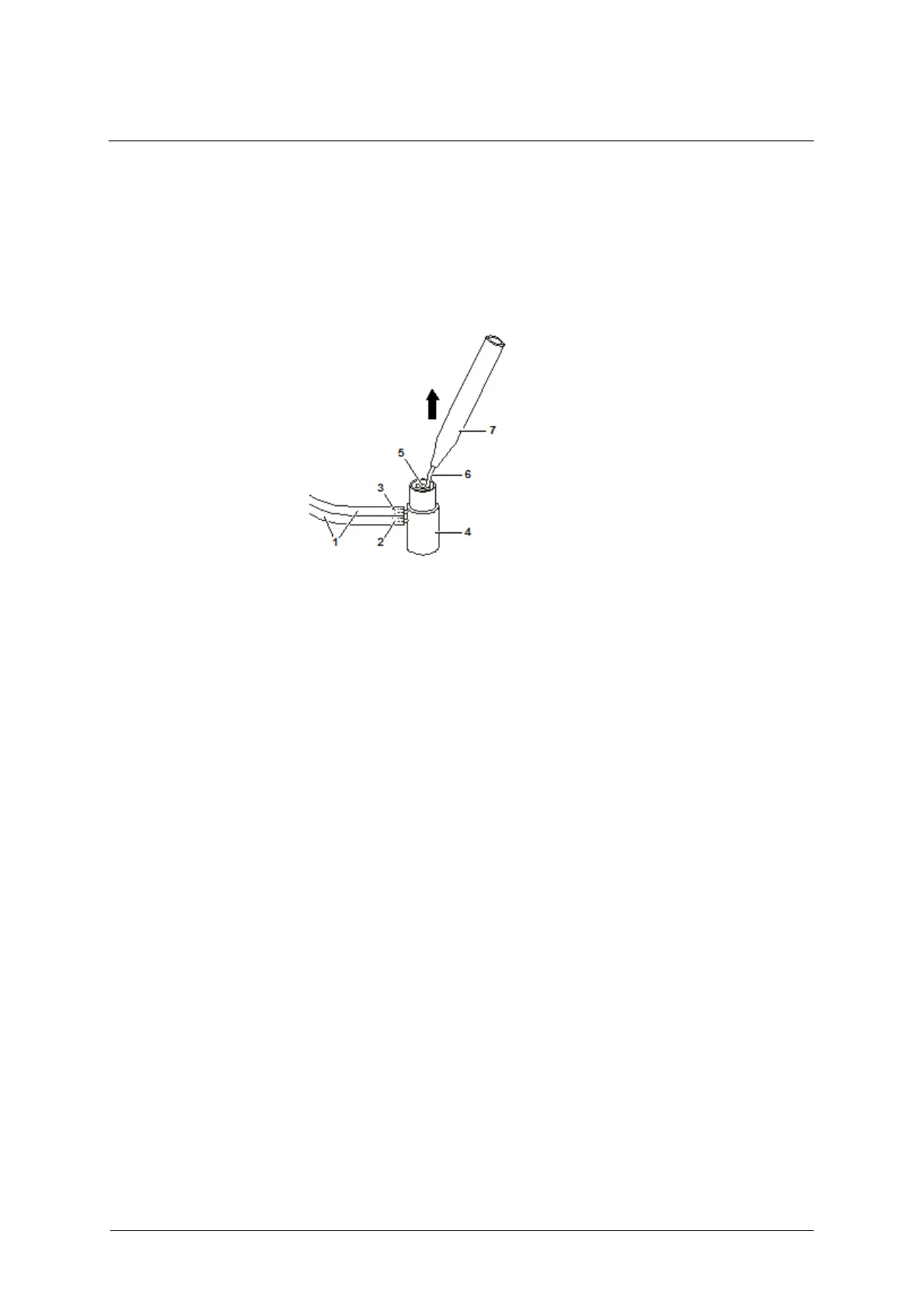

Fig. 110: Preparing the PNT B
1 Pressure measurement line
5 Vortex body
2 Connector 1
6 Hook
3 Connector 2
7 PNT B assembly tool
4 Pneumotachograph
Preparing the PNT B
