Stephan EVETR - Configuring the Measurement Curves

®
3 Design and functional description
 Fritz Stephan GmbH
GA-070T-0518V2.7-HAO-EN
75
Configuring the measurement curves 3.2.9.1
Select a measurement curve on the display to change it.

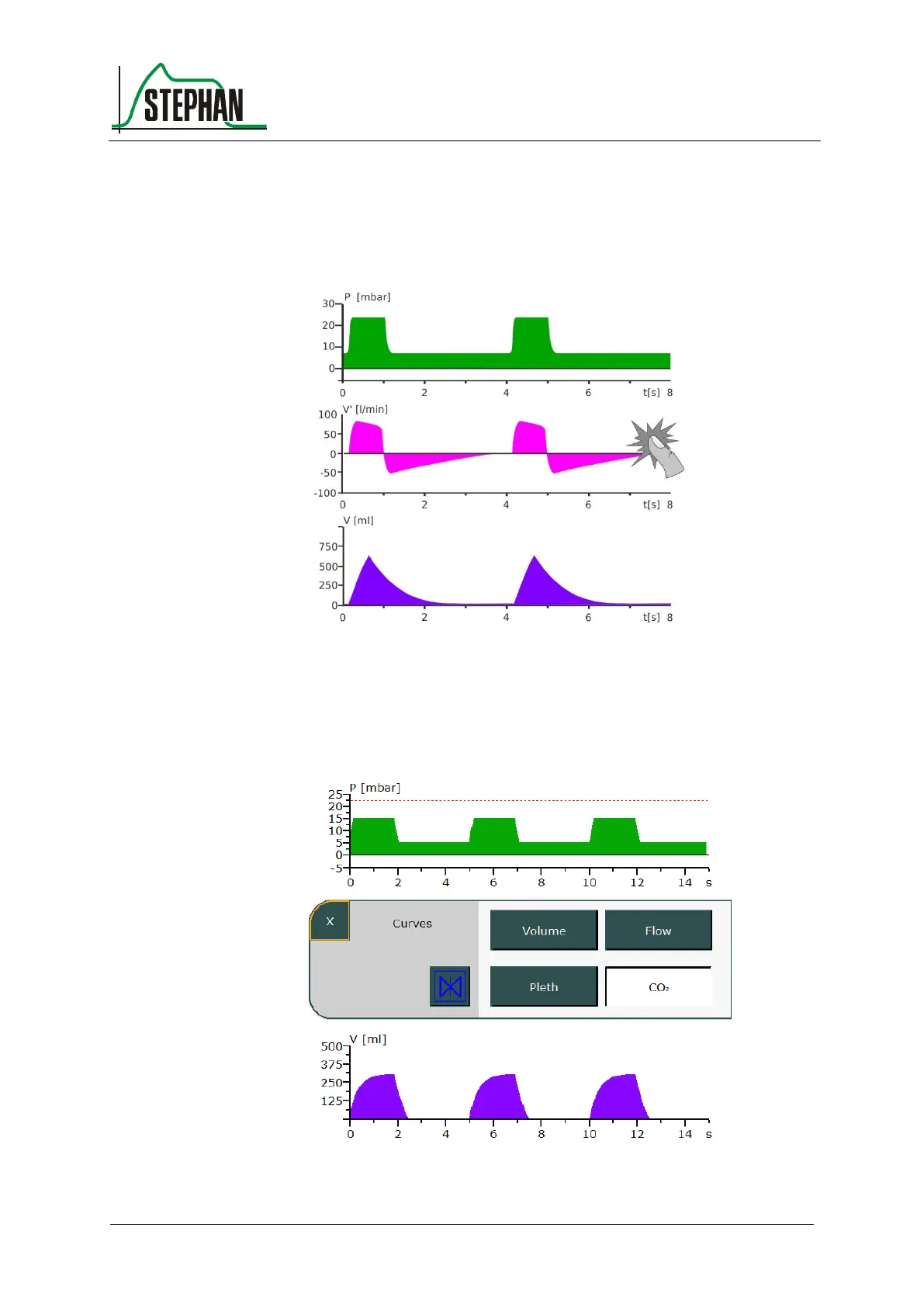

Fig. 33: Graphic display, changing the display
A window with all available measurement curves (volume, flow, CO
2
and
plethysmogram) opens. You can now select the desired option.
Fig. 34: Selecting the measurement curve
