3.2 Touchscreen monitor

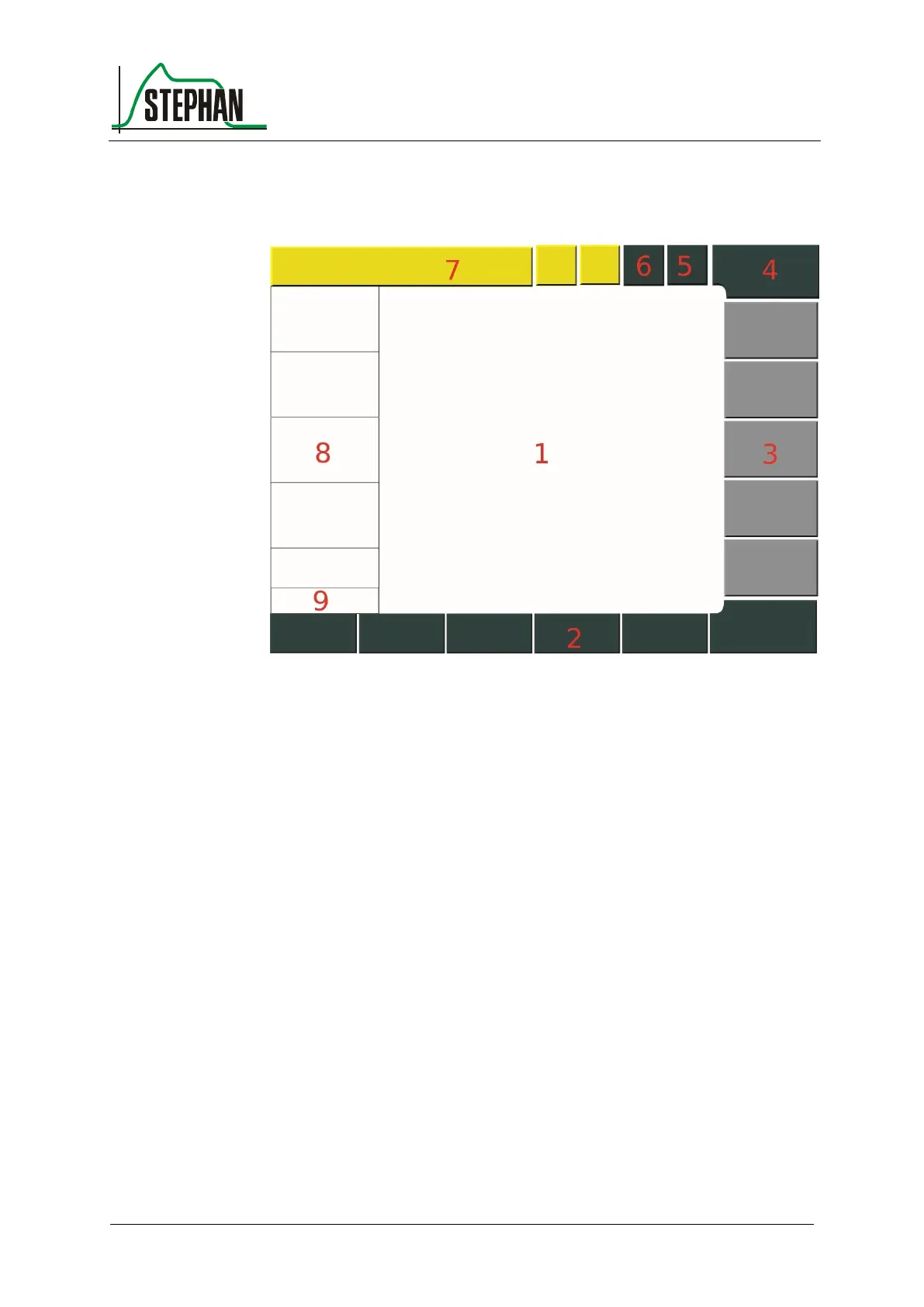

Fig. 5: Monitor unit
1 Graphic display,
adjust graphic display
7 Status/alarm indicators
and notifications,
Change to alarm limits,
preoxygenation, trigger
2 Function fields
3 Adjustable parameter display
4 Ventilation menu
(ventilation mode and flow sensor
display and selection)
8 Measurement value display
with alarm limits
5 System field
(Access system settings /
touchscreen lock state indicator)
9 Time display
6 System field
(Energy supply indicator)
