Stephan EVETR - Installing the ISA CO Analyzer

8 CO2 measurement (optional)
188
GA-070T-0518V2.7-HAO-EN
 Fritz Stephan GmbH
CAUTION
Do not use the ISA™ analyzer outside the specified ambient temperature range.
8.2.4 Installing the ISA™ CO
2
analyzer
To install the ISA™ CO
2
analyzer:
 Connect the ISA™ communication cable to the CO
2
sensor input on
the right side of the EVE
TR
(see Fig. 39) using the adapter.
 Connect a Nomoline sample collection tube to the ISA™ analyzer's
input connector.

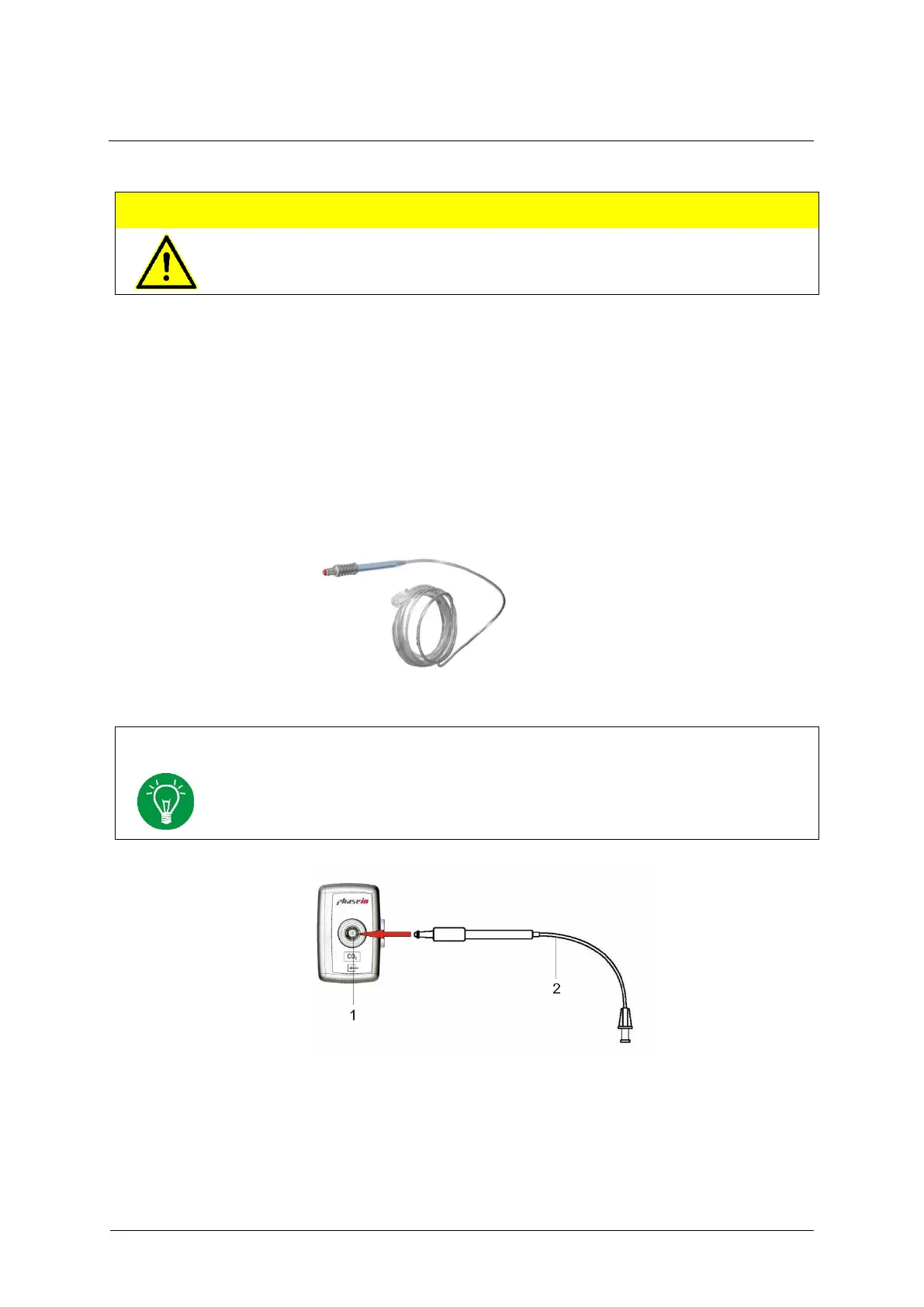

Fig. 105: Nomoline sample collection tube
NOTE
The Nomoline sample collection tube is not reusable! The Nomoline sample
collection tube must be replaced according to good clinical practice or when the
"CO
2
sampling line clogged!!" message appears on the EVE
TR
display.
Fig. 106: Connecting the sample collection tube to the ISA™ CO
2
analyzer
1 CO
2
connection analysis adapter
2 Sample collection tube
