3.2.3 Function fields

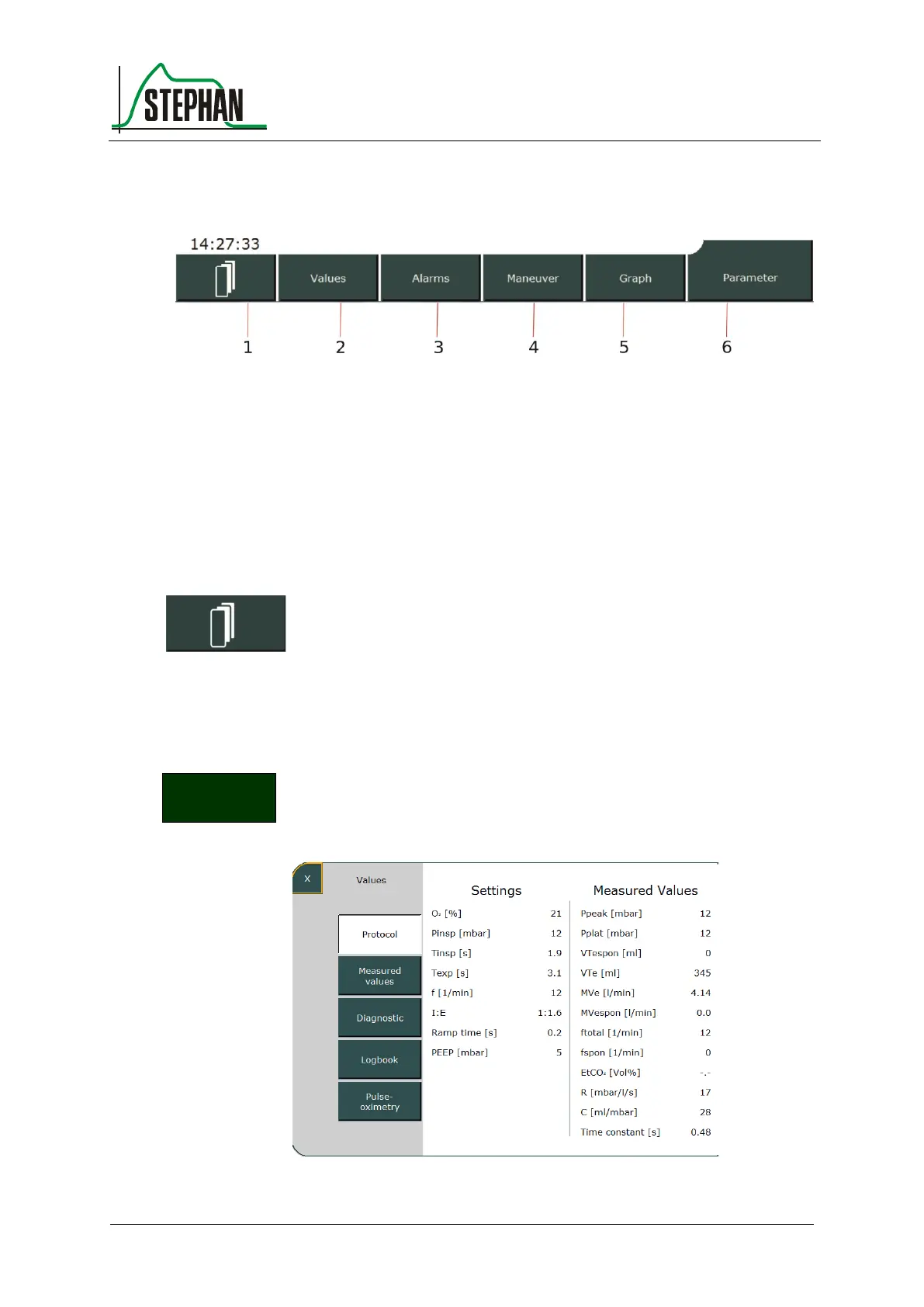

Fig. 16: Function fields
1 Measured value indicator switch
4 Maneuver
2 Values
5 Graphs
3 Alarms
6 Parameters
Measured value indicator switch 3.2.3.1
Pressing this function field toggles between the three sets of measured
values (see chapter 3.2.2). The active set is indicated by a number in the
function field.
Values 3.2.3.2
Pressing this function field opens the "Values" sub-menu. This provides
an overview of the measured values currently determined by the
ventilator.
Fig. 17: Values sub-menu
Values
