3.7 Brackets
WARNING
When inserting the EVE
TR
into the bracket, never place your hands or fingers
between the device and the bracket. Otherwise, injuries due to crushing may result.
Make sure the device locks into place!
CAUTION
The safety catch of the brackets must be checked at least every four weeks for
intactness and correct functioning.
3.7.1 Ambulance bracket

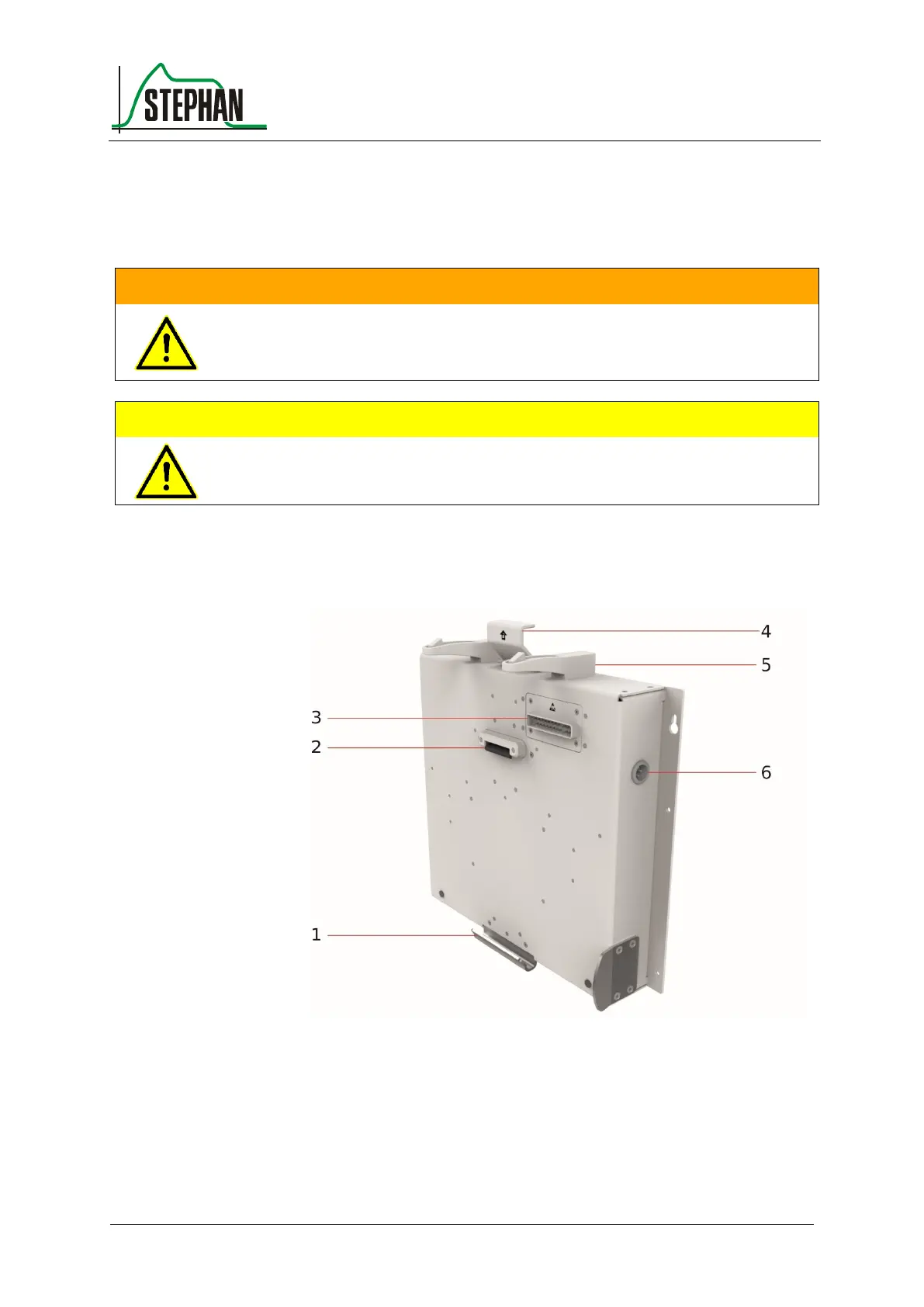

Fig. 42: Ambulance bracket
1 EVE
TR
attachment hook
4 Lock/unlock latch
2 EVE
TR
bracket
5 EVE
TR
safety catch
3 EVE
TR
interface
6 12/24 V on-board power
supply input
