Stephan EVETR - Graph; Parameter

3 Design and functional description
68
GA-070T-0518V2.7-HAO-EN
 Fritz Stephan GmbH
Graph 3.2.3.5
The "Graph" sub-menu lets you configure the appearance of the graphic
display (see chapter 3.2.9).
Parameter 3.2.3.6
Pressing this function field opens a sub-menu with all configurable
parameters and additional functions for the currently active ventilation
mode.

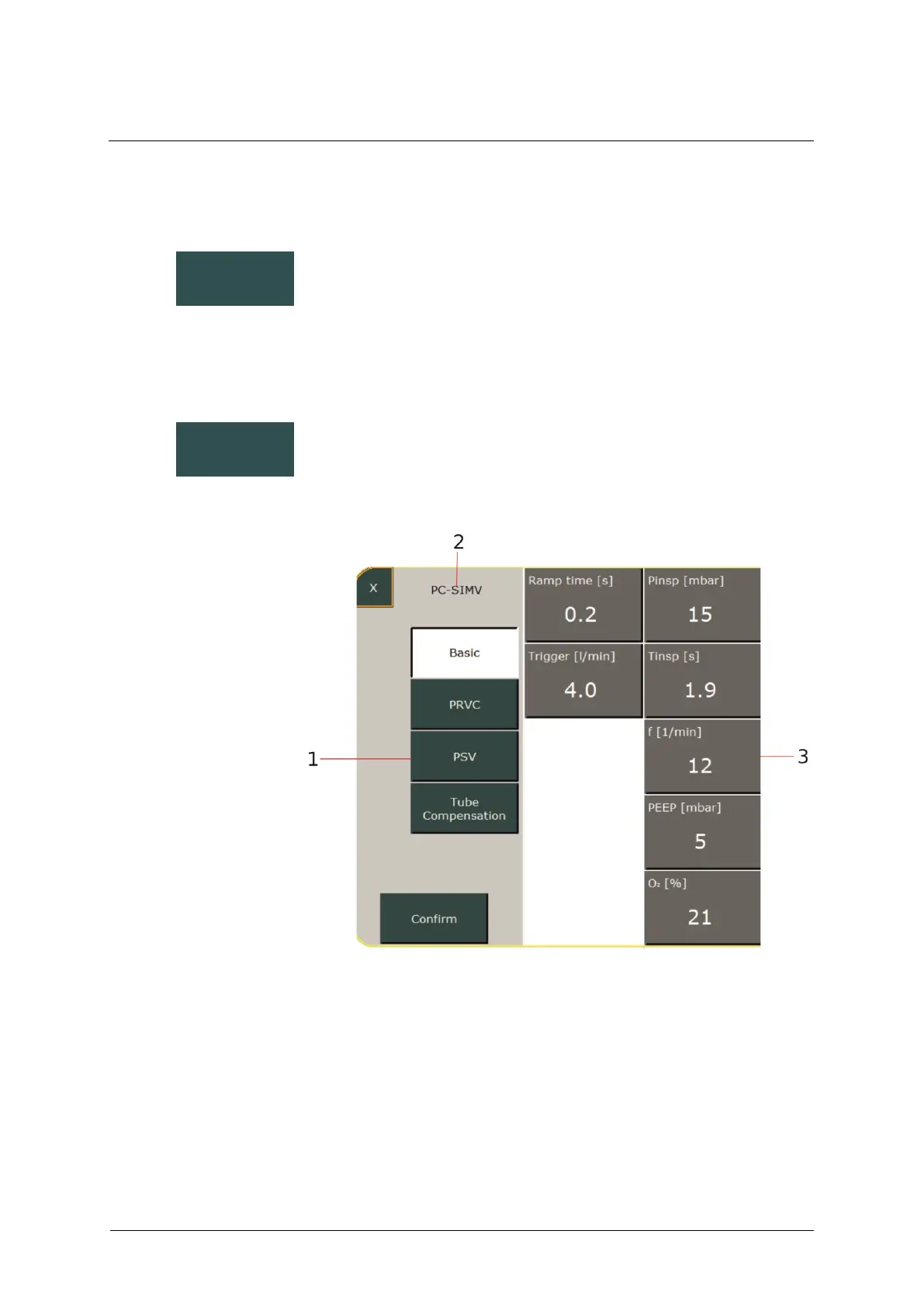

Fig. 24: Configurable parameters for standard SIMV ventilation
1 Optionally selectable
additional functions for the
ventilation mode
2 Current ventilation mode
indicator
3 Ventilation parameters
Graph
Parameter
