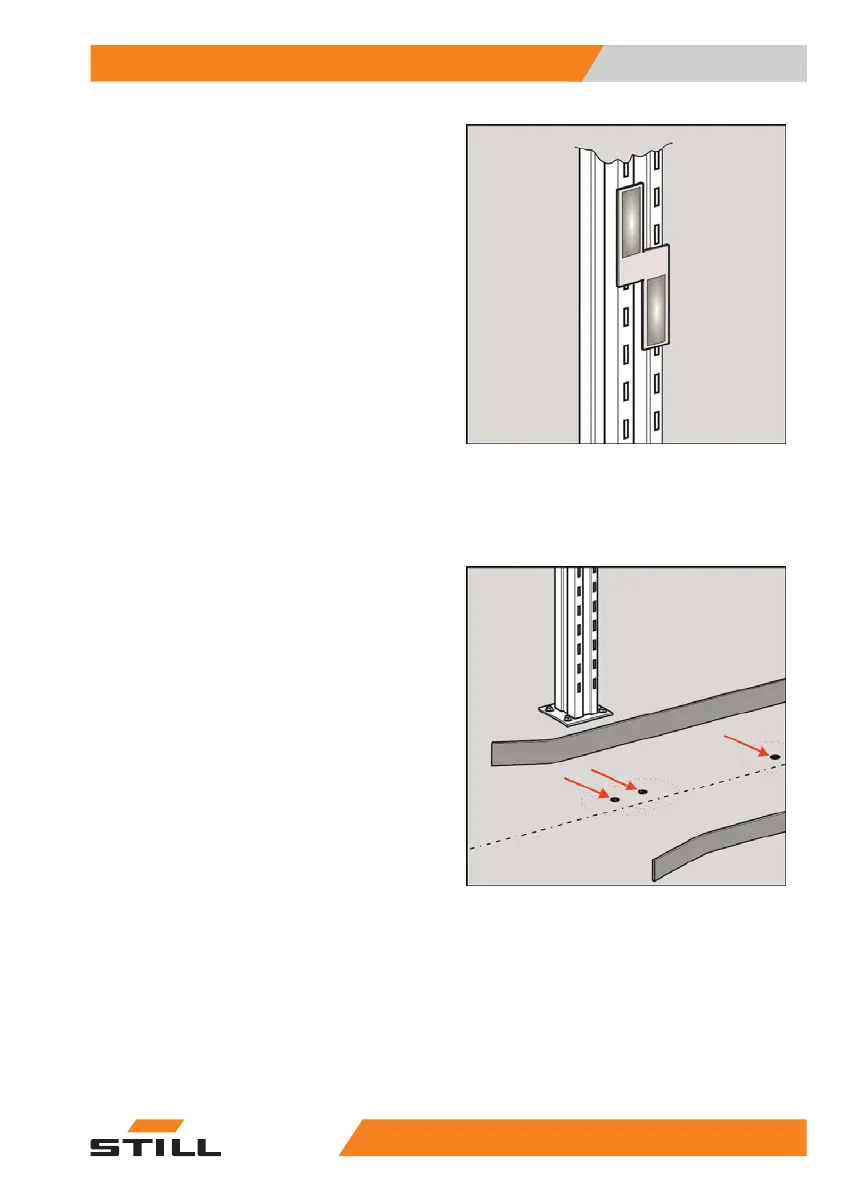

Reflective light switches and reflectors
Reflective light switches attached to the indus-
trial truck detect the reflectors in both drive di-
rections while the truck is in motion. The re-
flectors are attached to the uprights approx.
170 – 200 cm above the floor. The reflective
light switches can be attached to the industrial
truck and the reflectors to the rack on one or
both sides. The number of reflectors is deter-
mined by the functionality in the industrial
truck.
– Do not cover or adjust the reflective light
switches.
– Check the reflective light switches for con-
tamination.
– Check the reflectors for contamination and
damage, such as scratches.
– Do not cover the reflectors, e.g. with loose
packing material.
Magnetic system
The switching magnets are embedded in the
hall floor. They are located in approx. 35 mm
holes slightly outside the centre of the aisle at
different intervals. The magnet operated
switches are mounted to the load wheel axle
under the driver's cab. The number of switch-
ing magnets is determined by the functions in
the industrial truck. The switching magnets are
maintenance-free.
– Keep the aisle clear of objects.
Special equipment
7
Automatic braking systems
1315231 804 2502 EN - 04/2020
