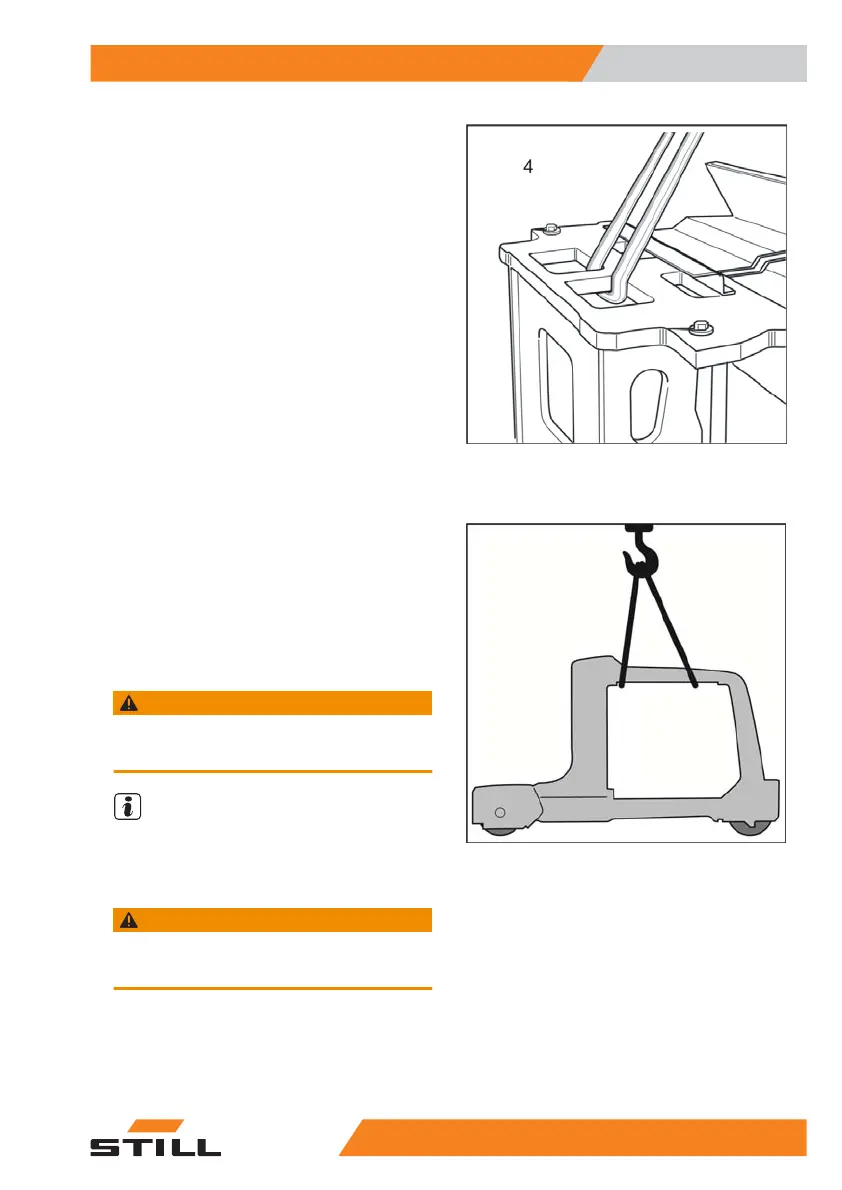

Lift mast, lower lifting point
At the lower end, a textile strap can be wound
around the middle crosspiece in the beam
support of the cab (4).
Loading the chassis
Electronic elements such as sensors and an-
tennas can be installed at different places in
the chassis according to the truck design. The
ground clearance of these elements is very
low. As a result, particularly when mounting
the chassis on a forklift truck fork and when fit-
ting supports, make sure that no pressure is
applied to these elements. Before mounting
on a forklift truck fork or before fitting a sup-
port, perform a visual inspection to determine
whether and where such elements should be
mounted on the industrial truck in question.
Hooking on the chassis
The cross beams above the battery compart-
ment serve as lifting points for the chassis. To
protect the paintwork of your industrial truck,
we recommend that you always use textile
slings. Shims protect the harnesses against
sharp edges.
WARNING
If the chassis is to be moved using the crane, always
remove the battery.
NOTE
The chassis must always be mechanically
braked unless the industrial truck is actually in
operation.
WARNING
Hydraulic oil can escape through disconnected hy-
draulic connections.
Operation
4
General commissioning
495231 804 2502 EN - 04/2020
