Two-hand driving operation
Operation of the industrial truck with two
hands is required within the aisles once the
controller has detected the corresponding sen-

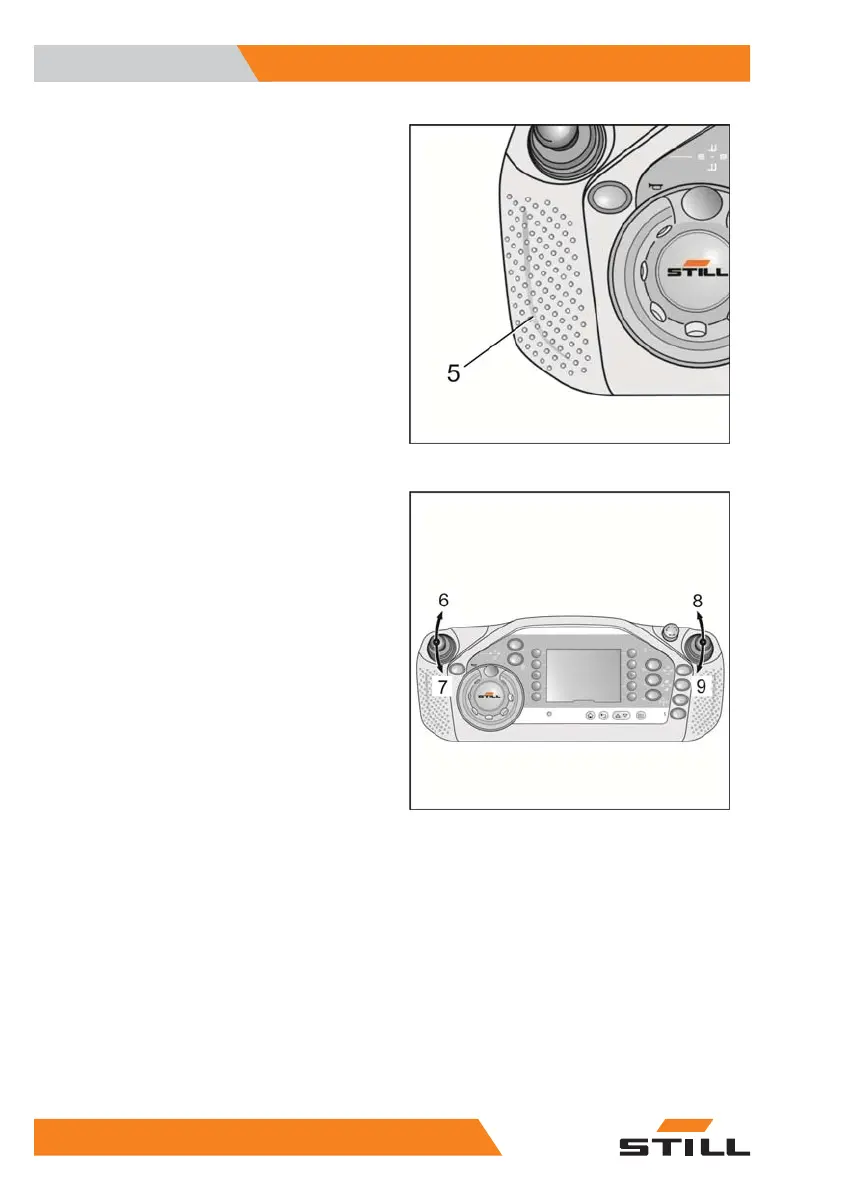

sor system. To drive, you also need to touch
the sensor surface on the left-hand end of the
operating panel (5) with your left hand.
Simultaneous functions
Different functions can be combined. For this
purpose, more than two operating devices
may need to be actuated at the same time.
Driving and main lift
In order to execute the two functions driving
and main lift simultaneously, both operating
levers must be moved accordingly. Moving the
left-hand operating lever in the direction of the
fork (6) activates lowering of the main lift.
Moving this operating lever in the direction of
the lift mast (7) activates lifting. The degree of
activation is always infinitely variable.
The drive direction and the driving speed are
selected using the right-hand operating lever.
Move the operating lever in the direction of the
fork (8) until the required driving speed in the
fork direction has been reached.
Move the operating lever in the direction of the
lift mast (9) until the required driving speed in
the direction of the lift mast has been reached.
Operation
4
Driving
72 5231 804 2502 EN - 04/2020
