Ancillary movements
All movements of the load apart from the main
lift are categorised as ancillary movements.
Standard functions are:
●
Sliding the fork.
●
Swivelling the fork.
●
Lifting the auxiliary lift.

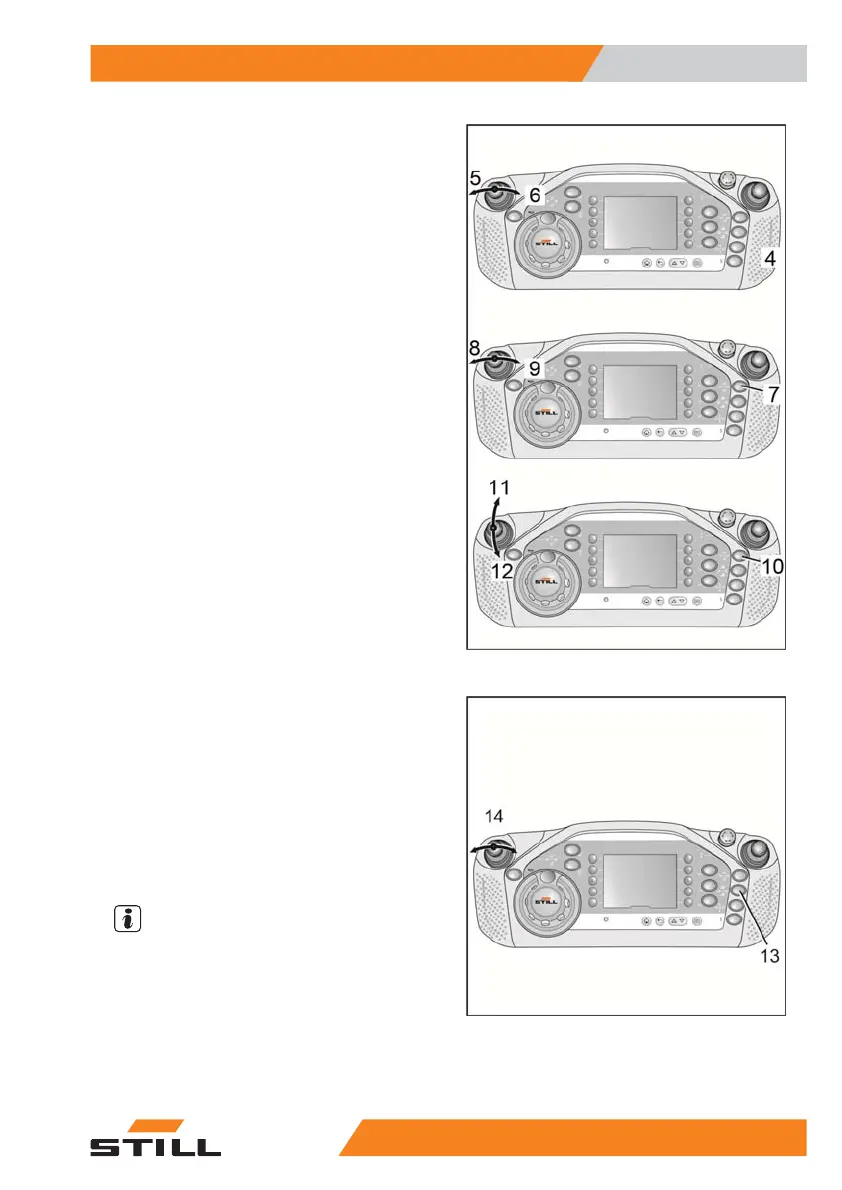

Touch the right-hand sensor surface(4) and
move the left-hand operating lever in the di-
rection (5) or (6) to trigger the reach move-
ment to the left or right.
Pressing button (7) and moving the left-hand
operating lever in direction (8) or (9) triggers
the swivel-shift movement to the left or right.
Pressing button (10) and moving the left-hand
operating lever in direction (11) or (12) triggers
the lifting or lowering of the auxiliary lift.
Swivelling and sliding the swivel fork
180° synchronously
Pressing selection key (13) and moving the
left-hand operating lever (14) to the right or left
triggers the synchronous movement. This
movement can be interrupted at any time or
continued in the opposite direction. To do this,
release the operating lever or the selection
key.
NOTE
The synchronous movement only starts when
the turret head is in one of its end positions.
When the synchronous movement reaches
the end, an acoustic signal is sounded. Al-
ways carry out the synchronous movement
until the end. The swivel fork is then in its right
or left end position.
Operation
4
Load pick up
775231 804 2502 EN - 04/2020
