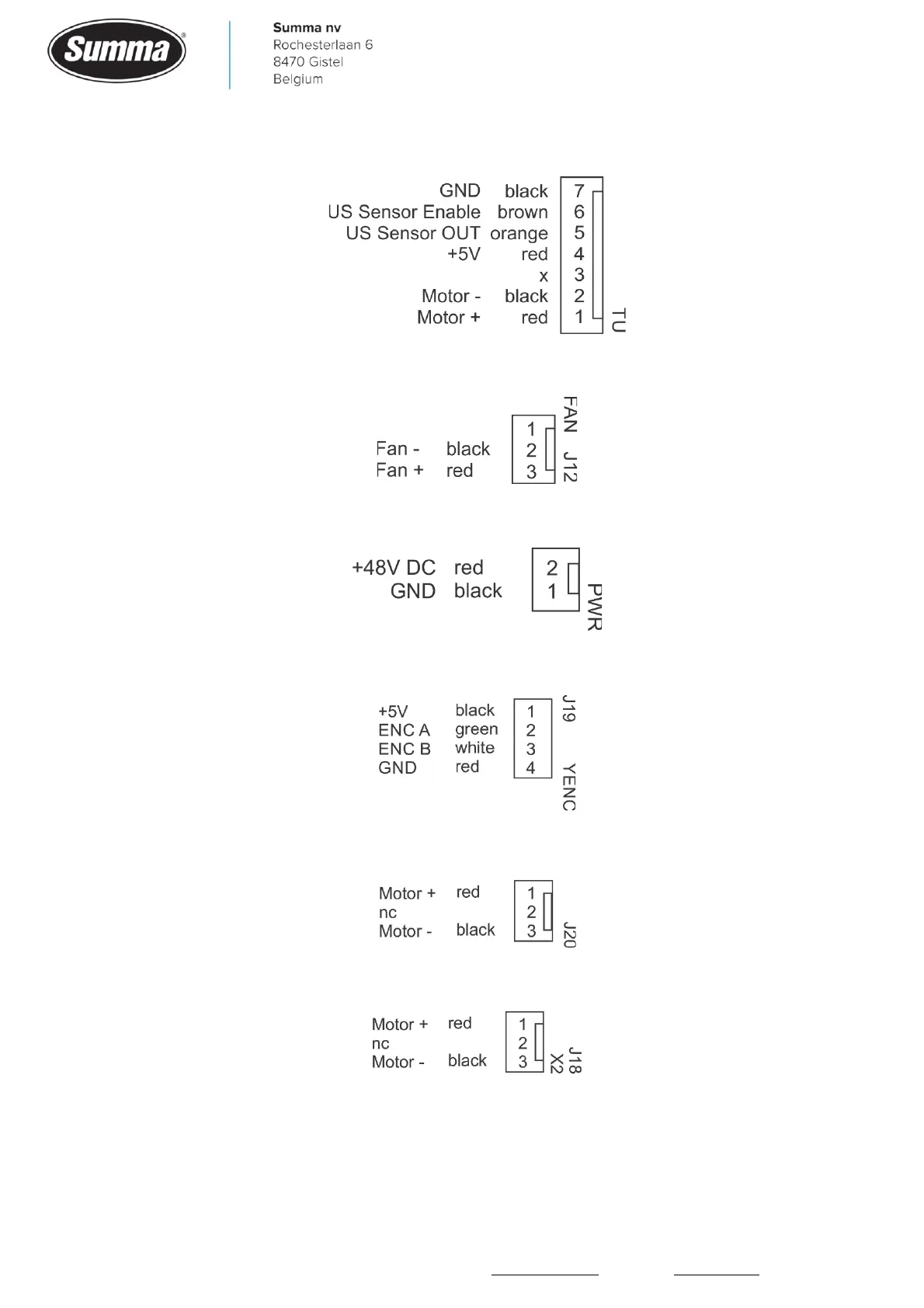

11. J14: Take up roll sensor and motor (Driven by U20)
12. J12: Fan (Driven by Q4)
13. J40: Power entry 48V
14. J19: Y-encoder
15. J20: Y-motor (Driven by U24)
16. J18: X2-motor (Driven by U23) (not used on model 75)
