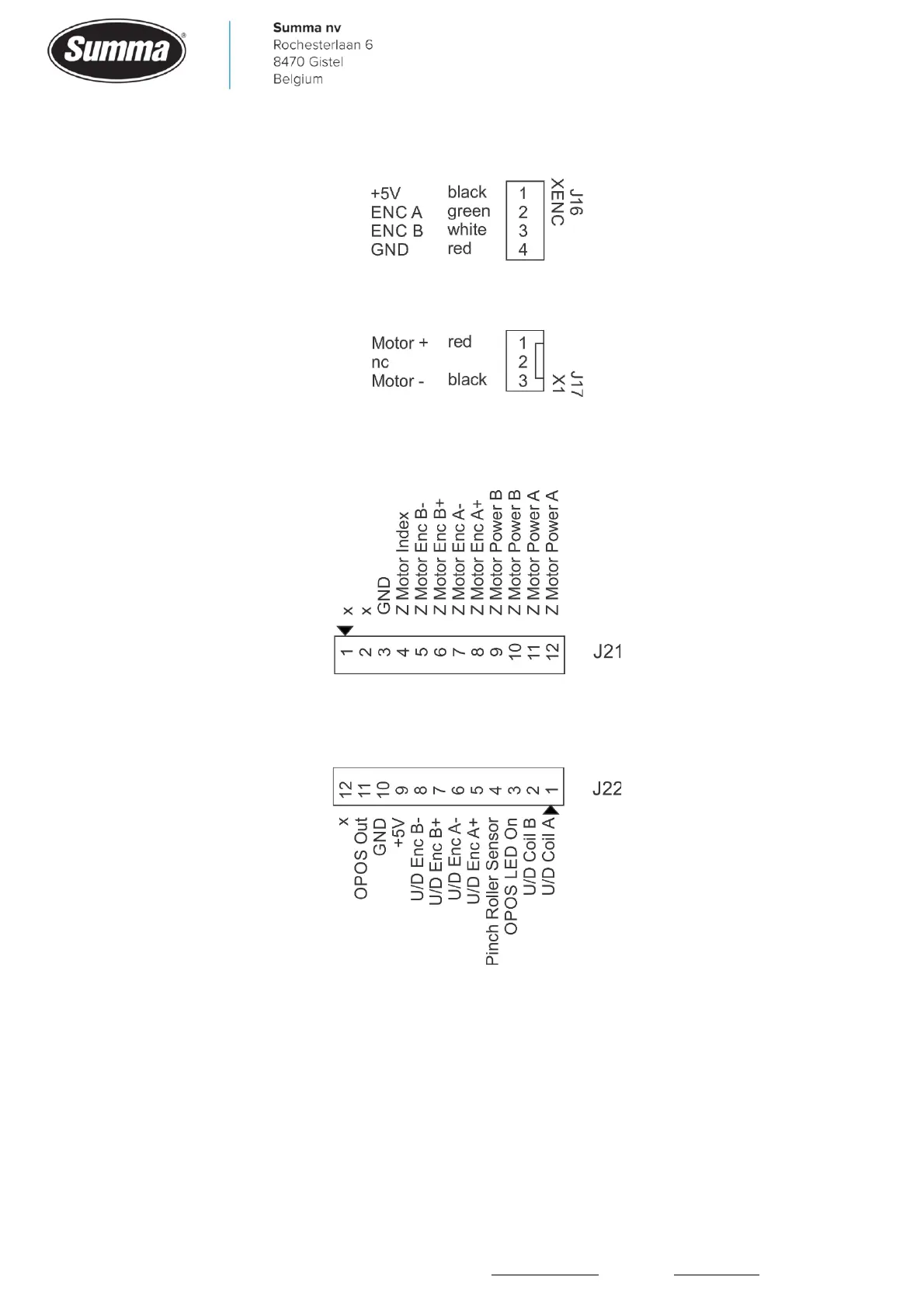

17. J16: X-encoder
18. J17: X1-motor (Driven by U22)
19. J21: Cutter head flat cable HEAD 2: Z-motor (Driven by U28) and encoder (Tangential
Head only). Connects to J9 on the cutter head.
20. J22: Cutter head flat cable HEAD 1: Coil (Driven by U27), up-down encoder, Cam sensor,
OPOS. Connects to J5 on the cutter head.
