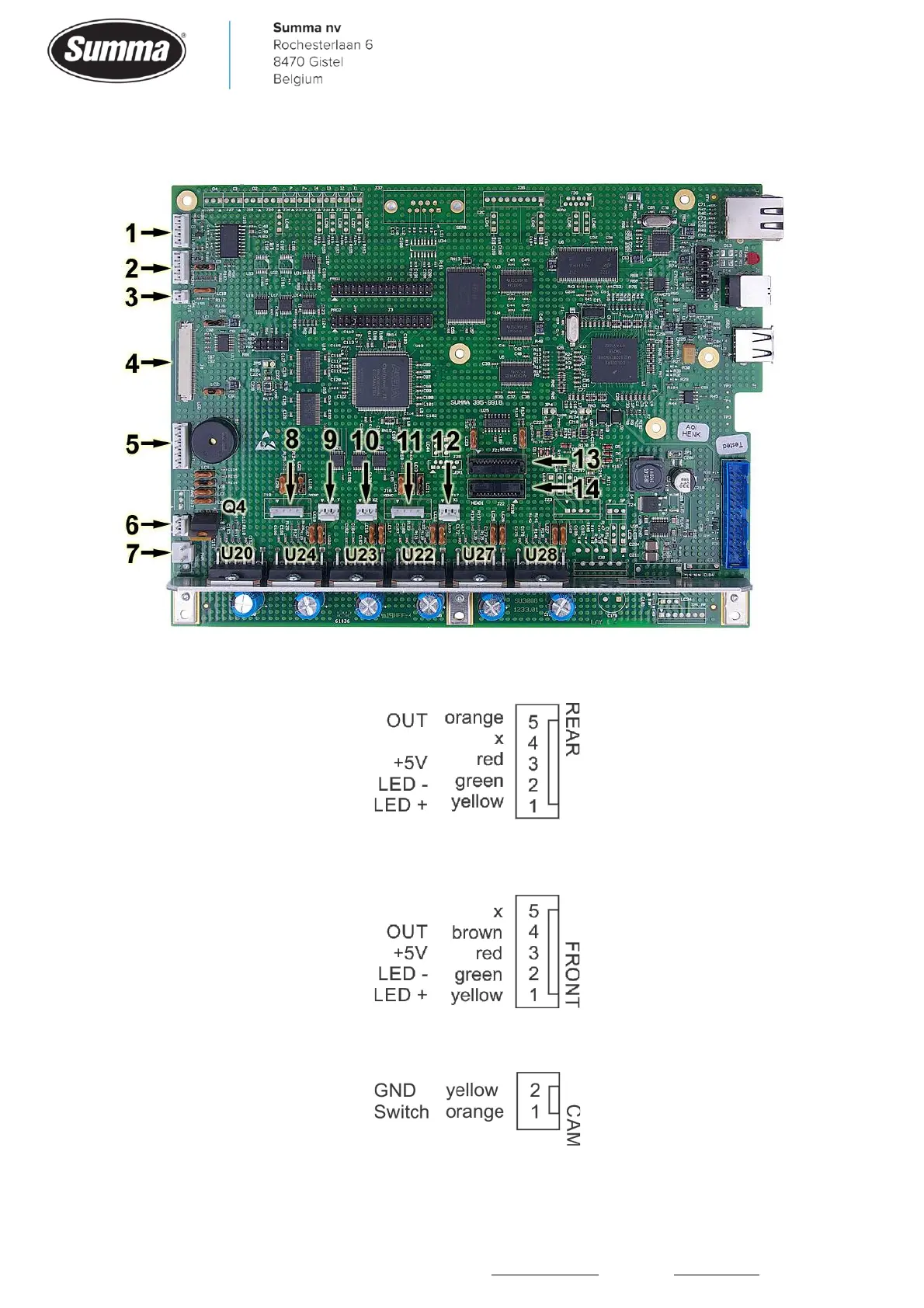

10.4 Main board connectors
7. J11: Rear media sensor
8. J10: Front media sensor
9. J15: Pinch roller handle switch
10. J8: LCD flat cable
