7-18 MID UNIT

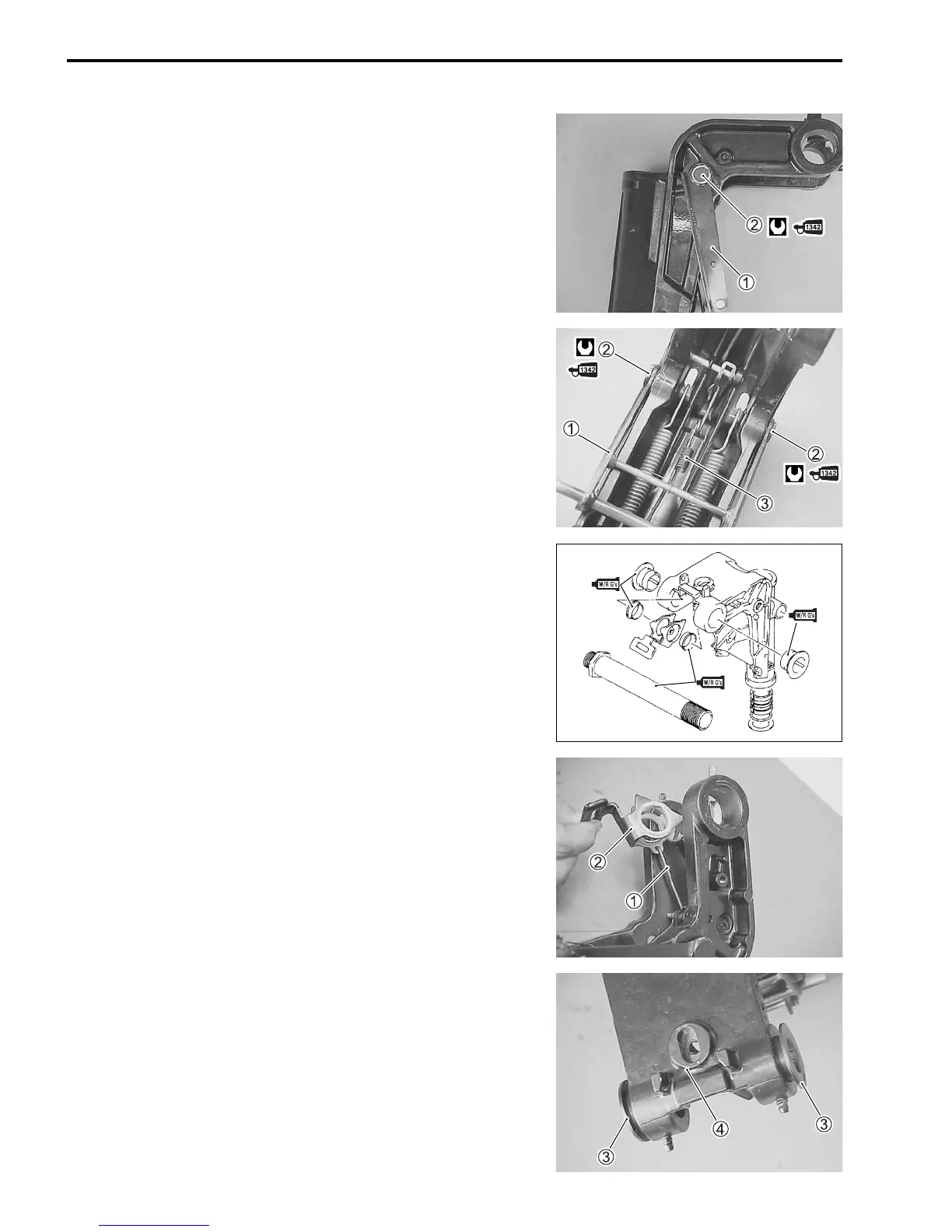

SHALLOW DRIVE ARM
• Install shallow drive arm 1.
• Tighten shallow drive arm bolts 2, pre-coated with thread
lock, to specified torque.
99000-32050 : THREAD LOCK “1342”
Shallow drive arm bolt : 25 N·m (2.5 kg-m, 18.0 lb-ft)
• Install arm spring 3 as shown.
CLAMP BRACKET AND SWIVEL BRACKET
NOTE:
Before installing clamp bracket to swivel bracket, apply grease
to clamp bracket shaft and bushings.
99000-25161: SUZUKI WATER RESISTANT GREASE
1. Connect the release link 1 to release lever 2.
2. Insert PORT and STBD bushings 3 into the swivel bracket
4.
To Next Page
