MID UNIT 7-19

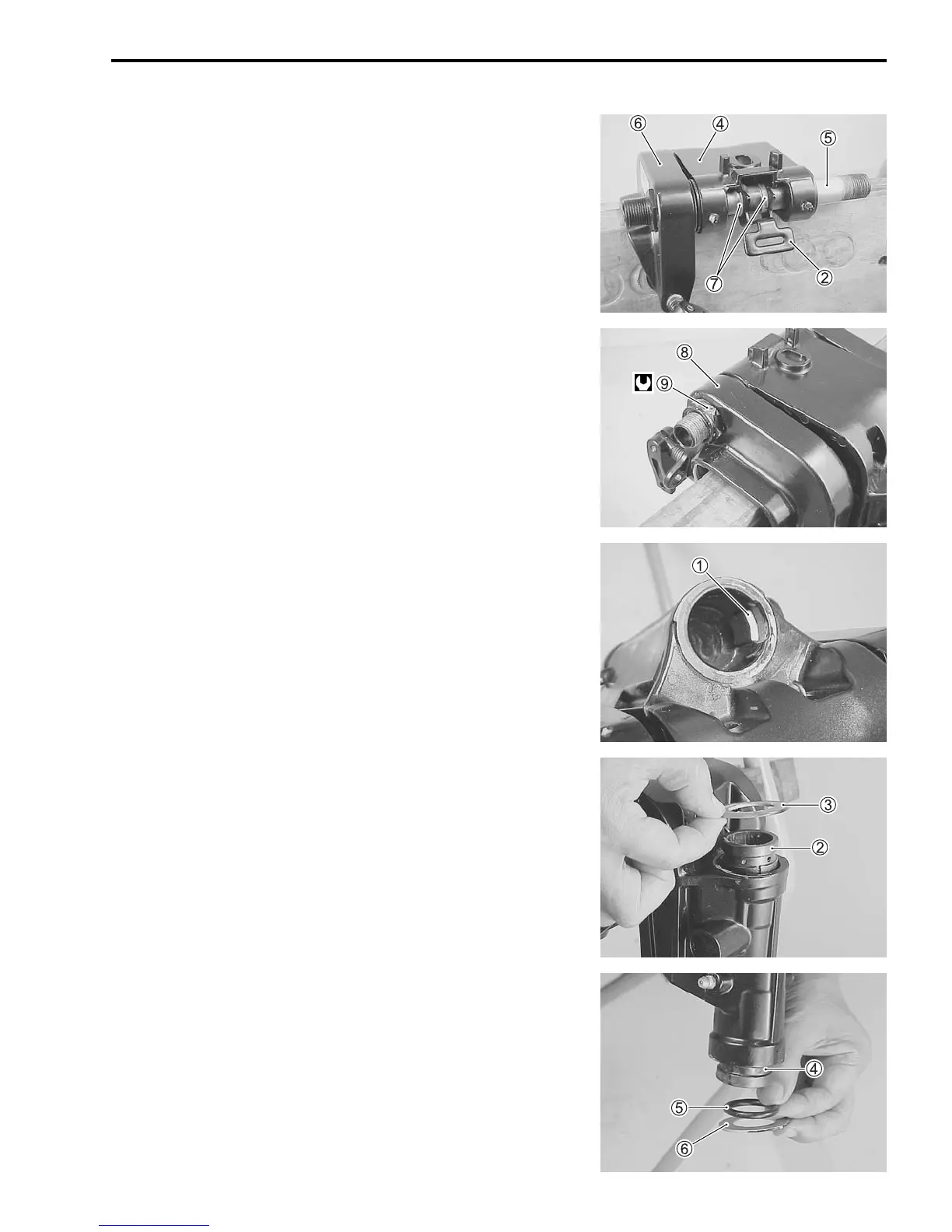

3. Assemble the clamp bracket shaft 5, STBD clamp bracket
6, release lever 2, bushings 7 and swivel bracket 4.
4. Install PORT clamp bracket 8 and clamp bracket shaft nut
9.
Tighten clamp bracket shaft nut 9 to specified torque.
Clamp bracket shaft nut : 43 N·m ( 4.3 kg-m, 31.0 lb-ft )
STEERING BRACKET
1. Install the steering adjuster plate 1 to swivel bracket.
99000-25161: SUZUKI WATER RESISTANT GREASE
NOTE:
Apply grease to bushings, O-ring and pilot shaft portion of steer-
ing bracket.
2. Install upper bushing 2, washer 3 to swivel bracket.
NOTE:
• The bushing 2 · 4 outside face is tapered.
Install the bushing into the swivel bracket with the smaller
diameter side being inserted first.
• Be certain that steering adjuster 1 is placed between upper
bushing 2 and swivel bracket casing.
3. Install lower bushing 4, O-ring 5 and washer 6 to swivel
bracket.
