DF9.9T/TH “K8” (’08) MODEL 12-23
INSTALLATION

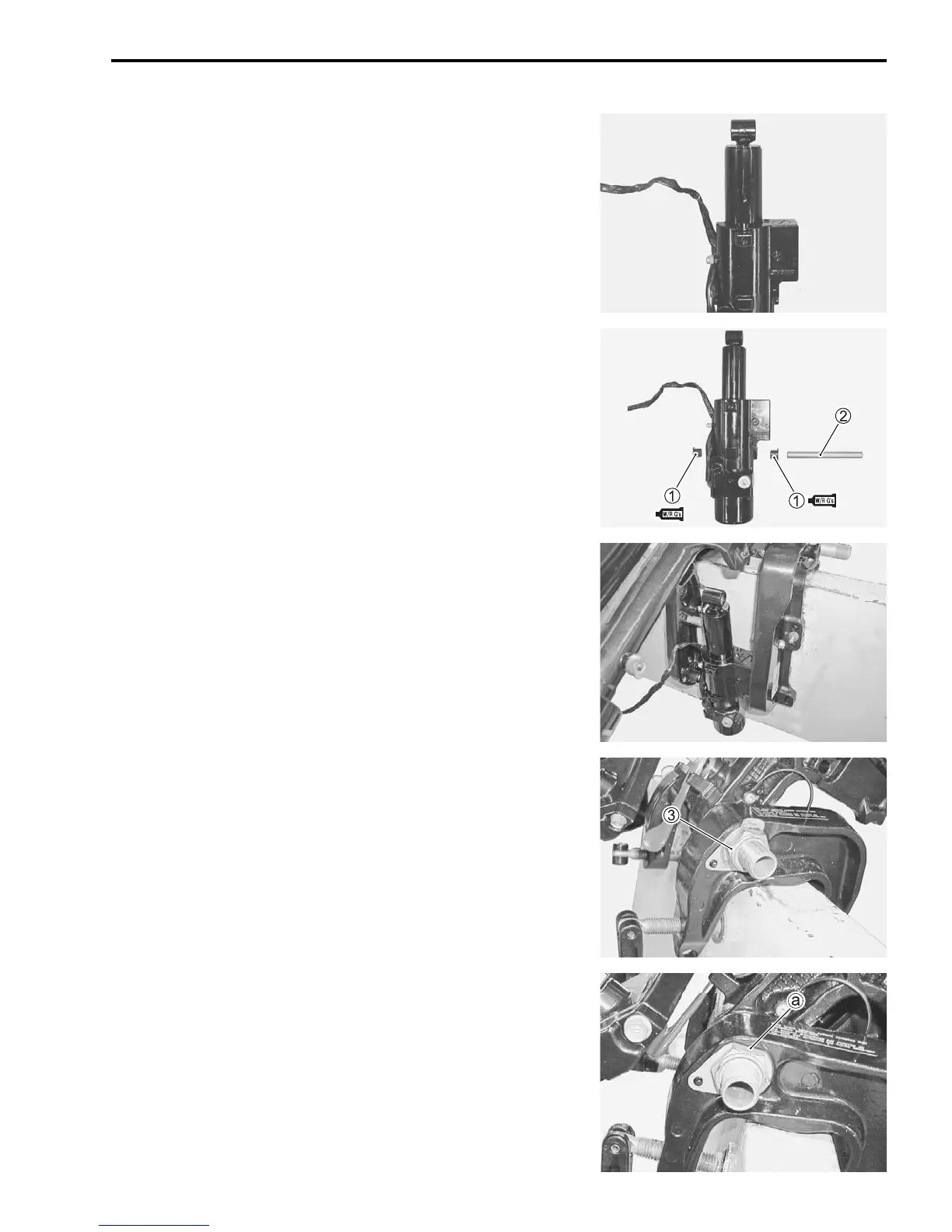

Installation is reverse order of removal with special attention to
the following steps.
Lower tilt rod to full down position.
09945-79310: PT cable extension
Apply Water Resistant Grease to the tilt cylinder lower shaft and
lower shaft bushes.
Install bushes 1 and tilt cylinder lower shaft 2 to PT unit.
99000-25161: SUZUKI WATER RESISTANT GREASE
Place the PT unit in position between the clamp brackets.
Tighten the clamp bracket shaft nut 3 to specified torque.
Clamp bracket shaft nut: 43 N·m (4.3 kg-m , 31.0 lb-ft)
NOTE:
After tightening clamp bracket shaft nut with specific torque,
bend lock washer edge a toward nut for locking.
