12-24 DF9.9T/TH “K8” (’08) MODEL

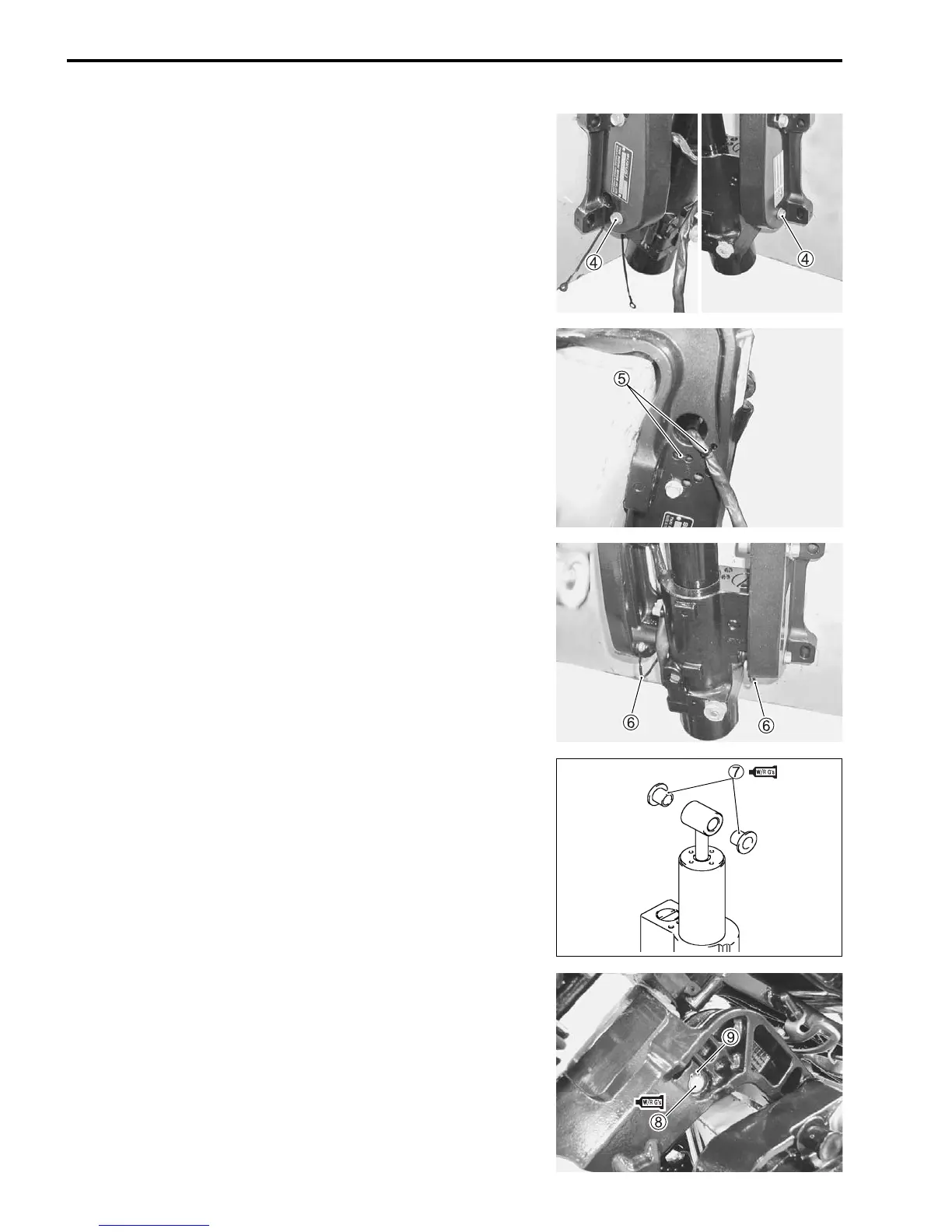

Tighten two (2) tilt cylinder lower shaft bolts 4 to specified
torque.
Tilt cylinder lower shaft: 17 N·m (1.7 kg-m, 12.5 lb-ft)
Route the PT motor cable in through the PORT clamp bracket
and fix the PT motor cable with cable tie 5.
Install bonding wires 6, then tighten screws securely.
Apply Water Resistant Grease to tilt rod upper bushes 7, then
install bushes in tilt rod.
Operate the PT motor to extend the tilt rod upward.
Align the tilt rod with the hole in the swivel bracket as the tilt rod
extends.
99000-25161: SUZUKI WATER RESISTANT GREASE
Apply Water Resistant Grease to the tilt rod upper shaft 8, then
insert the shaft through the swivel bracket and tilt rod.
99000-25161: SUZUKI WATER RESISTANT GREASE
Secure the upper shaft with the snap ring 9.
To Next Page
