12-40 DF9.9T/TH “K8” (’08) MODEL
DF9.9TH
DF9.9T

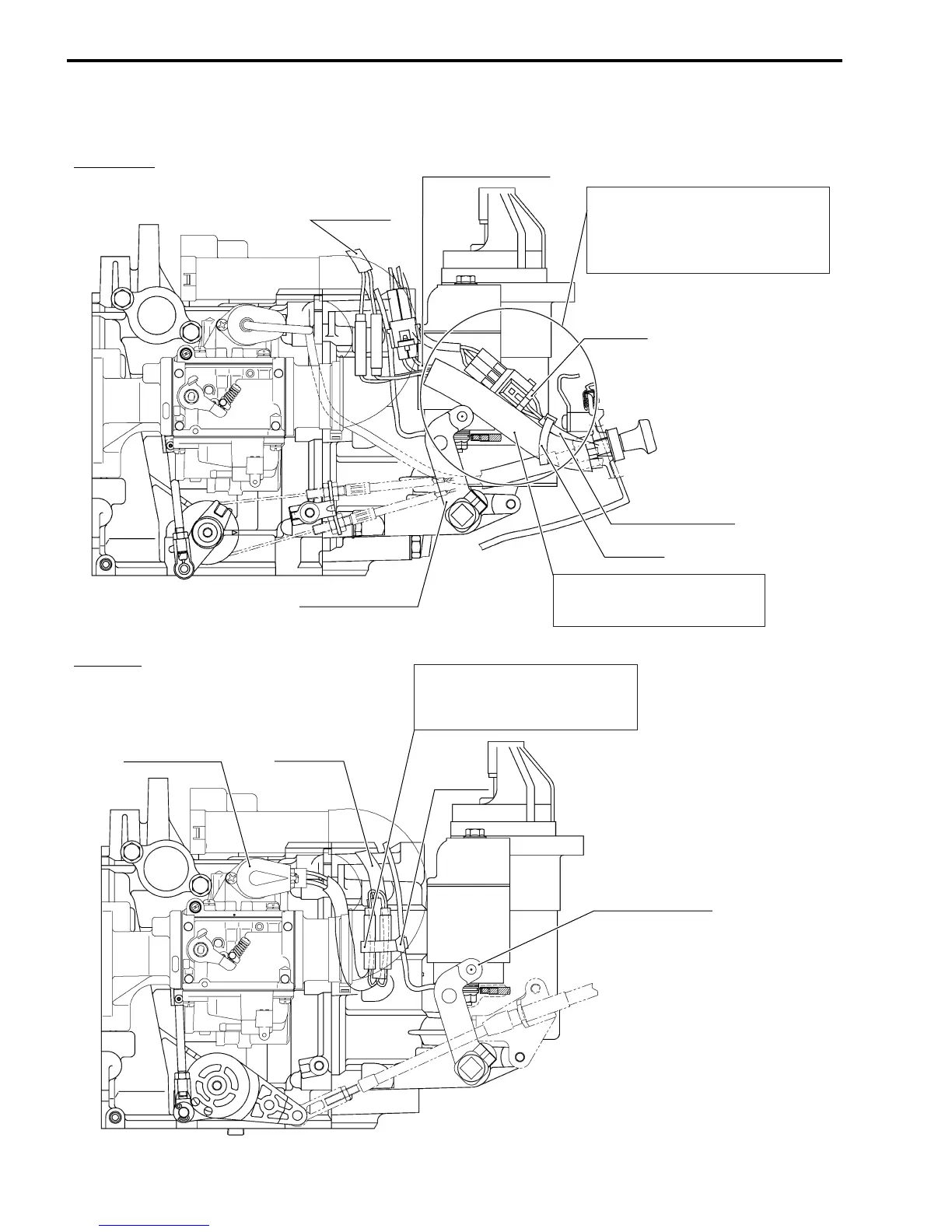

The lead wires are bundled and
clamped so that the auto-enrichener
lead wires do not interfere with the
clutch control lever.
Cable tie
PTC heater
lead wire
Auto-enrichener
(PTC heater)
Route starter switch lead wire and
emergency & engine stop switch
lead wire in tube.
Emergency & engine
stop switch lead wire
Clutch control lever
Starter switch
lead wire
PT switch
connector
Clutch control lever
Cable tie
Tube
PT switch lead wire
Route the PT switch lead wire so that
the PT switch connector should not
interfere with the clutch lever, and set
the connector to the position shown in
the illustration.
To Next Page
