IGNITION AND ELECTRICAL 3-21

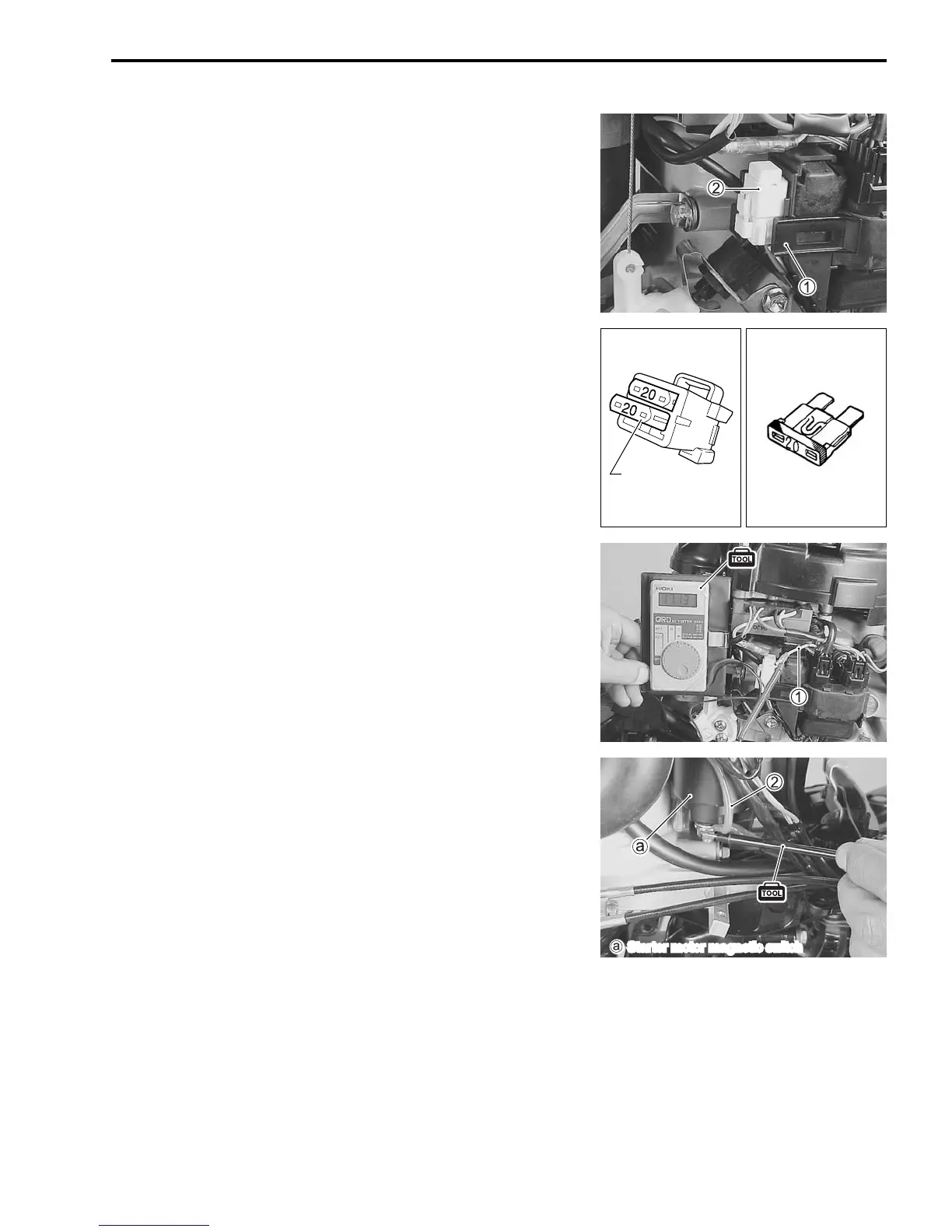

FUSE CASE/FUSE
09930-99320: Digital tester
Tester range: (Continuity)
Fuse
1. Remove the plate 1 by sliding it upward.
2. Remove the fuse from fuse case 2.
3. Inspect the fuse and replace with a new 20-amp fuse if
needed.
Fuse case
1. Disconnect battery cables from battery.
2. Disconnect white lead wire of rectifier from engine wire har-
ness.
3. Check continuity between White lead wire 1 of engine wire
harness and Red lead wire 2 of starter motor magnetic
switch “B” terminal.
If no continuity is indicated, replace engine wire harness and/or
fuse.
Fuse
=
Starter motor magnetic switch
