Suzuki RM-Z450 - Page 249

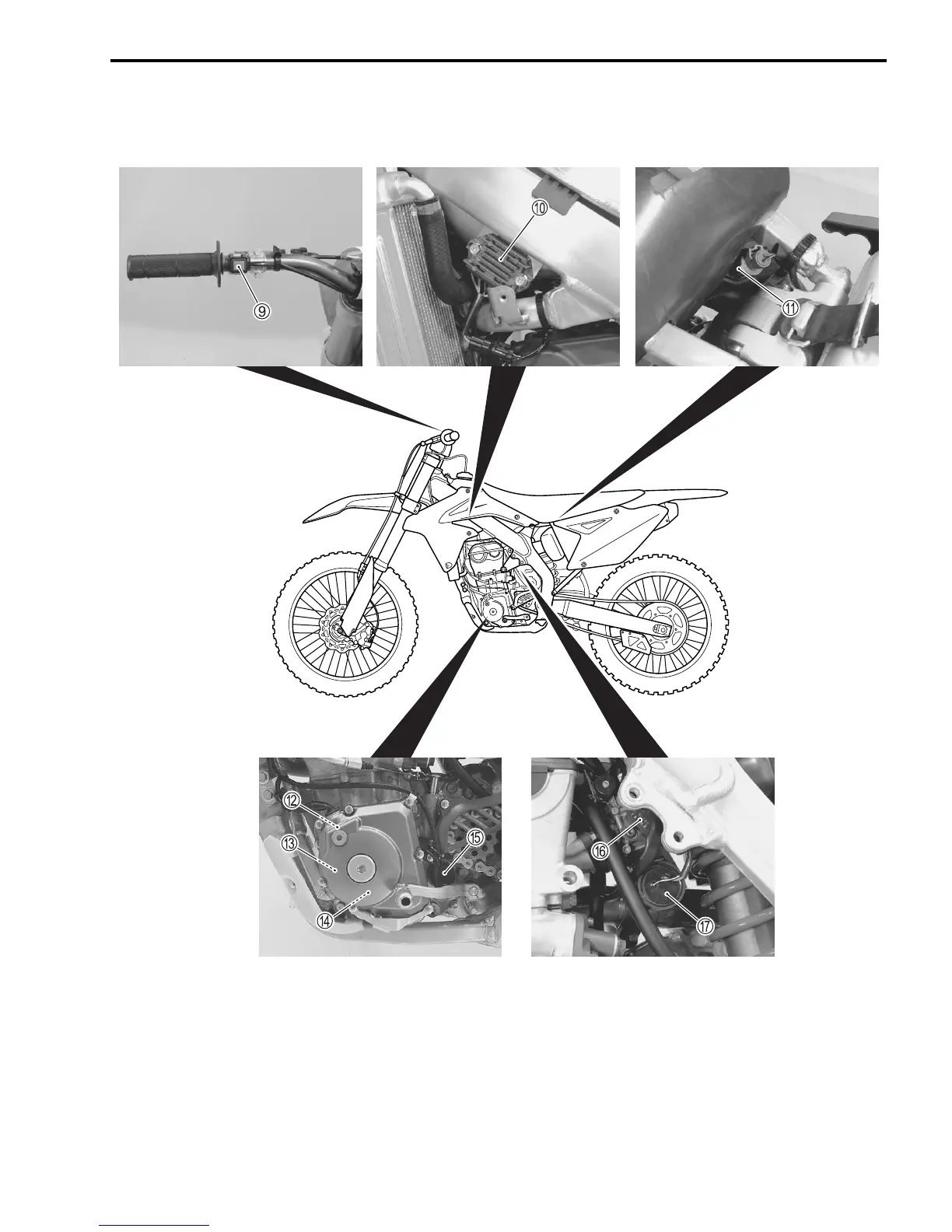

ELECTRICAL SYSTEM 15-6

9 Engine stop switch(!15-16)

D Magneto (!15-9)

0 Regulator/Rectifier (!15-10)

E GP switch (!12-38)

A IAT sensor (!12-34)

F TP sensor (!12-27)

B CKP sensor (!12-25)

G Condenser

C Crankshaft rotation signal sensor (!12-44)
