5. ENGINE REMOVAL
To this chapter contents

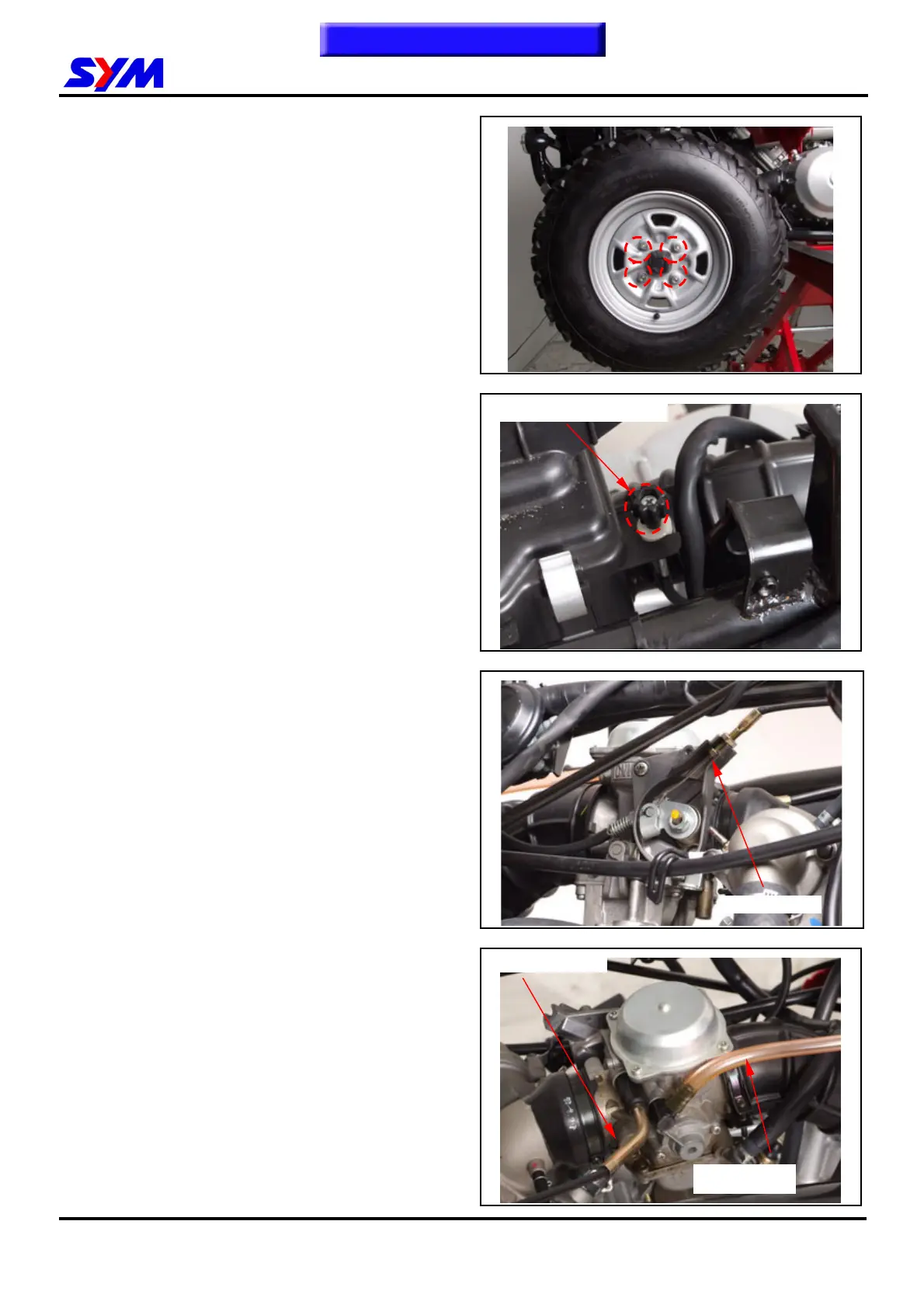

Remove the front left and rear left tires.
Remove the idle speed adjustment nut.
Remove 2 bolt on the muffler.
Remove the muffler.
Remove the throttle cable.
Remove 2 nuts and 1 bolt.
Remove the exhaust pipe.
Remove the choke cable and ventilation tube.
Remove 2 nuts, and then remove exhaust pipe.
Idle speed adjustment nut
Throttle cable
Choke cable
Ventilation tube
5-3
