5. ENGINE REMOVAL
5-4

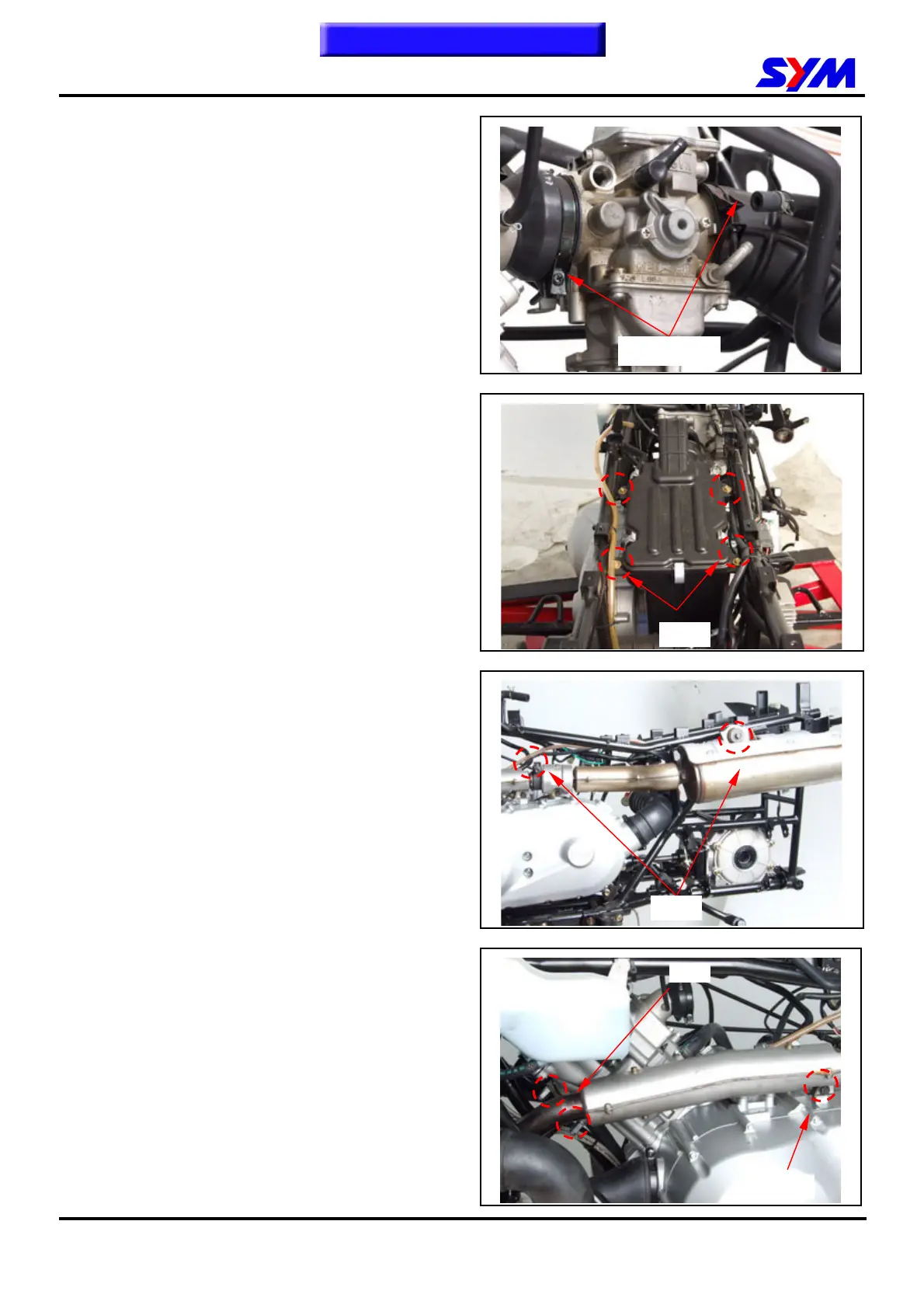

Remove 2 manifold clamps.
Remove the carburetor.
Remove 4 bolts.
Remove the air cleaner.
Remove 2 bolts.
Remove the muffler.
Remove 2 nuts and 1 bolt.
Remove the exhaust pipe.
Manifold clamps
4 bolts
2 bolts
2 nuts
Bolt
