2.4 Pi Check
Displays the status of pulse input. In the maintenance main menu of Fig. 1.3.1, select "Pi Check," and press the
<
> key to display the Pi check screen shown in Fig. 2.4.1.
To go back to the maintenance main menu, press the <
> key.

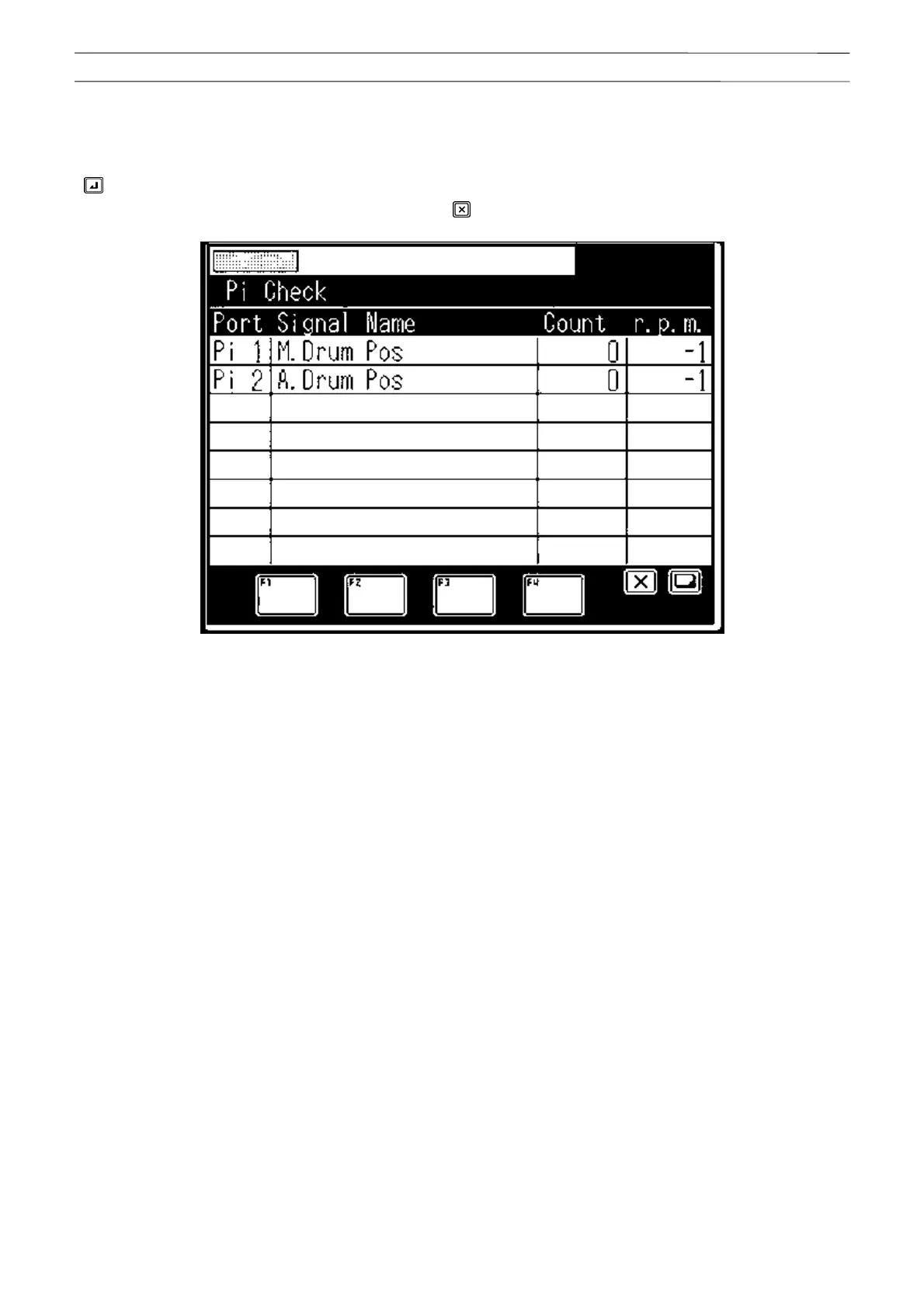

Fig. 2.4.1 Pi check screen
<Description of display contents>
Port
PiA1 to PiA2: 2-phase pulse input
Pi1 to Pi3: Single phase pulse input
Count: Pulse integrated value (Positive value to negative value)
r.p.m.: Winch drum rotation speed
