Chapter C Chapter C
Maintenance Mode
83
W301-0411E
1.3 Mode Shift and Menu Structure
1.3.1 Shift to Maintenance Mode
In the user mode, when all the three keys of the <
> key, the < > key, and the < > key are pressed and held
simultaneously for 0.5 seconds or more, the mode shifts to the maintenance mode.
When the maintenance mode is entered, the liquid crystal display (LCD) shows the maintenance main menu as
shown in Fig. 1.3.1.

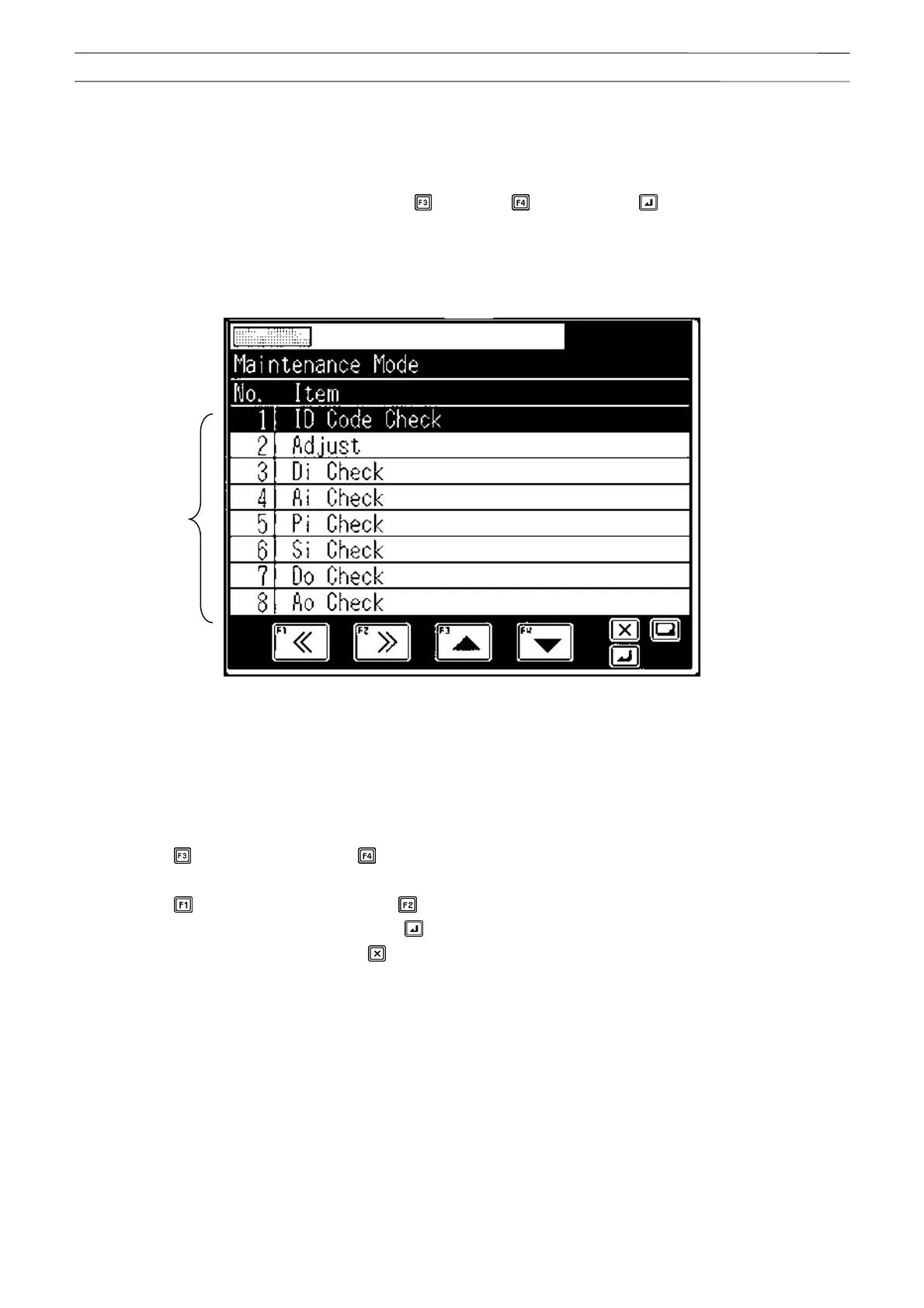

Fig. 1.3.1 Maintenance main menu display
1.3.2 Menu Selection
Pressing the <
> key (scroll up) or the < > key (scroll down) changes the selected maintenance menu item
(highlighted).
Pressing the <
> key (previous page) or the < > key (next page) changes the pages.
With the targeted menu selected, pressing the <
> key starts the selected menu.
To quit the maintenance mode, press the <
> key while the maintenance main menu is being displayed.
Maintenance
menu items
To Next Page
