Chapter C Chapter C
Maintenance Mode
114
W301-0411E
2.18 Meter Adjustment
[NOTICE]
When replacing the DCU (display control unit), adjust the meters in the following procedure.
･ Adjust the meters to the values shown on the combination meter.
･ In the case that the combination meter has been replaced, adjust the meters shown by HELLO-NET.
Case Value to be refered to
DCU is replaced. Display on combination meter
Combination meter has been replaced, and
now DCU is replaced.
HELLO-NET
When the combination meter is displayed, the meter adjustment described here is not necessary.
Note: Hourmeter indication and odometer indication on the HELLO-NET shows the data calculated by DCU,
independent from the combination meter.
When the DCU is replaced, the calculated data is reset and the data cumulating from the day when the
DCU is replaced is shown.
Adjusts the hour meter and odometer when the meter information is being received from the CAN port to ICF.
In the maintenance main menu of Fig. 1.3.1, select "Meter Adjust," and press the <
> key to display the meter
adjustment screen shown in Fig. 2.18.1.

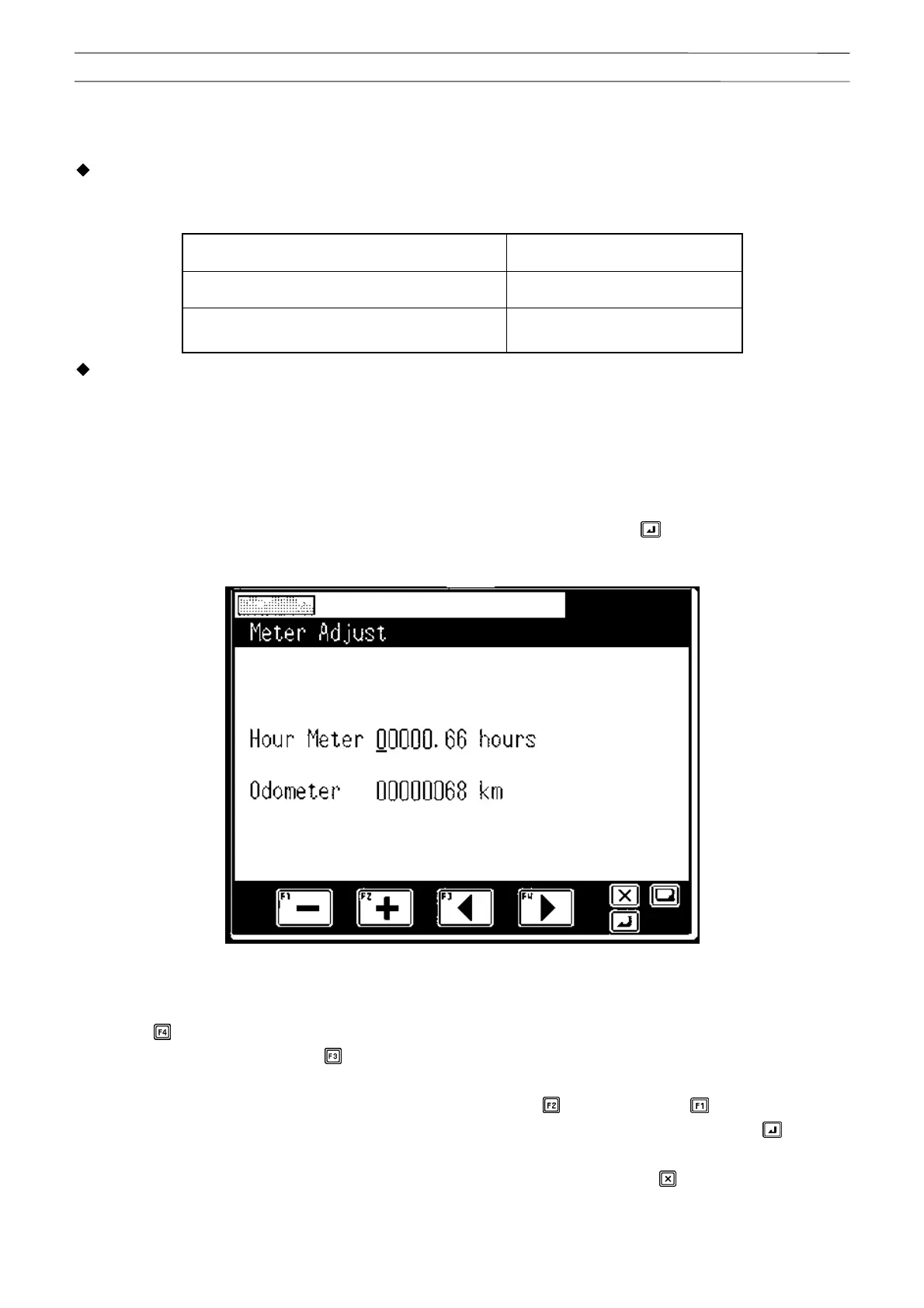

Fig. 2.18.1 Meter adjustment screen
<Operation method>
Using the <
> key (forward), move the " _ " (cursor) to the right, and to the next item (from the rightmost
position of current item). Using the <
> key (back), move the cursor to the left, and to the previous item (from
the leftmost position of current item).
The numerical values at cursor are increased/decreased using the <
> key (+) and the < > key (-).
After setting to the numerical values which show in the Instrument Panel, are completed, press the <
> key to
register the setting.
To go back to the maintenance main menu without registering the setting, press the <
> key.
