Tadano AML-C User Manual

Chapter D
Chapter DAdjustment mode
156
W301-0411E
D-2 Detector Adjustment
2.1 Length and Angle Adjus
tment Screen

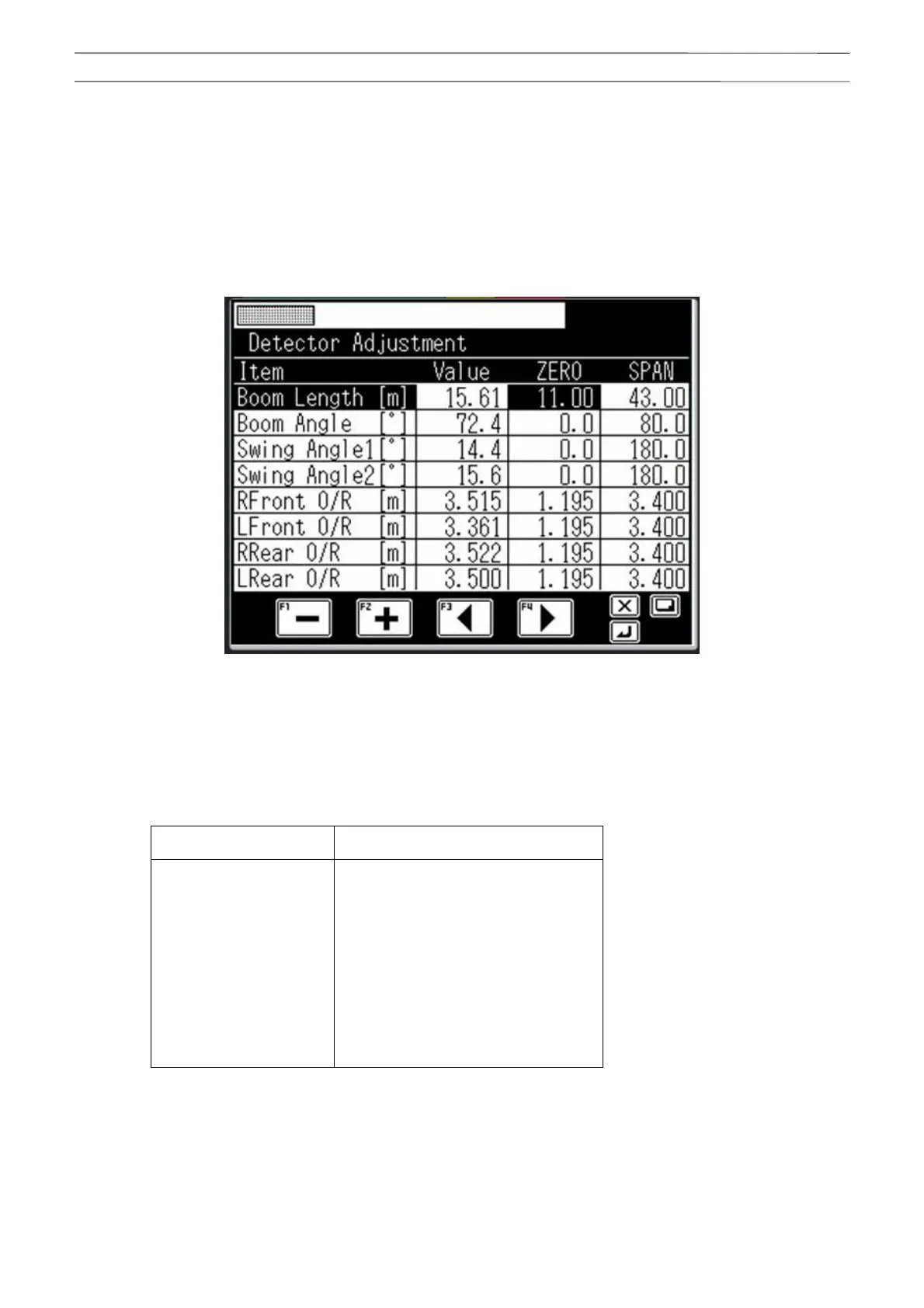

When "Detector Adjustment" is selected in the adjustment main menu, the detector adjustment screen appears
on the LCD as shown in Fig. 2.1.1.
Fig. 2.1.1 Detector adjustment screen
Table 2.1.1 shows the list of adjustment items.
Table 2.1.1 Detector adjustment item list
Adjustment item Detector to be adjusted
Boom Length
Boom Angle
Swing Angle1
Swing Angle2
RFront O/R
LFront O/R
RRear O/R
LRear O/R
Boom length detector
Boom angle detector
Swing angle detector 1
Swing angle detector 2
Right Front outrigger length detector
Left Front outrigger length detector
Right Rear outrigger length detector
Left Rear outrigger length detector
