Tadano AML-C User Manual

Chapter A Chapter A
Components of AML System
7
W301-0411E
1.2.3 Control switches

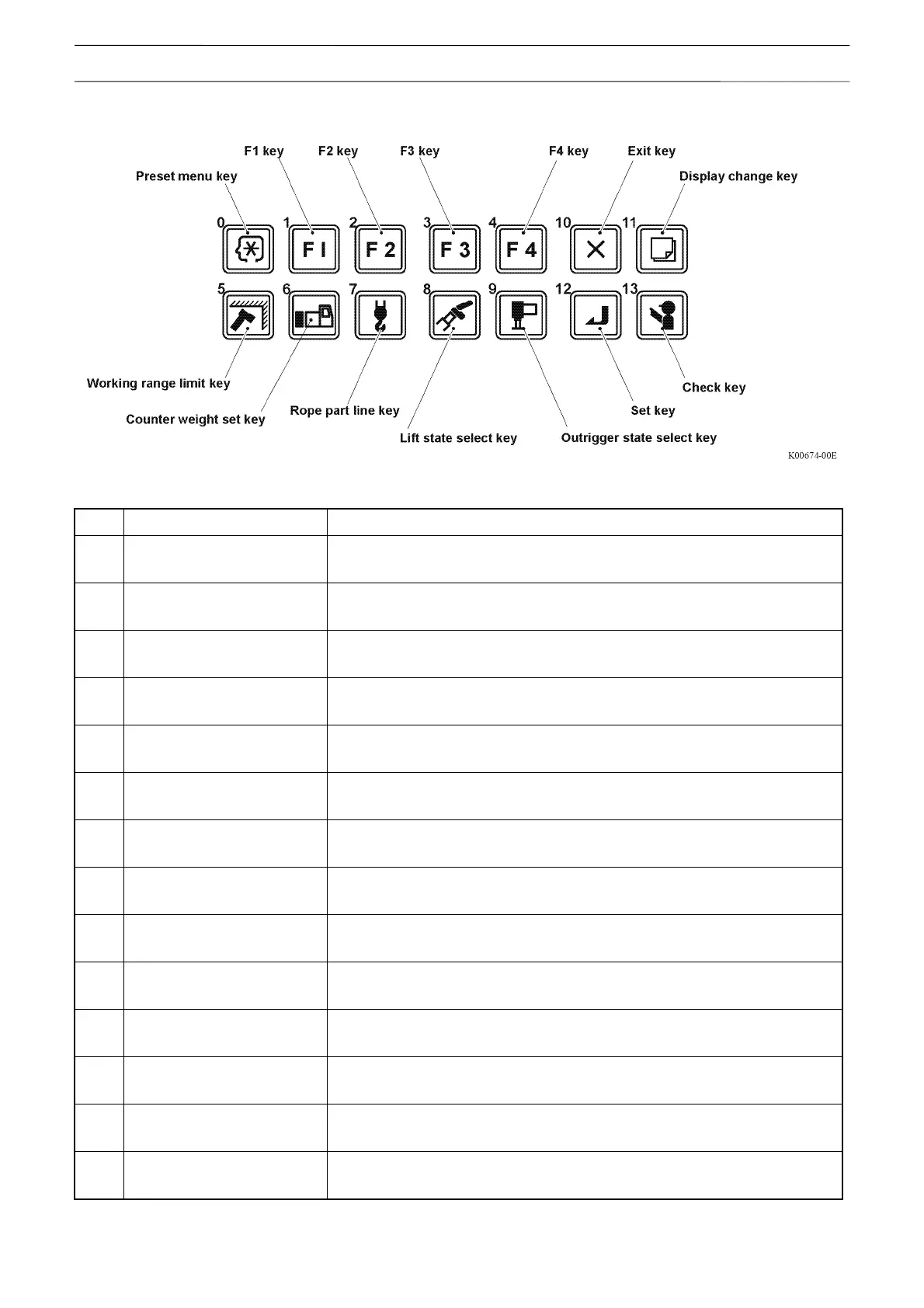

Table 1.2.3
No. Name Description
0 Preset menu key Used for go to the preset menu.
1 F1 key Used to select the function shown as “F1” in the pop-up window.
2 F2 key Used to select the function shown as “F2” in the pop-up window.
3 F3 key Used to select the function shown as “F3” in the pop-up window.
4 F4 key Used to select the function shown as “F4” in the pop-up window.
5 Working range limit key Used to register/cancel the working range limit.
6 Counterweight set key Used to select the mass of the mounted counterweight on AML.
7 Rope part line key Used to select the number of part lines on AML.
8 Lift state select key
Used to select the lift state (boom, jib in various length and offset angle)
on AML.
9 Outrigger state select key Used to select the outrigger extension width on AML.
10 Exit key Used to close the pop-up window.
11 Display change key Used to change the display content.
12 Set key Used to confirm (register) the selected state.
13 Check key Used during pre-operational inspection.
