47
W301-0411E
Chapter B Chapter B
User Mode

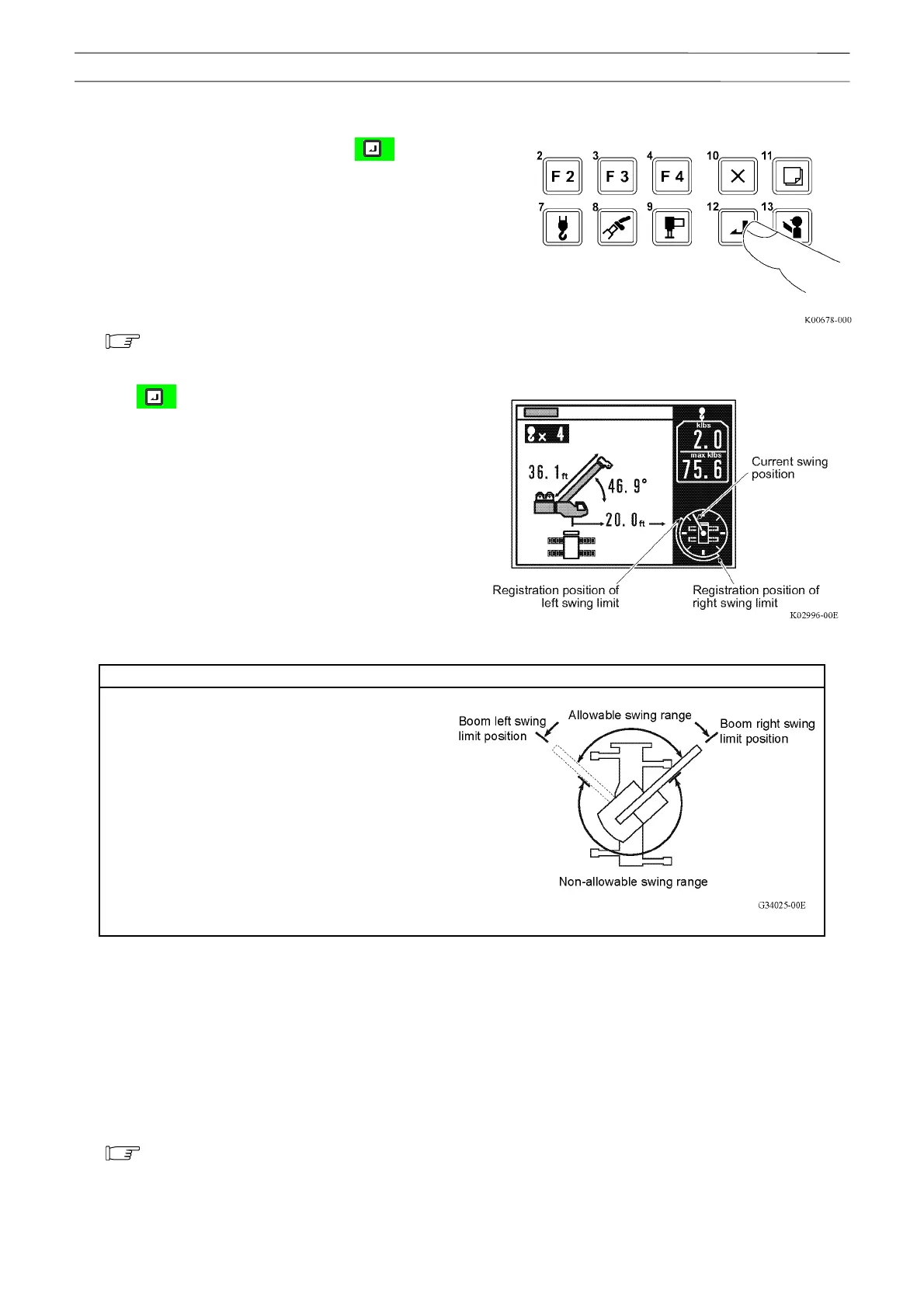

2. After you swing the boom to the desired position
where the limit is to be set, push the < > key (set).
• The corresponding limit indicator lamp flashes, and
the swing limit is registered.
• After registration is completed, the pop-up window
closes and the AML returns to the crane operation
state.
If you select the item with the limit value
already registered, remember that pushing the
< > key (set) cancels the registration of the
work range limit.
• The illustration on the right shows an example of
display, in which "swing limit" is registered.
NOTIC
Registration of swing range limit is the
function to set the allowable swing range.
Register it for both the left swing and right
swing.
3. Move the boom (jib) within the limit range.
• The indicator lamp turns to staying lit.
• When the boom reaches a registered swing limit, the indicator lamp flashes.
The swing operation automatically stops, and warning code appears on the display panel.
The AML built-in buzzer repeats short beeps for 3 seconds.
If you register the swing range limit only for one side (right or left), the crane does not operate
properly.
To Next Page
