Chapter A Chapter A
Components of AML System
4
W301-0411E

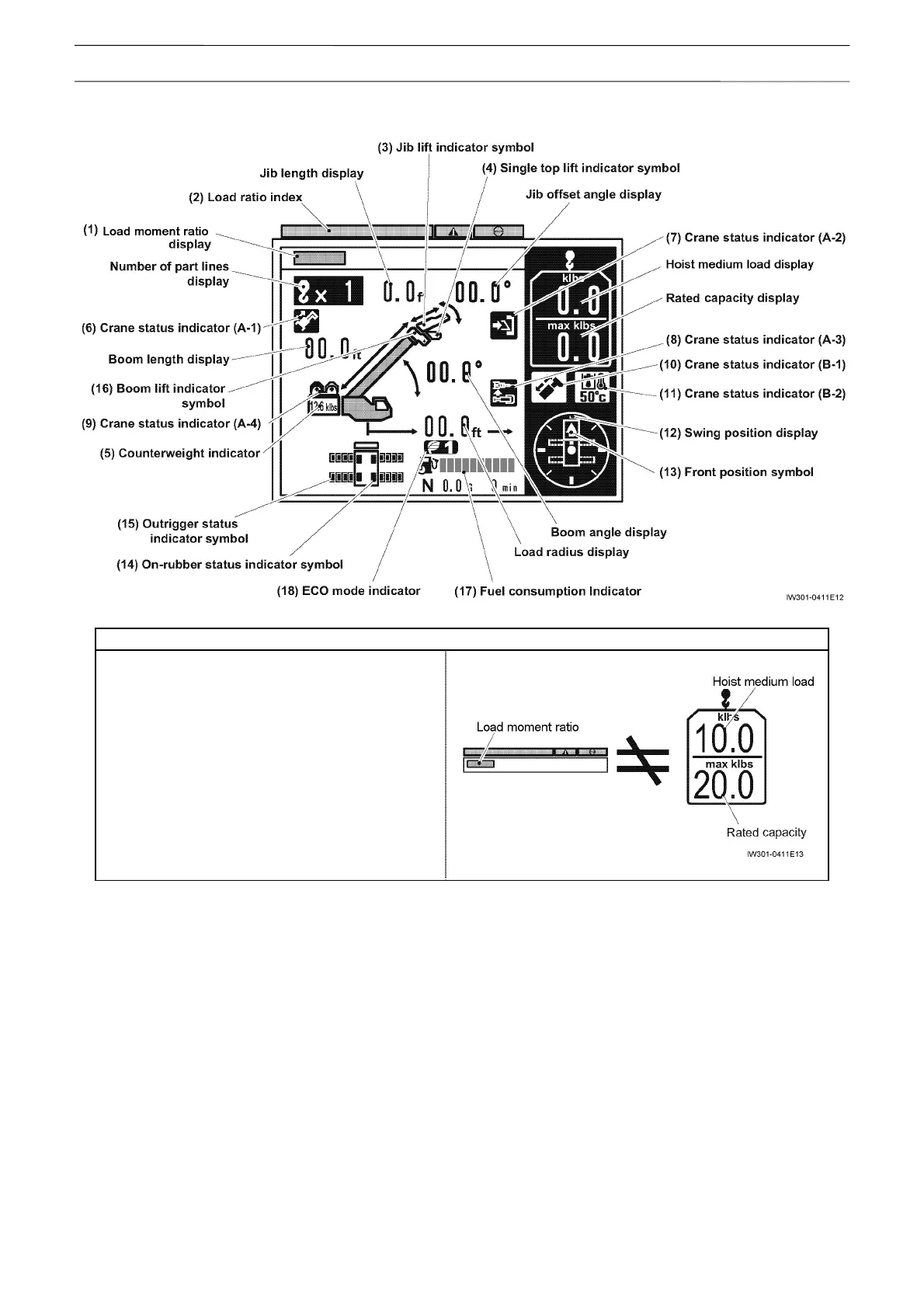

1.2.1 Display panel
NOTIC
• Load moment ratio is not a ratio of the
hoist medium load to the rated capacity.
Find the correct hoist medium load from
the rated capacity.
• The AML is not a hoist medium load
indicator. The hoist medium load
indication is a reference value, and not a
correct mass of the lifted load.
(1) Load moment ratio display
Shows the load moment ratio with a bar graph.
(2) Load moment ratio index
Serves as an index how critical the load moment ratio is by the bar graph; safe (green), warning (yellow),
orcritical (red).
(3) Jib lift indicator symbol
Appears when the jib lift is registered.
Flashes when the jib set state is registered to the load moment indicator.
