Chapter D
Chapter DAdjustment mode
151
W301-0411E
D-1 Operation Keys and Menu
1.1 Operation Keys

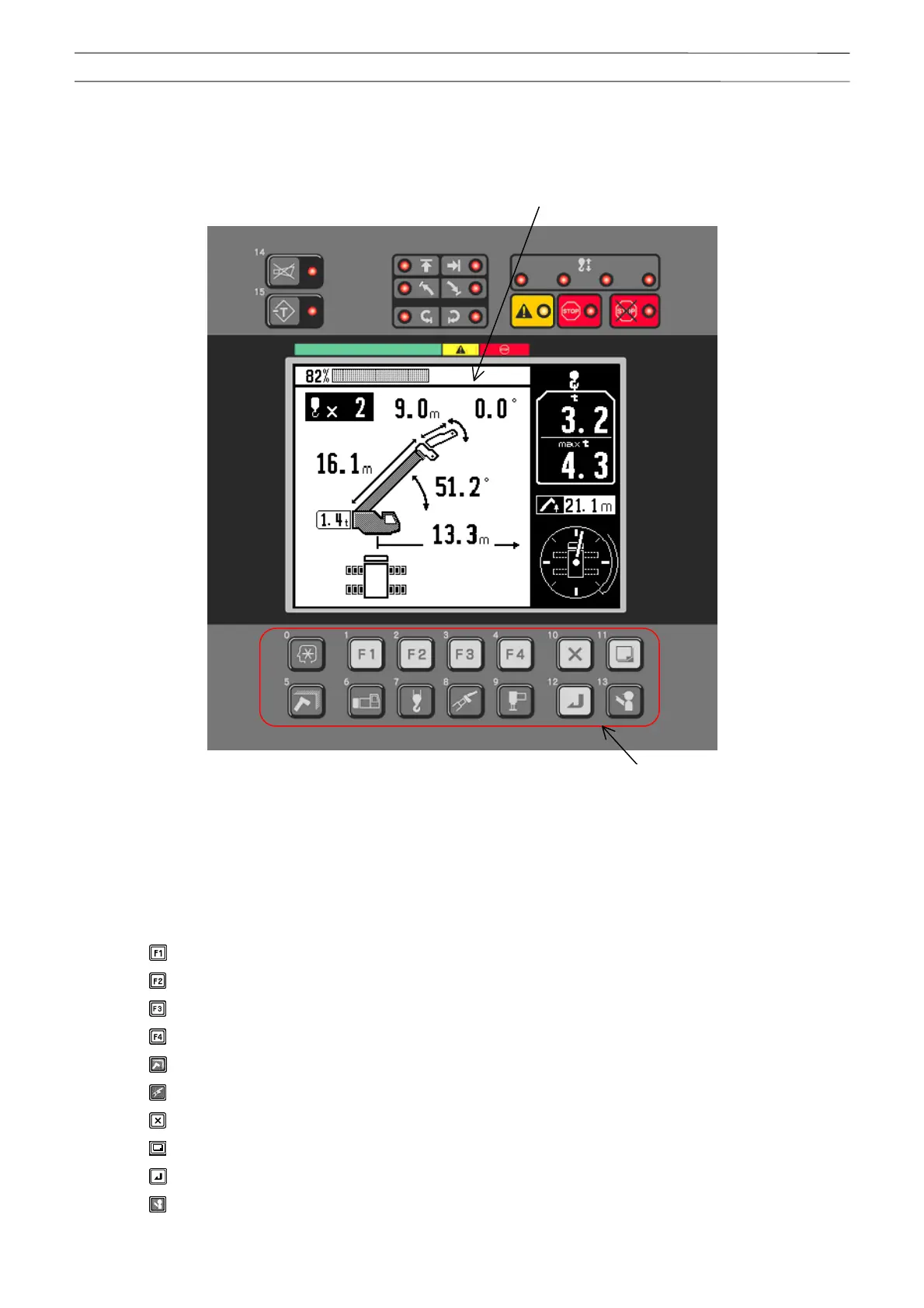

Fig. 1.1 AML display control panel
The following keys are used in the adjustment mode. On and after, < > in the descriptions indicates the operation
key.
Key No. Key name Function
1 <
Function 1>: Used with functions displayed on the adjustment mode screen with F1.
2 <
Function 2>: Used with functions displayed on the adjustment mode screen with F2.
3 <
Function 3>: Used with functions displayed on the adjustment mode screen with F3.
4 <
Function 4>: Used with functions displayed on the adjustment mode screen with F4.
5 <
Range limit>: Used when copying the adjustment value of precision adjustment.
8 <
Lift state>: Used to perform the compulsory unload at moment adjustment.
10 <
Cancel (Exit)>: Used to terminate the menu that is running.
11 <
Display change>: Used to change the displayed information.
12 <
Set>: Used to determine the menu selection or to register the adjustment value.
13 <
Check>: Used to erase the adjustment value for the precision adjustment.
Operation keys
