A-2 Input/Output Signals of the AML System
2.1 AML Control Unit (Pin Assignment)
Below are the names of the signals that are input to/output from the connectors, and the descriptions of their
functions. (Refer to 1.3.2 Panel outside view, from the back)

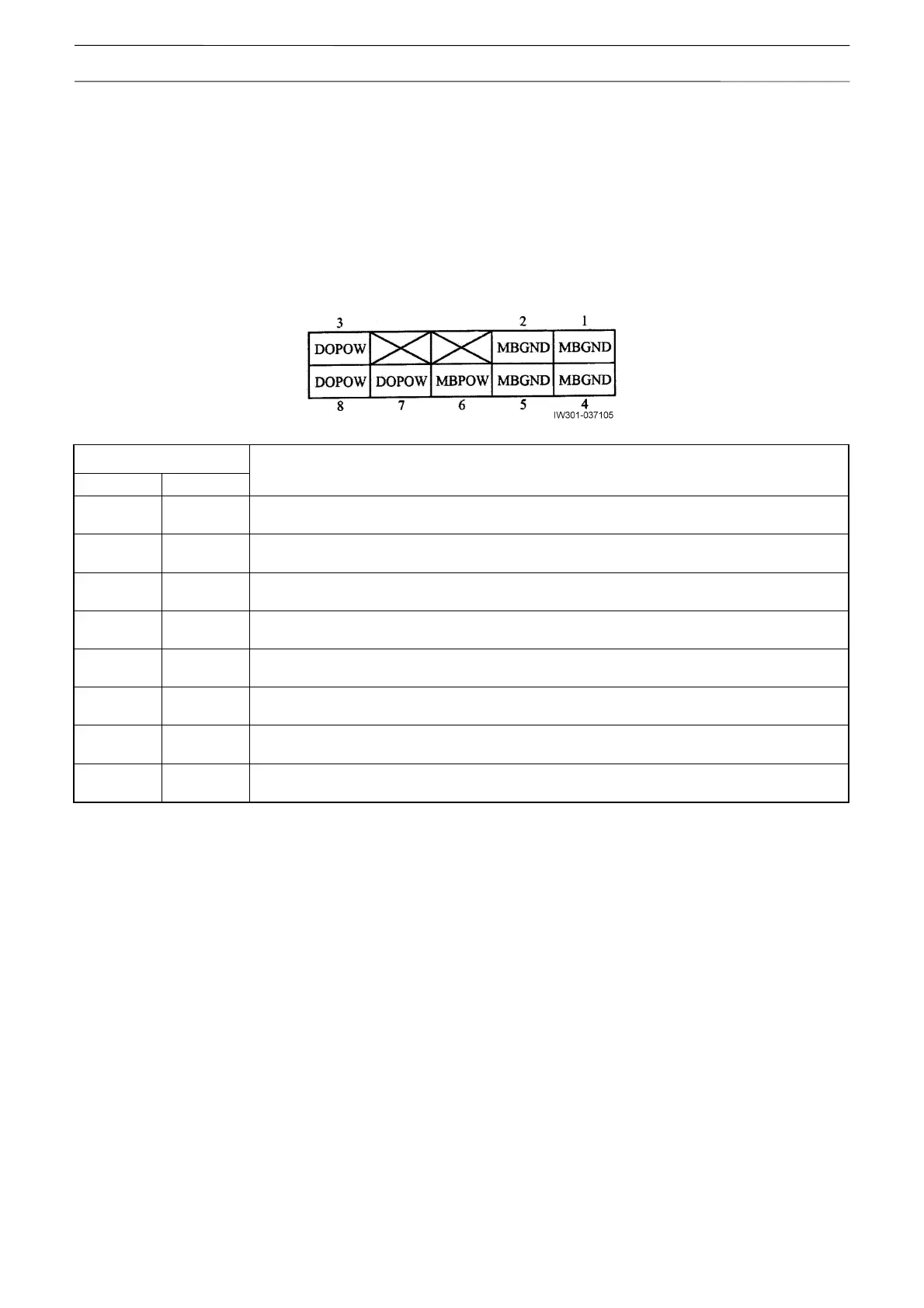

2.1.1 CN1 Connector (8-Pin)
CN1 connector
Pin No. Name
Signal names and functions
1 MBGND Signal name: Ground Output voltage: DC 0 V
2 MBGND Signal name: Ground Output voltage: DC 0 V
3 DOPOW Signal name: Power for circuit Output voltage: DC 24 V
4 MBGND Signal name: Ground Output voltage: DC 0 V
5 MBGND Signal name: Ground Output voltage: DC 0 V
6 MBPOW Signal name: Power for AML main body Input voltage: DC 24 V
7 DOPOW Signal name: Power for circuit Output voltage: DC 24 V
8 DOPOW Signal name: Power for circuit Output voltage: DC 24 V
