44
W301-0411E
Chapter B Chapter B
User Mode

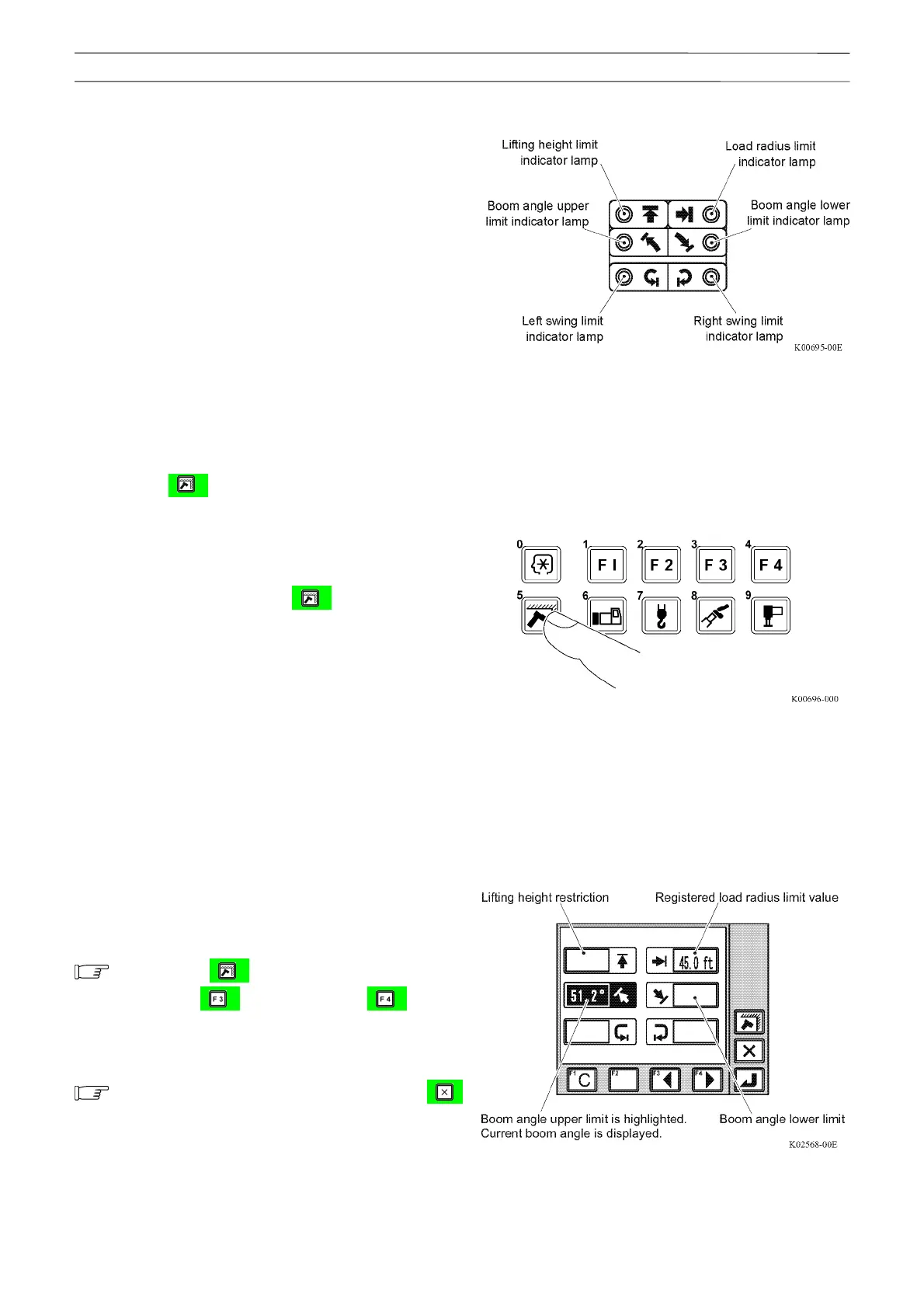

4.1.1 Display of Limit Function State
You can monitor the registered state of the work
range limit by the limit indicator lamps on the LED
display. The limit indicator lamp representing the work
range limit currently activated lights up. When the
crane reaches the limit and stops automatically, the
condition of the limit indicator lamp changes from
"staying lit" to "flashing".
4.1.2 Registering Boom Angle, Lifting Height, and Load Radius Limit
1. Push the < > key (working range limit) to select the
item to be registered.
• The pop-up window for work range limit registration
appears on the display panel.
• Every time you push the < > key (working range
limit), the item to be selected changes in the
following sequence.
1. Lifting height limit
2. Load radius limit
3. Boom angle upper limit
4. Boom angle lower limit
5. Left swing limit
6. Right swing limit
• The illustration on the right shows an example of
display where "load radius limit" is registered and
"boom angle upper limit" is selected.
Instead of the< > key (working range limit), you
can use the < > key (backward) or < > key
(forward) to change the display of the item to be
selected.
When you want to stop registration, push the < >
key (EXT). The pop-up window closes and the AML
returns to the state before start of the registration.
To Next Page
